Capacity: 300 & 500 gal
750 & 1,250 gal - Material: Liquid Brine
- Fits: 3/4 & 1-Ton Trucks
- #: TSA-300, TSA-500, TSA-750, TSA-1250
CUSTOMIZE YOUR SPRAYER FOR EFFICIENT ICE CONTROL PERFORMANCE

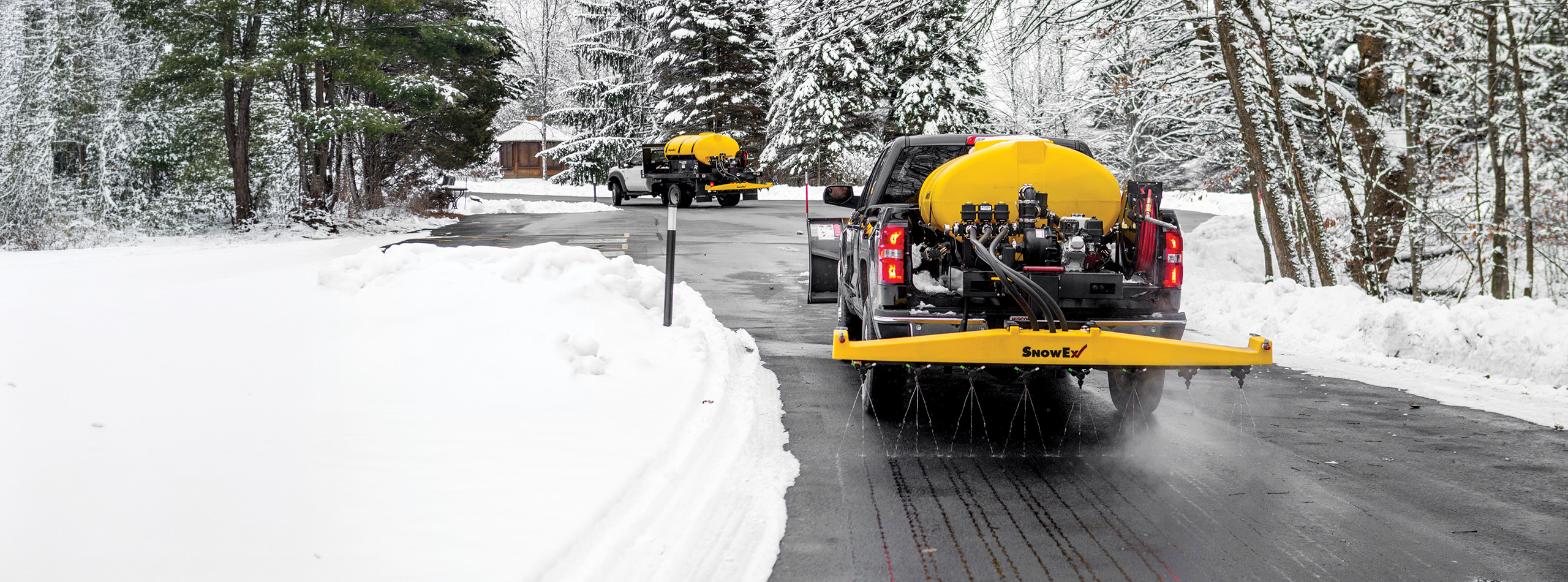

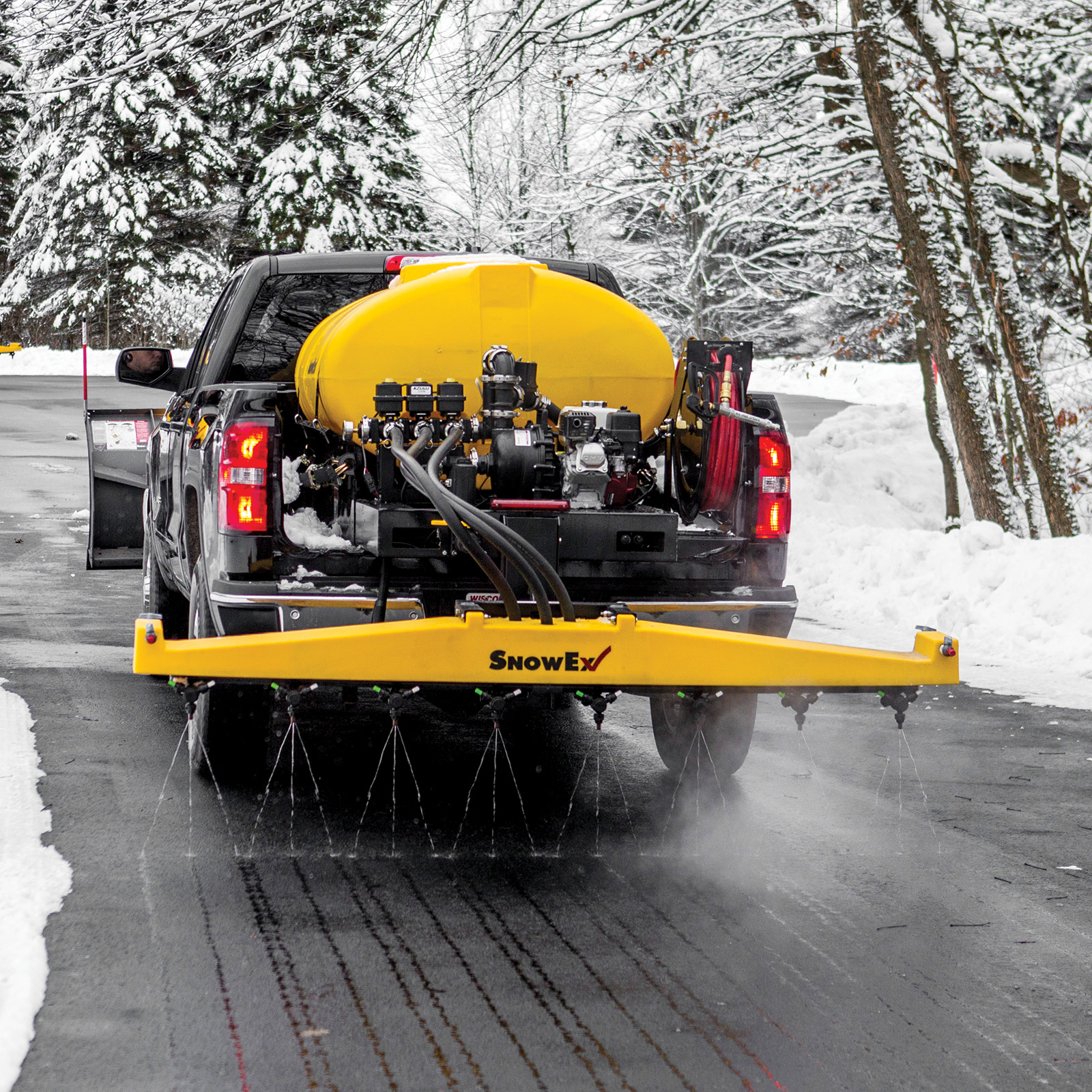

When maximizing efficiency, the SnowEx® Liqui Maxx™ is the ultimate sprayer for large commercial jobs. Whether you opt for the standard 3-zone control or the Deluxe system with automatic GPS-speed adjustment, you command precise liquid brine application up to eight feet wide. This system features an interchangeable tank, pump, and boom assemblies, allowing you to custom-build the perfect liquid sprayer for your vehicle. Invest in the Liqui Maxx for the custom ice control performance you need, ensuring your equipment scales alongside your business without wasting money on features you don’t use.
Compatible with Trucks
Unique Features
Showing 6 out of 7
Featured Accessories
Boom Nozzle Kits
Additional nozzle options are interchangeable for meeting target application rates up to 8 feet wide at an operating pressure between 30 and 40 psi.
Part Number
#78463
Grey
#78523
Blue
#78499
Black
Blast/Run Hold Remote Switch Box
Remote hand held pendant Blast/Run/Hold.
Part Number
#10776
Hose Reel Kit
Great for stairs, curbs or sidewalks, adds spot spraying capabilities to the unit. Bolts directly to the sprayer frame and includes spray wand with 100-foot hose.
Part Number
#HRK-200-1
Product Specs
Metric
| Models | TSA-300 | TSA-500 | TSA-750 | TSA-1250 |
|---|---|---|---|---|
| Capacity | 300 gal | 500 gal | 750 gal | 1,250 gal |
| Capacity | 1,135.6 L | 1,892.7 L | 2,839.1 L | 4,731.8 L |
| Vehicle Compatibility | ¾- or 1-Ton Pickup Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck |
| Vehicle Compatibility | ¾- or 1-Ton Pickup Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck |

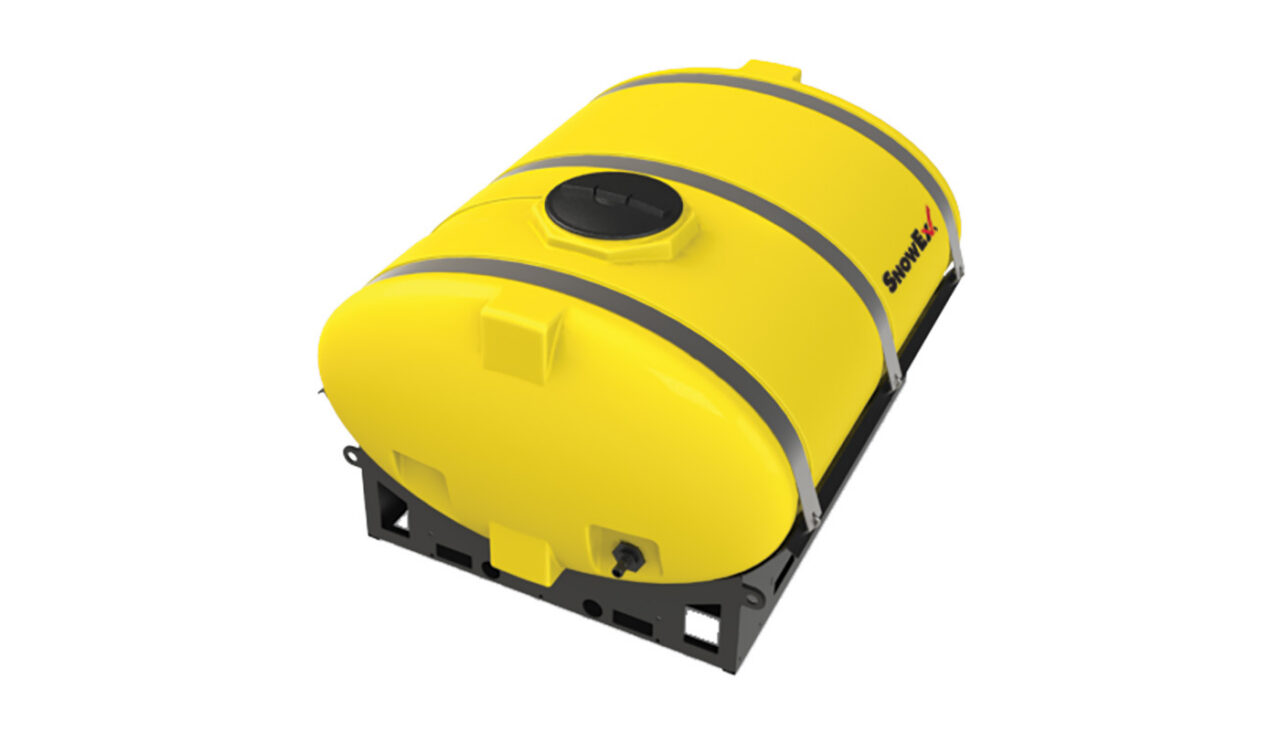

| Tank Part Number | TSA-300 | TSA-500 | TSA-750 | TSA-1250 |
| Tank Part Number | TSA-300 | TSA-500 | TSA-750 | TSA-1250 |
| Pump Part Number | HFS-100-2, HFD-200EX or HFD-200HYD | HFS-100-2, HFD-200EX or HFD-200HYD | HFS-100-2, HFD-200EX or HFD-200HYD | HFS-100-2, HFD-200EX or HFD-200HYD |
| Pump Part Number | HFS-100-2, HFD-200EX or HFD-200HYD | HFS-100-2, HFD-200EX or HFD-200HYD | HFS-100-2, HFD-200EX or HFD-200HYD | HFS-100-2, HFD-200EX or HFD-200HYD |

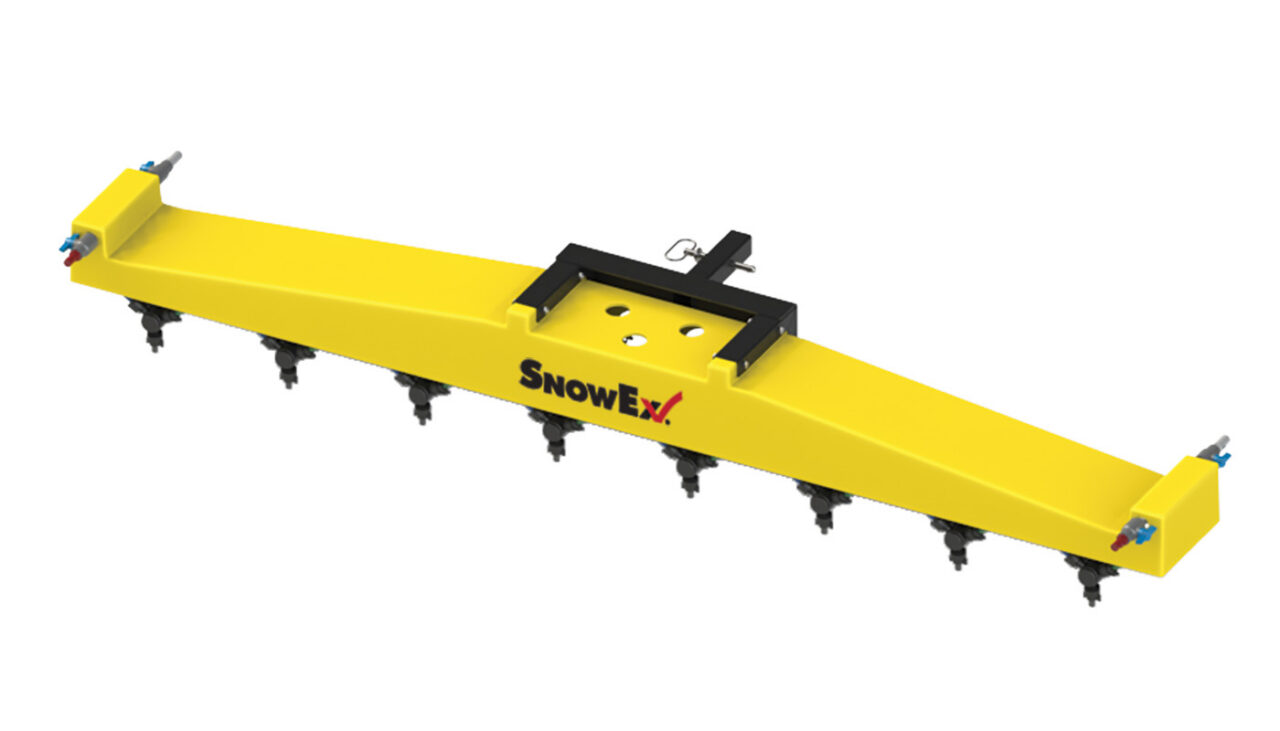

| Boom Part Number | PBA-300-1 | PBA-300-1 | PBA-300-1 | PBA-300-1 |
| Boom Part Number | PBA-300-1 | PBA-300-1 | PBA-300-1 | PBA-300-1 |
| Approx. Weight (Empty) | 320 lb | 475 lb | 740 lb | 860 lb |
| Approx. Weight (Empty) | 145.2 kg | 215.5 kg | 335.7 kg | 390.1 kg |
| Overall Dimensions (w/pump) (LxWxH) | 101" x 54" x 42" | 112" x 59" x 54" | 118" x 75" x 55" | 119" x 85" x 73" |
| Overall Dimensions (w/pump) (LxWxH) | 256.5 cm x 137.2 cm x 106.7 cm | 284.5 cm x 149.9 cm x 137.2 cm | 299.7 cm x 190.5 cm x 139.7 cm | 302.3 cm x 215.9 cm x 185.4 cm |
| Suggested Gross Vehicle Weight Rating (GVWR) | 8,500 - 10,000 lb | 14,000 - 16,000 lb | 16,000 - 19,000 lb | 19,500 - 26,000 lb |
| Suggested Gross Vehicle Weight Rating (GVWR) | 3,855.5 - 4,535.9 kg | 6,350.3 - 7,257.5 kg | 7,257.5 - 8,845.1 kg | 8,845.1 - 11,793.4 kg |
| Vehicle Class | Class 2B | Class 4 | Class 5 | Class 6 |
| Vehicle Class | Class 2B | Class 4 | Class 5 | Class 6 |

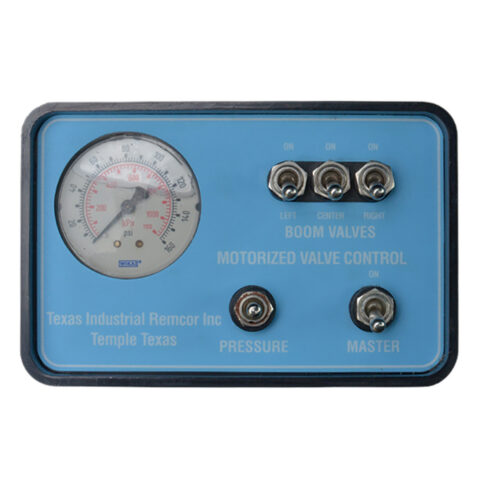

| Gas Motor/Standard Control (HFS-100) | Manual Start 5.5 hp HONDA®/On-off 3-zone control | Manual Start 5.5 hp HONDA®/On-off 3-zone control | Manual Start 5.5 hp HONDA®/On-off 3-zone control | Manual Start 5.5 hp HONDA®/On-off 3-zone control |
| Gas Motor/Standard Control (HFS-100) | Manual Start 5.5 hp HONDA®/On-off 3-zone control | Manual Start 5.5 hp HONDA®/On-off 3-zone control | Manual Start 5.5 hp HONDA®/On-off 3-zone control | Manual Start 5.5 hp HONDA®/On-off 3-zone control |

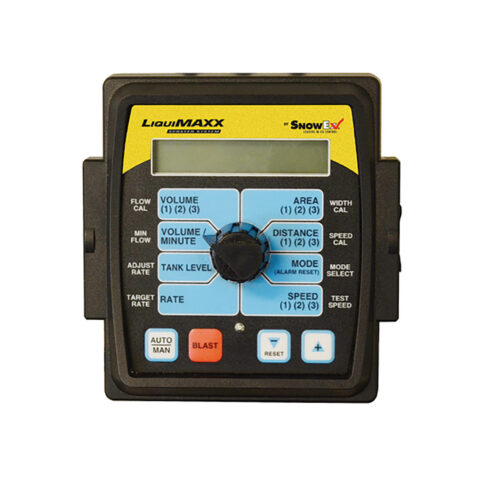

| Gas Motor/Deluxe Control (HFD-200EX) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) |
| Gas Motor/Deluxe Control (HFD-200EX) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) | Electric Start 5.5 hp HONDA®/Automatic, 3-zone controlled flow (GPS optional) |

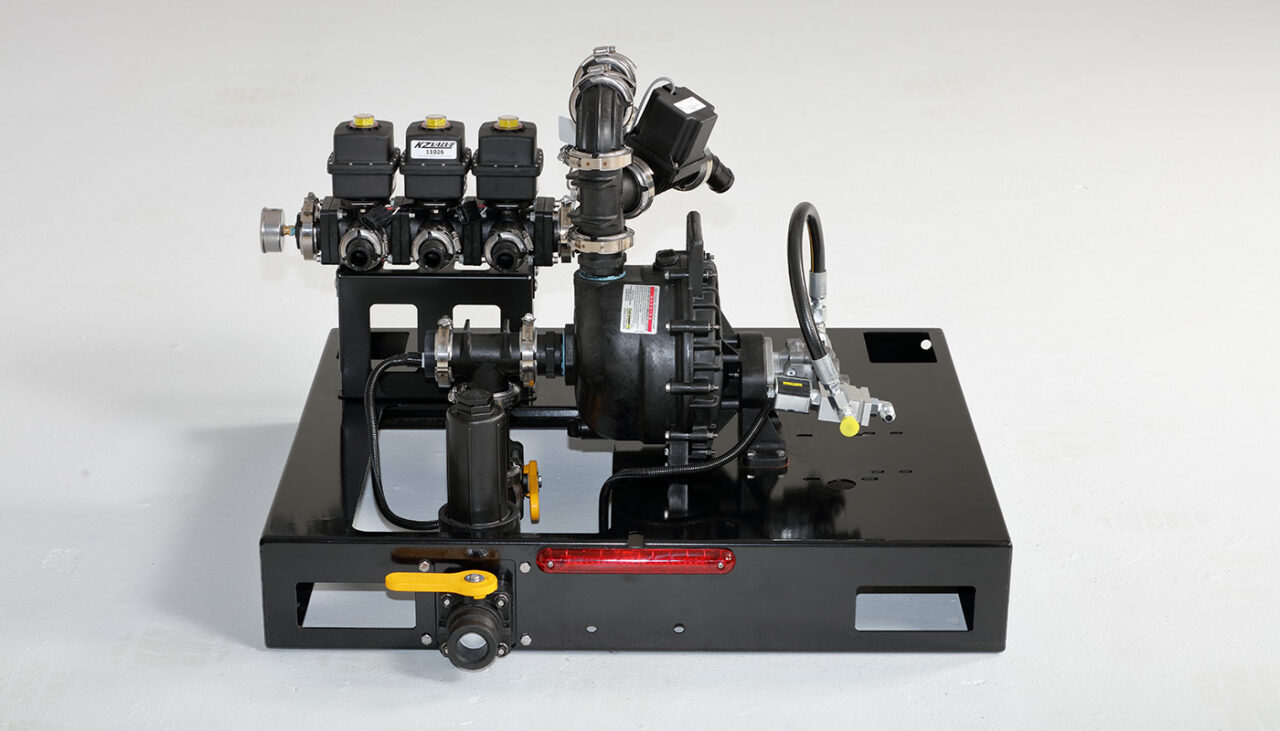

| Hydraulic Motor/Deluxe Control (HFD-200HYD) | Hydraulic with spool valve | Hydraulic with spool valve | Hydraulic with spool valve | Hydraulic with spool valve |
| Hydraulic Motor/Deluxe Control (HFD-200HYD) | Hydraulic with spool valve | Hydraulic with spool valve | Hydraulic with spool valve | Hydraulic with spool valve |
| Pump Frame | Powder coated steel with fork pockets | Powder coated steel with fork pockets | Powder coated steel with fork pockets | Powder coated steel with fork pockets |
| Pump Frame | Powder coated steel with fork pockets | Powder coated steel with fork pockets | Powder coated steel with fork pockets | Powder coated steel with fork pockets |

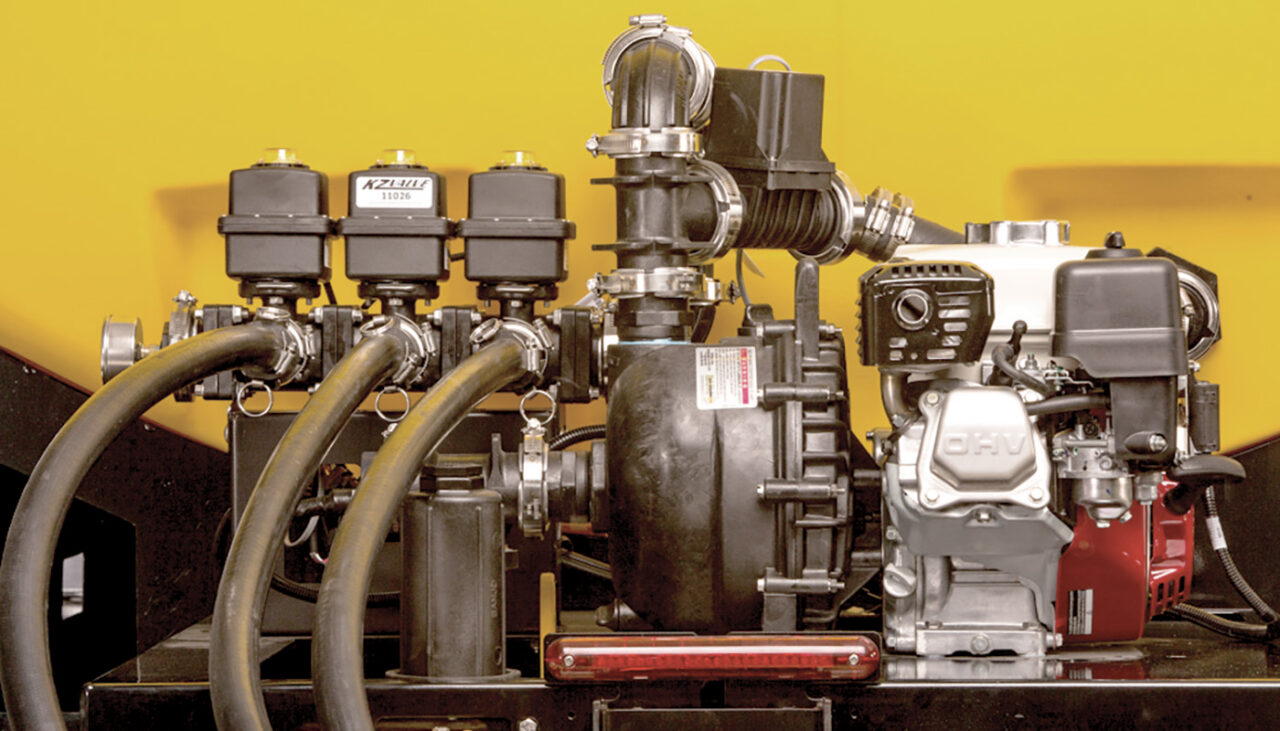

| Pump | 210 gpm Dry-Seal centrifugal circulation pump | 210 gpm Dry-Seal centrifugal circulation pump | 210 gpm Dry-Seal centrifugal circulation pump | 210 gpm Dry-Seal centrifugal circulation pump |
| Pump | 794.9 L/min Dry-Seal centrifugal circulation pump | 794.9 L/min Dry-Seal centrifugal circulation pump | 794.9 L/min Dry-Seal centrifugal circulation pump | 794.9 L/min Dry-Seal centrifugal circulation pump |
| Primary Valves | Electric ball valves | Electric ball valves | Electric ball valves | Electric ball valves |
| Primary Valves | Electric ball valves | Electric ball valves | Electric ball valves | Electric ball valves |
| Overall Width | 8' 2" | 8' 2" | 8' 2" | 8' 2" |
| Overall Width | 2.49 m | 2.49 m | 2.49 m | 2.49 m |
| Spray Width (boom only) | 8' | 8' | 8' | 8' |
| Spray Width (boom only) | 2.44 m | 2.44 m | 2.44 m | 2.44 m |
| Spray Width (w/ wing sprayer) | 24' | 24' | 24' | 24' |
| Spray Width (w/ wing sprayer) | 7.32 m | 7.32 m | 7.32 m | 7.32 m |

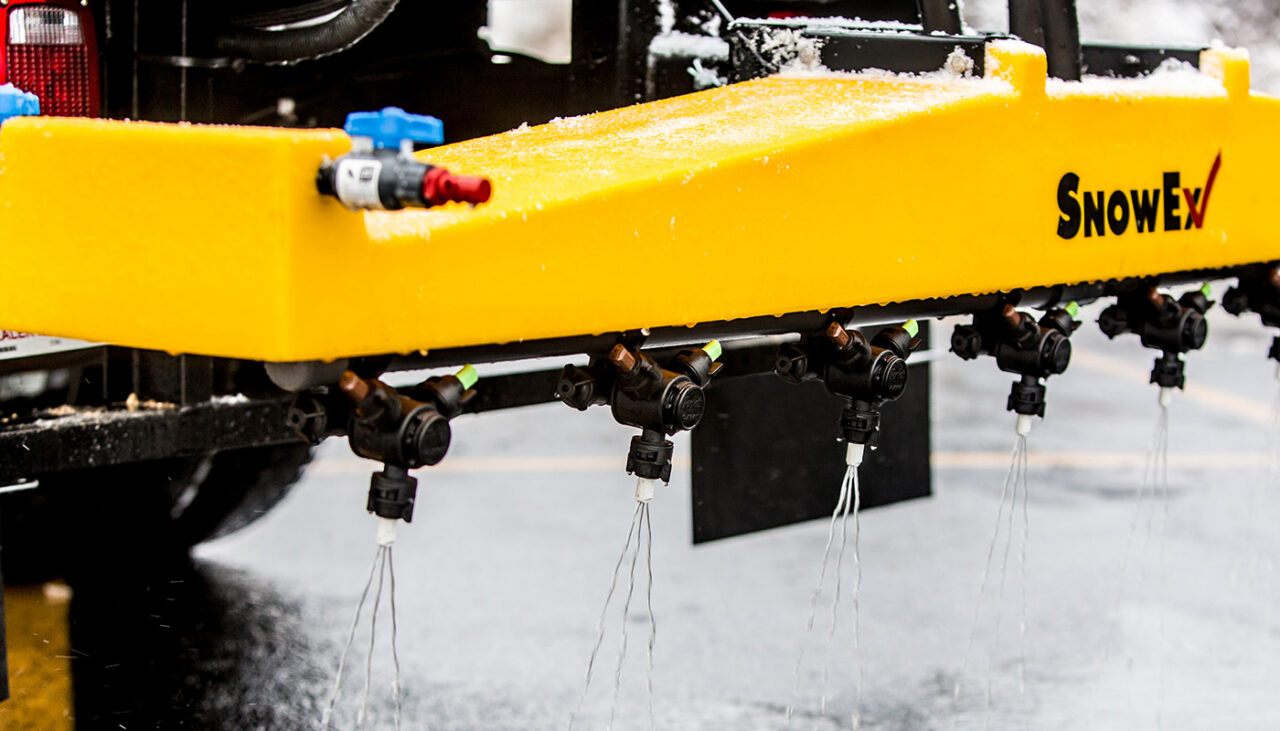

| Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles |
| Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles | Center Boom: 3 Triple Solid Stream Nozzles. Boom Ends: 2 Boomless Side Nozzles |
| Spraying Capacity | 10 to 60 gal/acre depending on vehicle speed | 10 to 60 gal/acre depending on vehicle speed | 10 to 60 gal/acre depending on vehicle speed | 10 to 60 gal/acre depending on vehicle speed |
| Spraying Capacity | 10 to 60 gal/acre depending on vehicle speed | 10 to 60 gal/acre depending on vehicle speed | 10 to 60 gal/acre depending on vehicle speed | 10 to 60 gal/acre depending on vehicle speed |
Product Literature & Support Manuals
Material Compatibility
Material Compatibility
CAUTION: Viscous or tacky substances or those containing solid particles are not recommended as these will clog pumps and nozzles.
WARNING: DO NOT USE any products containing petroleum or petroleum by-products of any kind. These destroy seals and will void warranty.
Liqui Maxx™ Photo Gallery
