Special Order Only

POWER PUSHER™
TRACE™ Edge Technology
Fixed-Wing Pusher Plow

Quick Specs

Select a model:

8' x 30" Blade Size
2,658 lb Approx. Weight (Without Mount)

Fits: Skid-Steers, Tractors & Wheel Loaders

Does this Plow fit my vehicle?

Verify compatibility and part number information

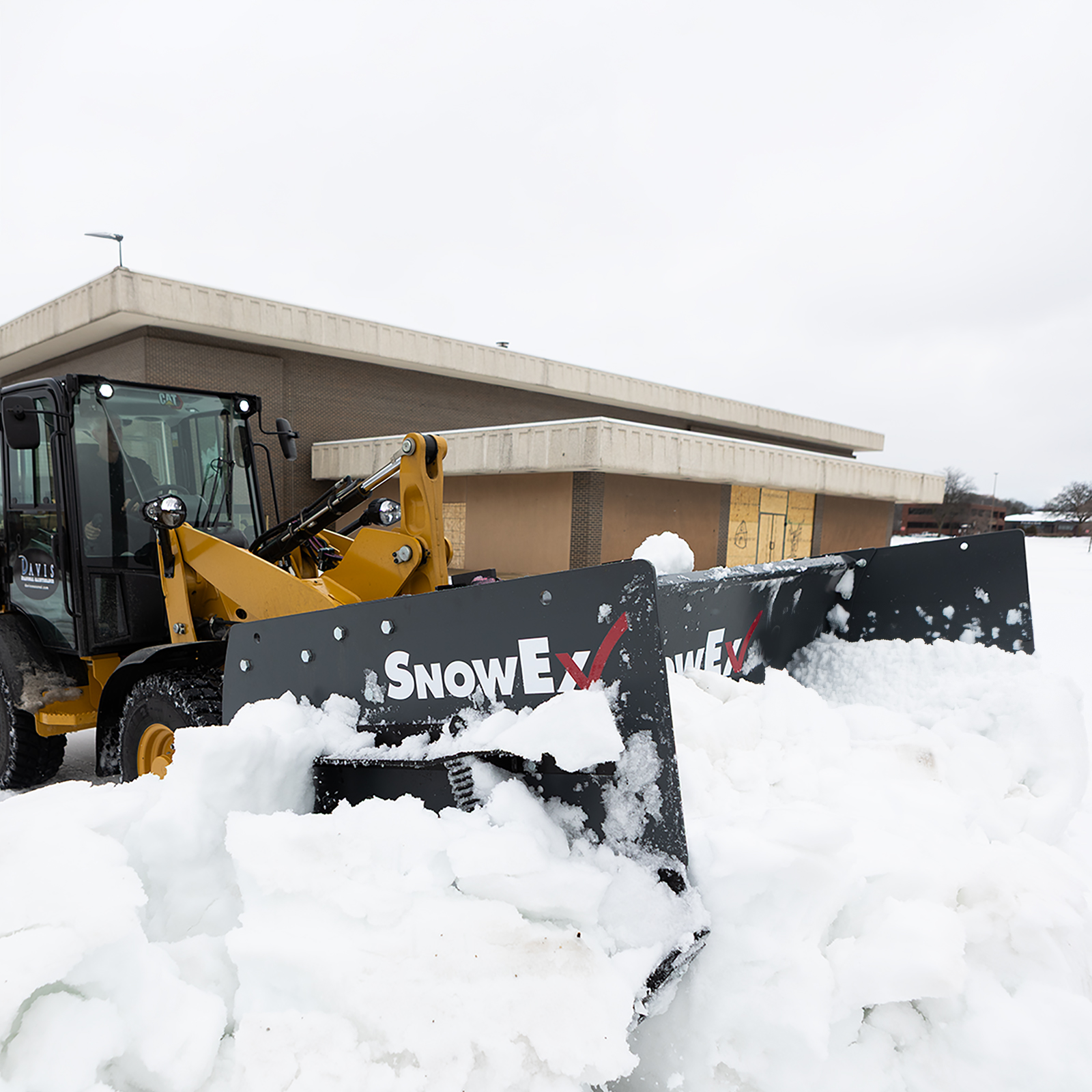

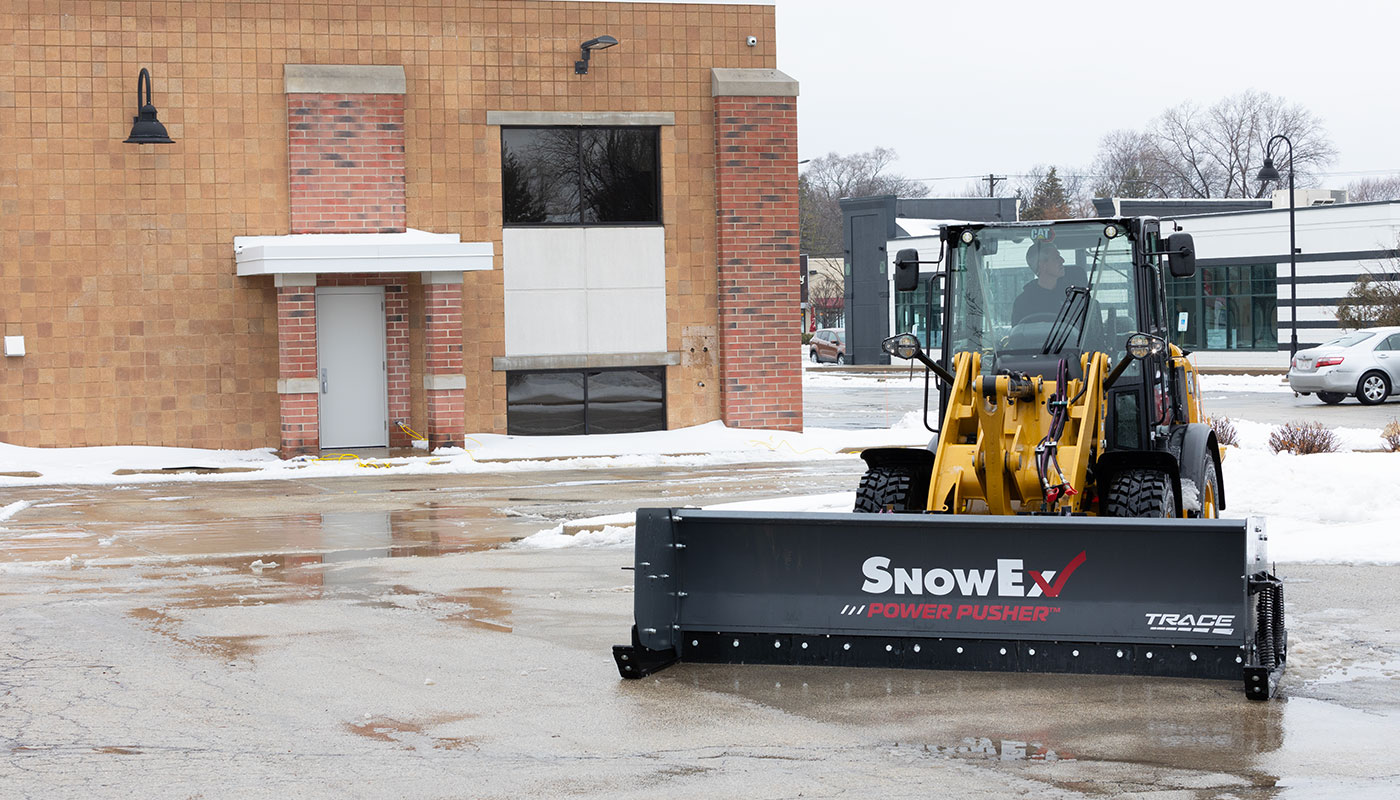

No Trace of Snow Left Behind

When you commit to clearing a lot, your clients expect to see pavement. The SnowEx^® POWER PUSHER™ fixed wing pusher plow is your go-to for maximum efficiency with zero fuss. This pusher moves massive amounts of snow and scrapes down to the pavement, so you can save time and money on salting. Its TRACE™ edge technically allows its independent 2-foot sections to follow the contours of the pavement to remove as much snow as possible with every pass. A simple, fixed-wing design means you can clear lots fast with limited moving parts to strand you in the early morning hours.

Compatible with Skid-Steers, Tractors & Wheel Loaders

Unique Features

What Sets POWER PUSHER™ (TRACE™) Apart

Pusher Construction

30″, 36″, and 42″ tall pushers available in 8′, 10′, 12′, 14′ & 16′ widths
2′ cutting edge sections made of high-carbon steel with carbide inserts (TRACE)
12-gauge, powder-coated steel
2′ cutting edge sections made of high-carbon steel with carbide inserts (TRACE)

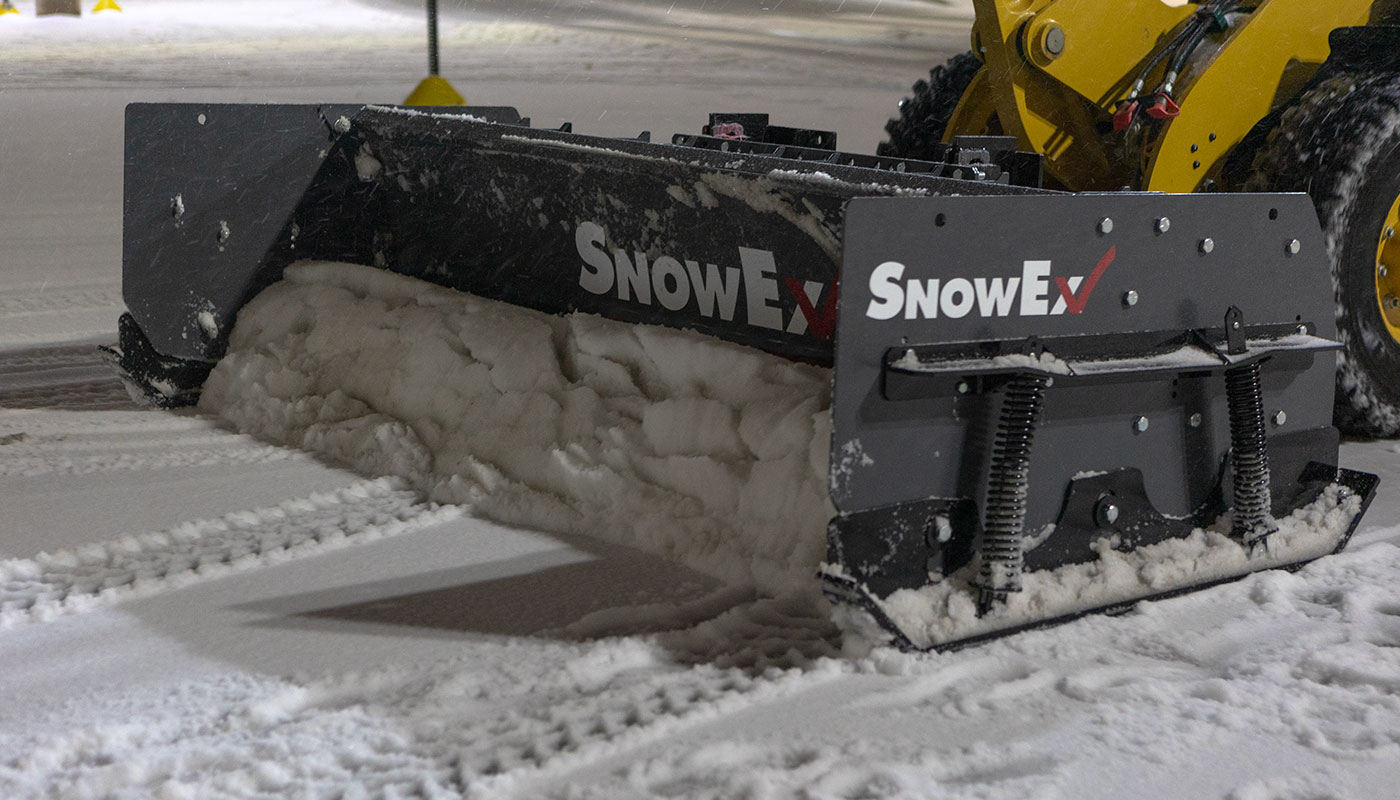

Aggressive 84-degree attack angle ensures a clean scrape and back drag

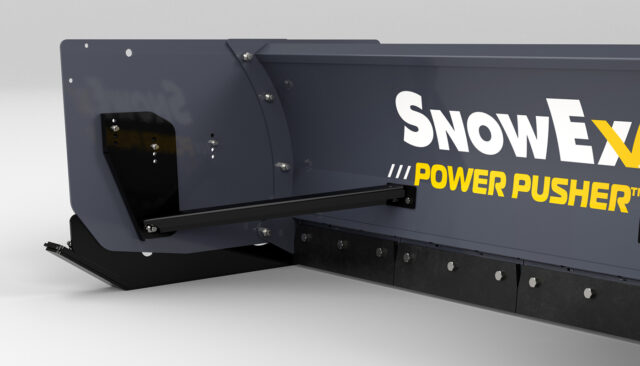

Structural Reinforcement

2 vertical ribs (per 2’ section) eliminate blade twisting and reduce stress on pusher assembly
2 reinforced horizontal tubes connect the ribs and provide exceptional torsional strength and rigidity

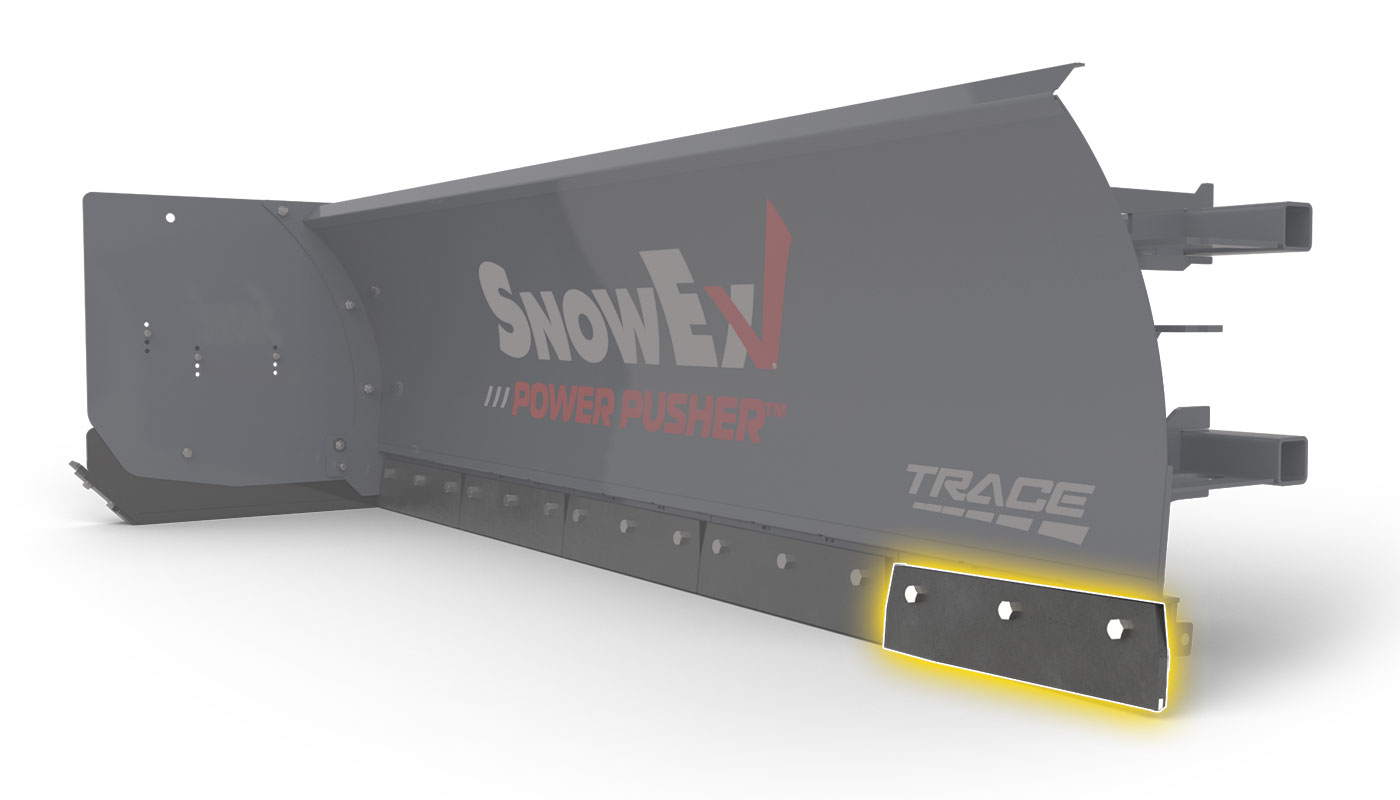

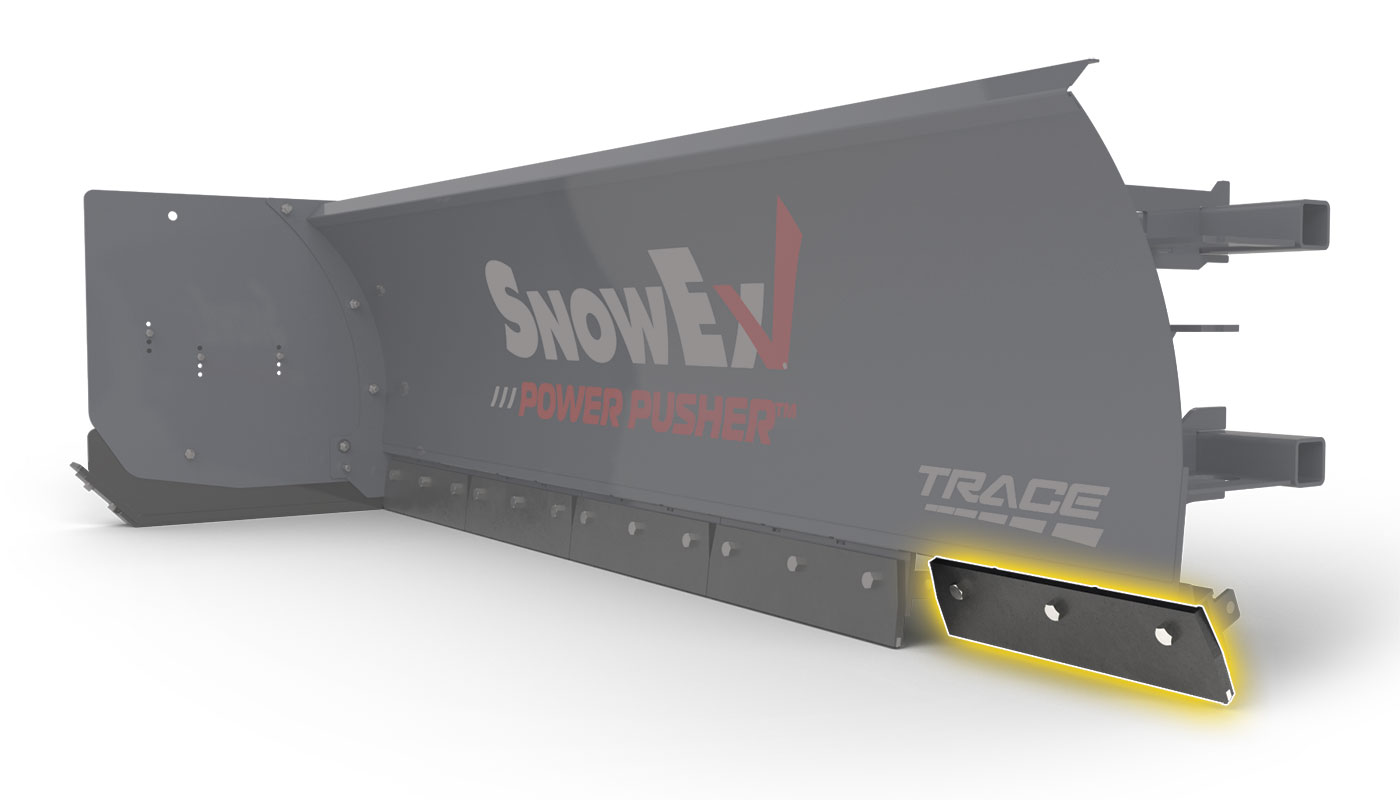

2’ cutting edge sections independently raise, oscillate, and trip

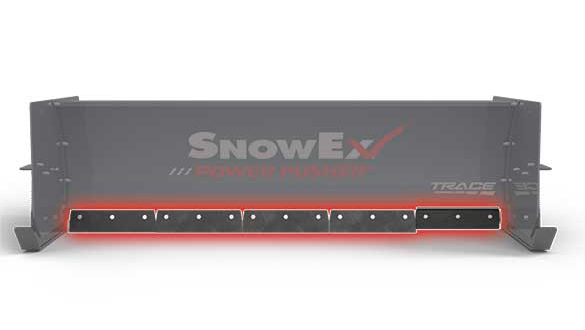

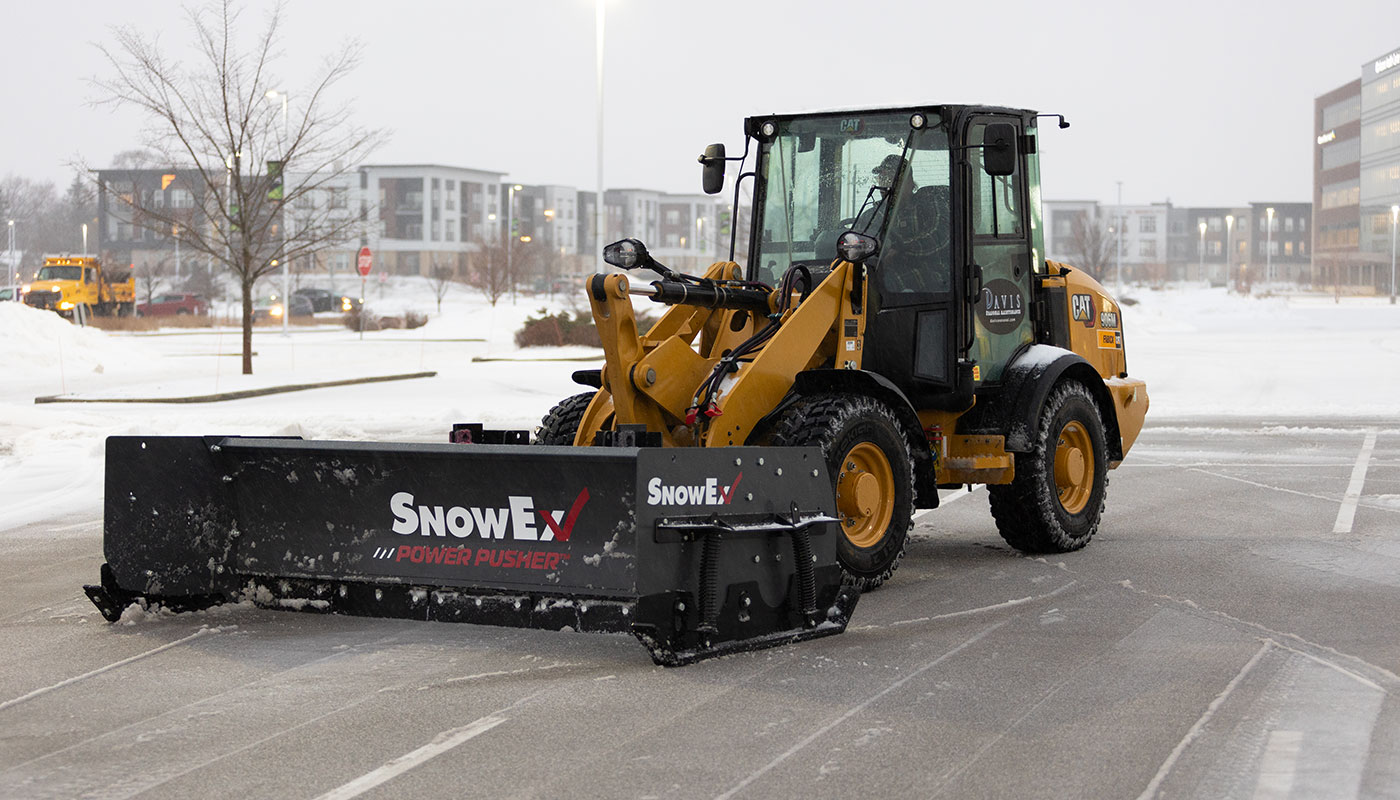

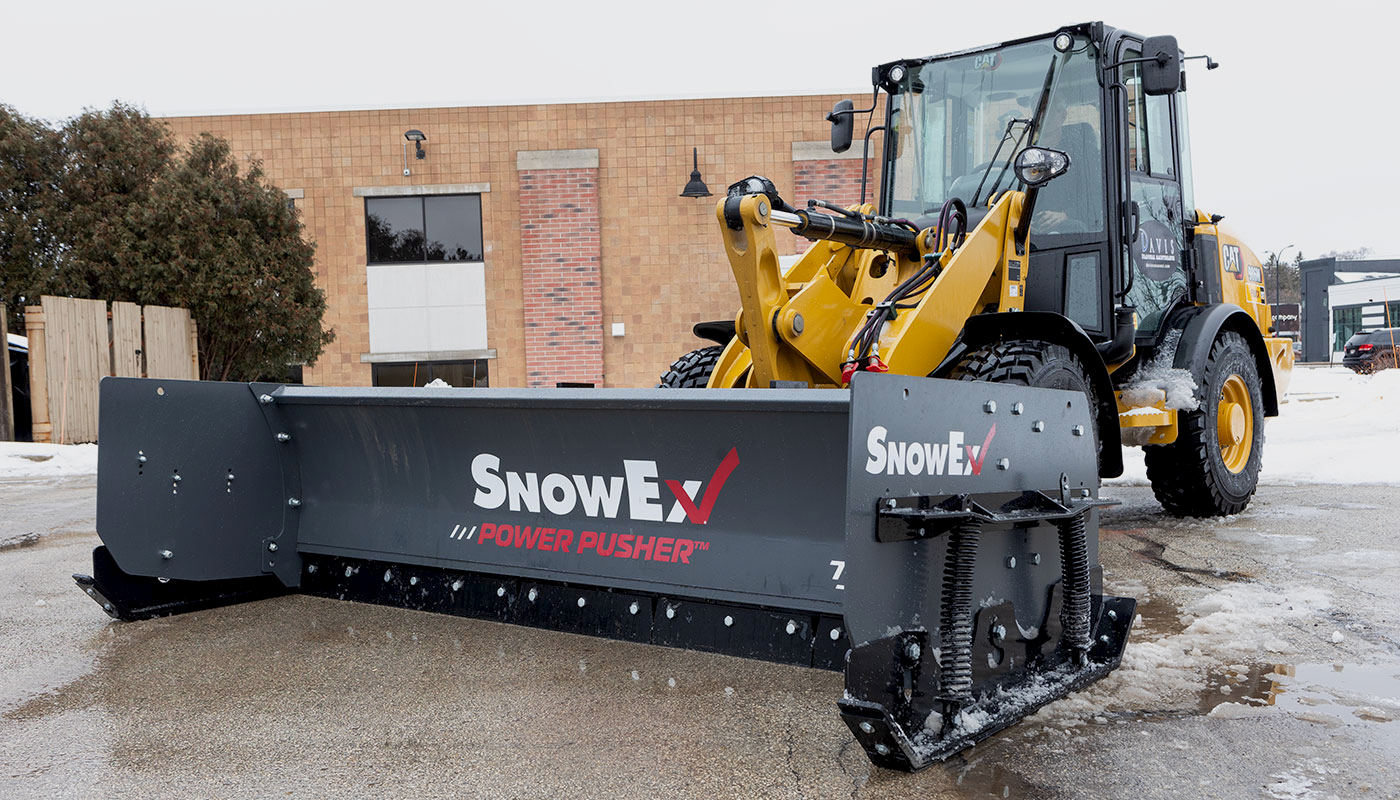

TRACE Edge Technology

TRACE Edge Technology

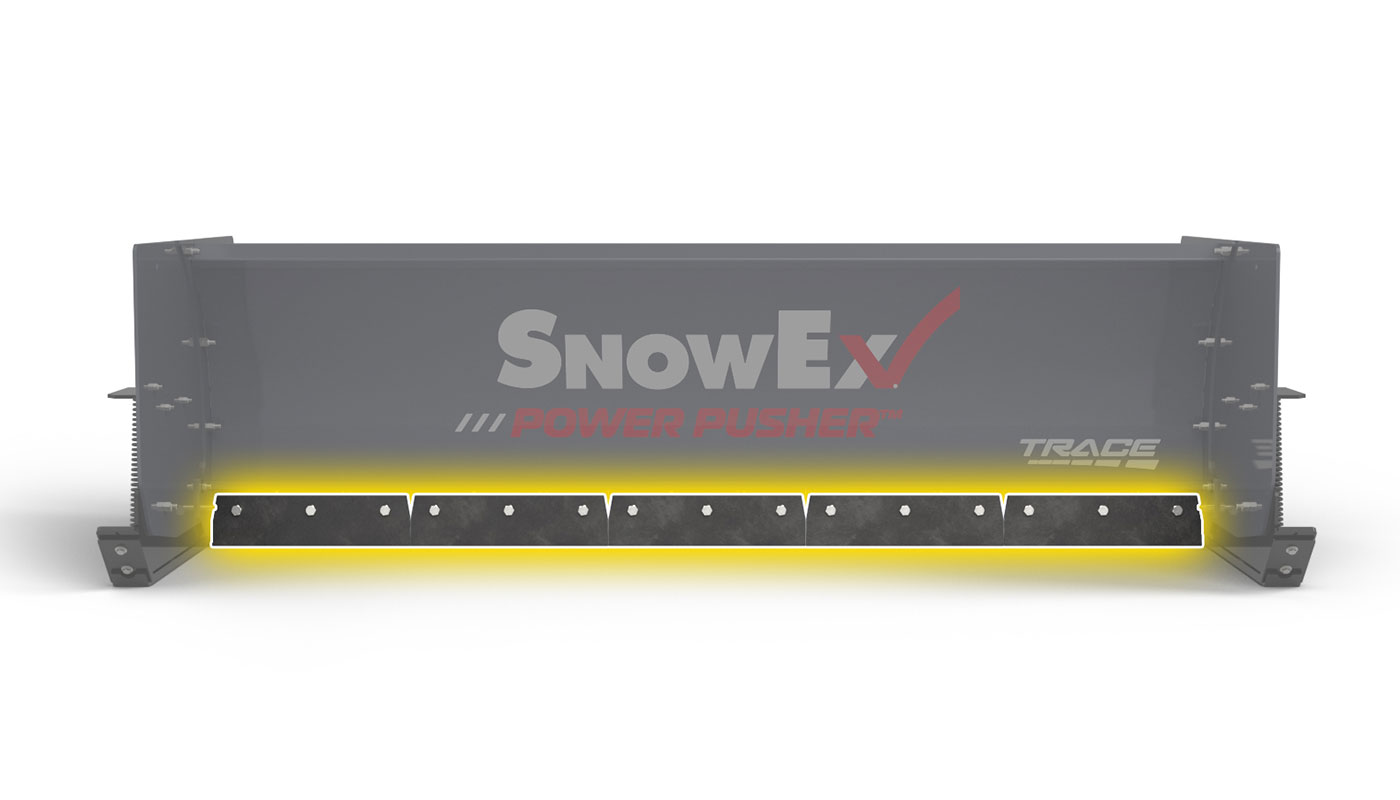

The terrain-response advanced cutting edge is comprised of independent, 2′ sections that raise, oscillate, and trip to accommodate contours and obstacles in the plowable surface. Working together, the sections remove more snow, reducing the amount of salt required. Two greasing locations allow the operator to keep the components well lubricated for maximum performance.

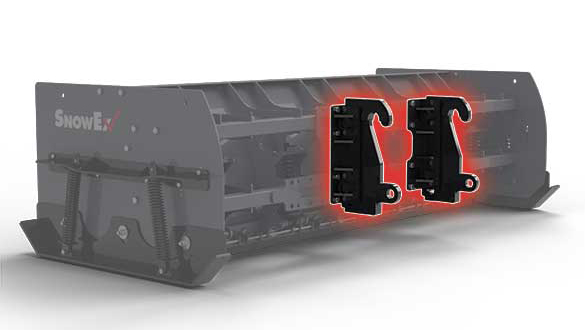

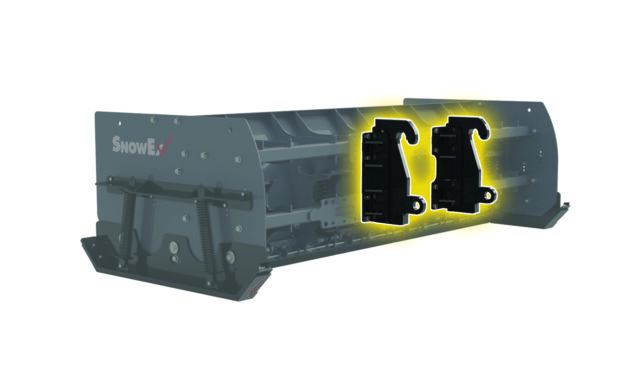

Common Attachment Plate

A common attachment plate with a floating coupler makes installation easy with a wide variety of equipment and machinery, including skid-steers, wheel loaders, backhoes, and tractors. The floating coupler reduces negative down pressure from the vehicle, protecting against premature wear of the pusher cutting edge and components.

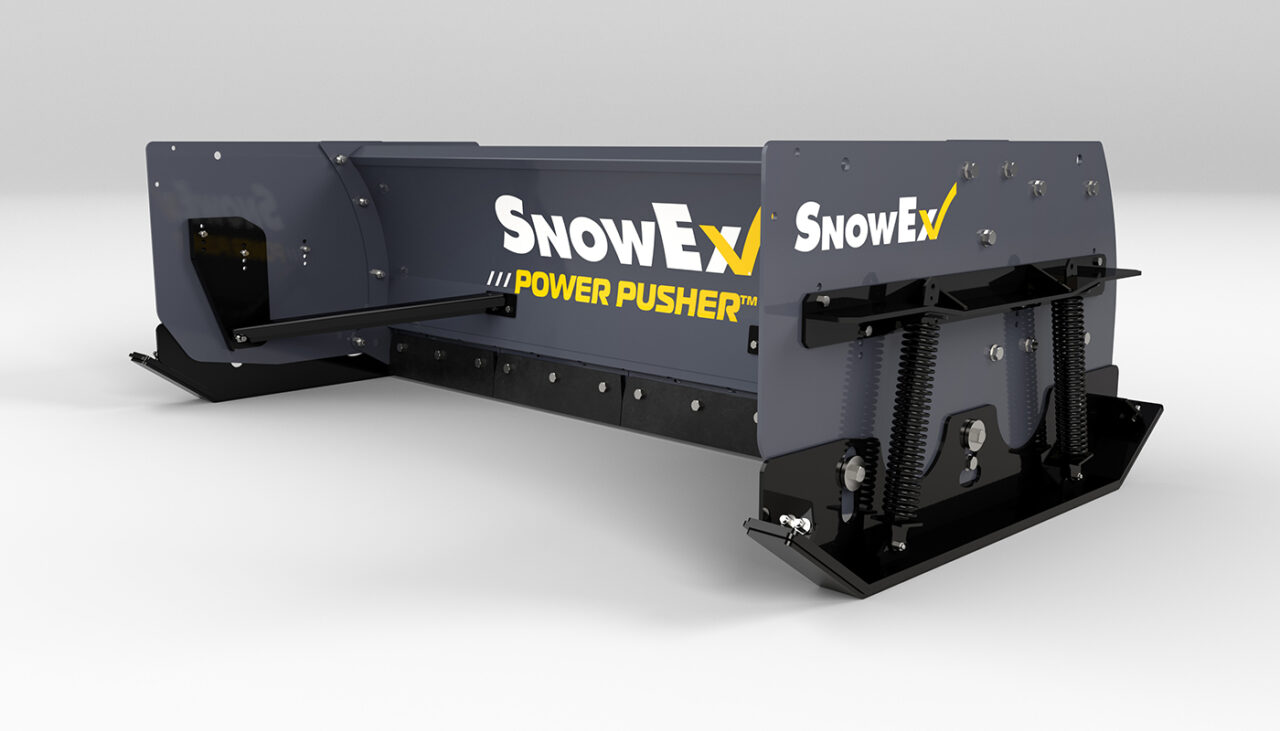

Easy Operation

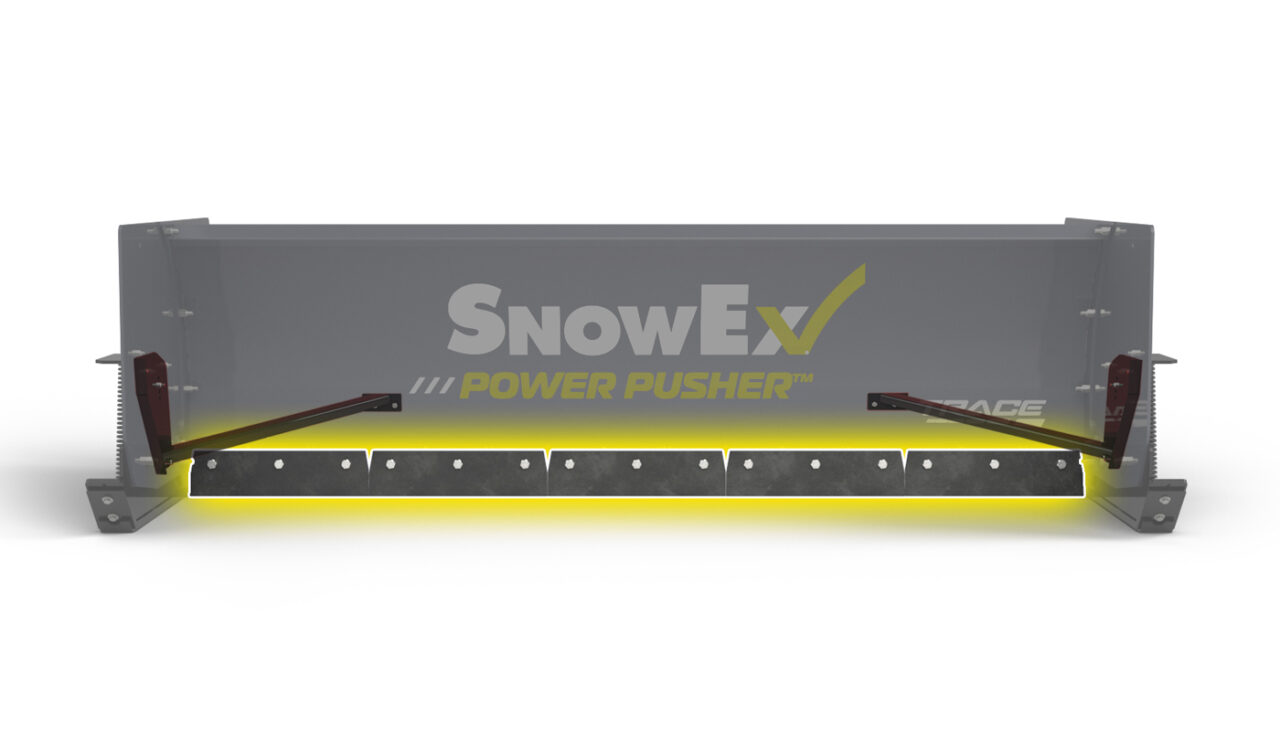

3/4" Cutting Edge With Carbide Inserts

3/4" Cutting Edge With Carbide Inserts

The POWER PUSHER plow withstands the most grueling commercial snow removal conditions. Each 2′ section comes standard with a 3/4″ cutting edge with carbide insert that extends the life of a high-carbon blade up to 20 times. And each section uses the same part number for easy replacement. No need to replace the full cutting edge, only the sections that show wear.

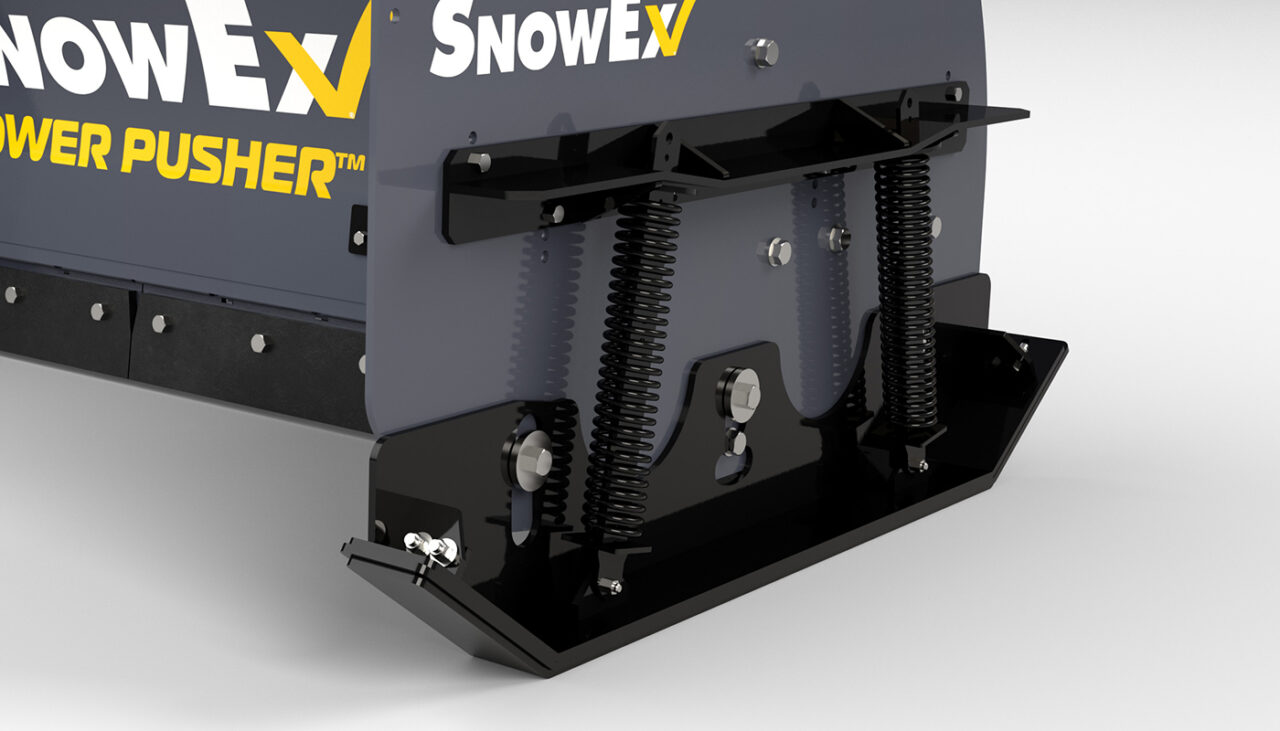

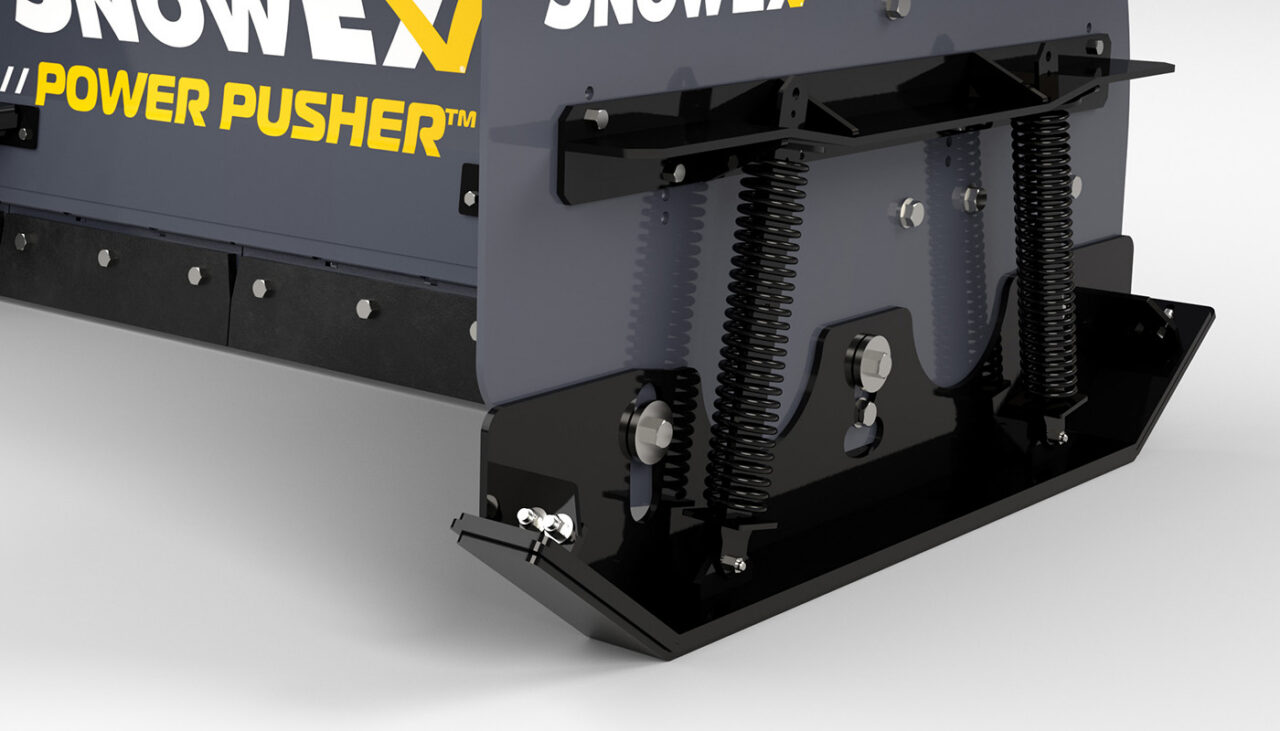

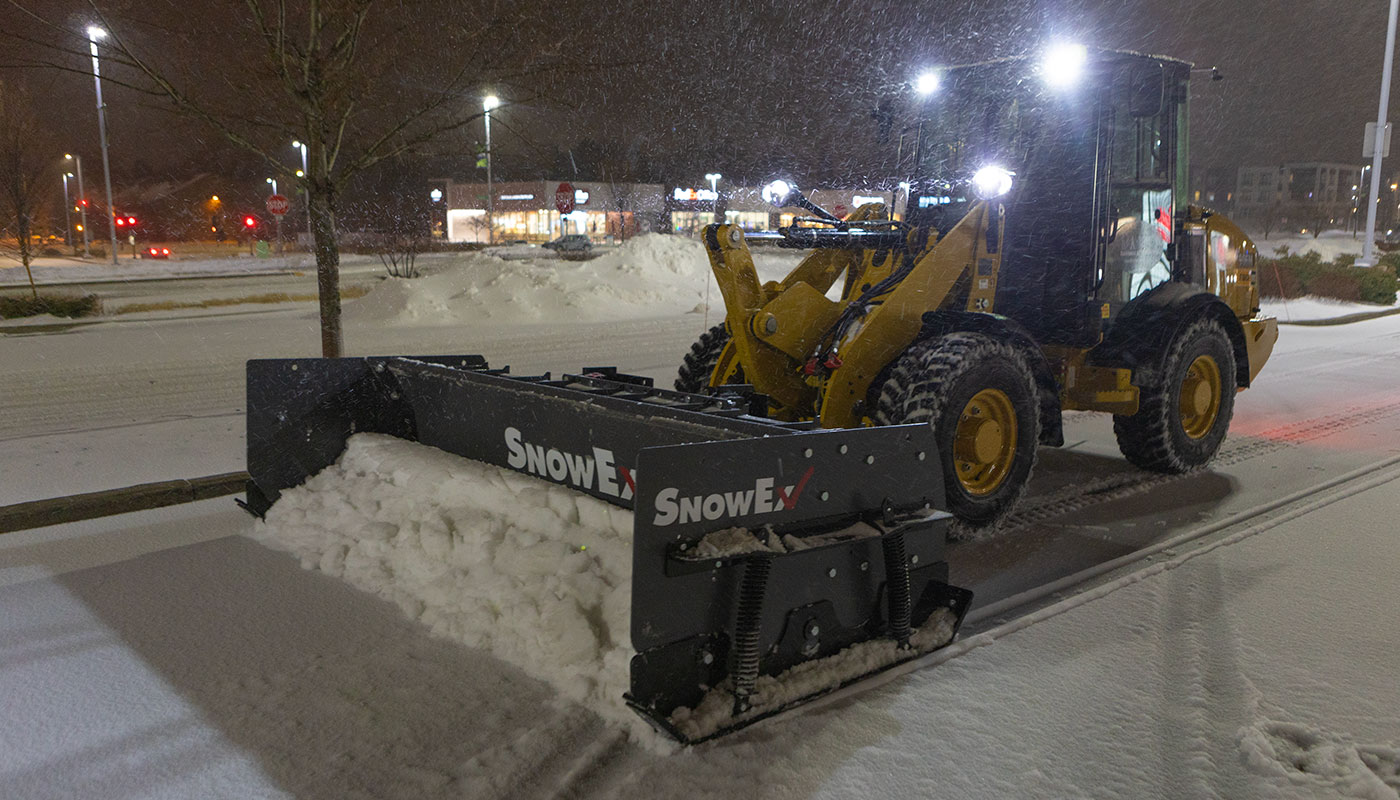

Self-Leveling Side Plates With Reversible, Bolt-On Shoes

self leveling side plate and reversible shoe on power pusher plow

Self-Leveling Side Plates With Reversible, Bolt-On Shoes

The side plates ensure the TRACE edge remains in direct contact with the plowable surface. The reversible, bolt-on shoe makes serviceability easy, allowing you to use both edges of the shoe before replacing. The bolt-on design makes replacement in the field possible with a ¾” socket, ratchet, and wrench.

Universal Features

Every SNOWEX snowplow includes

POWERCOAT Finish

Our high-performance, multi-stage powder coat system provides a long-lasting, maintenance-free finish.

Accessories

View All Accessories

A set of heavy-duty metal chains, hooks, shackles, and a lever binder arranged on a white background, commonly used for securing cargo or towing in industrial settings.

Binder Kit

Part Numbers

Part Number

#72042

For All Models

For safety and stability, a binder kit (or sometimes known as a chain kit) is highly recommended when plowing with the bucket still attached to the loader. The binder kit secures each side of the plow to the bucket, so it moves in sync. This can keep the plow from torqueing off when encountering an obstacle or pushing snow into a pile and backing up.

Back Drag Edge

Part Numbers

Part Number

#85733

For 8' Models

#85734

For 10' Models

#85735

For 12' Models

Ensure a clean scrape every time when back dragging snow. Built to be as rugged and durable as every other component of your pusher plow. Constructed of durable polyurethane and steel mounting components for simple installation.

Extreme Wear Shoe Kit

Part Numbers

Part Number

#89940

For All Models

Made of AR400 steel (adopted from municipal applications), this reversible bolt-on shoe kit ensures the TRACE edge remains in direct contact with the plowable surface. Helping it glide over gravel and dirt at the correct height. The AR400 steel protects your plow, the road, and extends cutting edge and base angle wear when plowing rocky or abrasive surfaces.

Specifications

Selecting a model updates product features and specs below.

Metric

Specification	31612-3	31608-2	31614-3	31610-2	32821-3	32192-3	32824-3	32194-3	32826-3	32196-3
Blade Size	8' x 30"	8' x 36"	10' x 30"	10' x 36"	12' x 30"	12' x 42"	14' x 30"	14' x 42"	16' x 30"	16' x 42"
Approx. Weight (Without Mount)	2,658 lb	2,753 lb	2,895 lb	2,947 lb	3,075 lb	3,322 lb	3,442 lb	3,791 lb	3,676 lb	3,980 lb
Application Weight (Max Operating Weight)	8,000 lb	10,000 lb	9,000 lb	12,000 lb	25,000 lb	25,000 lb	25,000 lb	30,000 lb	25,000 lb	36,000 lb
Blade Width	8'	8'	10'	10'	12'	12'	14'	14'	16'	16'
Blade Height	30"	36"	30"	36"	30"	42"	30"	42"	30"	42"
Side Plate Width	36"	36"	36"	36"	36"	36"	36"	36"	36"	36"
Side Plate Height	30"	36"	30"	36"	30"	42"	30"	42"	30"	42"
Moldboard Radius	27"	27"	27"	27"	27"	46"	27"	46"	27"	46"
Approx. Snow Capacity	75 cu ft	108 cu ft	94 cu ft	135 cu ft	113 cu ft	219 cu ft	132 cu ft	255 cu ft	151 cu ft	291 cu ft

Specification	31612-3	31608-2	31614-3	31610-2	32821-3	32192-3	32824-3	32194-3	32826-3	32196-3
Moldboard Options	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel	Powder-Coated Steel
Blade Type	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher	Pusher
Vehicle Compatibility	Skid-Steer	Tractor / Wheel Loader	Skid-Steer	Tractor / Wheel Loader	Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors	Wheel Loader	Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors	Wheel Loader	Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors	Wheel Loader
Horsepower Compatibility	45+ hp (Skid-Steer)	40+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe)	60+ hp (Skid-Steer)	50+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe)	40+ hp (Tractor) 60+ hp (Wheel Loader)	100+ hp (Wheel Loader & Backhoe)	40+ hp (Tractor) 60+ hp (Wheel Loader)	140+ hp (Wheel Loader & Backhoe)	40+ hp (Tractor) 60+ hp (Wheel Loader)	140+ hp (Wheel Loader & Backhoe)
Cutting Edge Technology	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge	TRACE — Terrain Response Advanced Cutting Edge
Cutting Edge Material	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts	High-Carbon Steel With Carbide Inserts
Mount Type	Skid-Steer Attach Plate	Skid-Steer Attach Plate / Coupler	Skid-Steer Attach Plate	Skid-Steer Attach Plate / Coupler	Skid-Steer Attach Plate / Coupler	Coupler	Skid-Steer Attach Plate / Coupler	Coupler	Skid-Steer Attach Plate / Coupler	Coupler
