Straight Blade Plow
- Blade Width: 7' 6", 8', 8' 6" & 9'
- Fits: Class 2-5 Trucks & 3-4 Series Tractors
- Moldboard: Powder-Coated Steel
- #: 7600HD, 8000HD, 8600HD, 9000HD
Exceed Your Demands

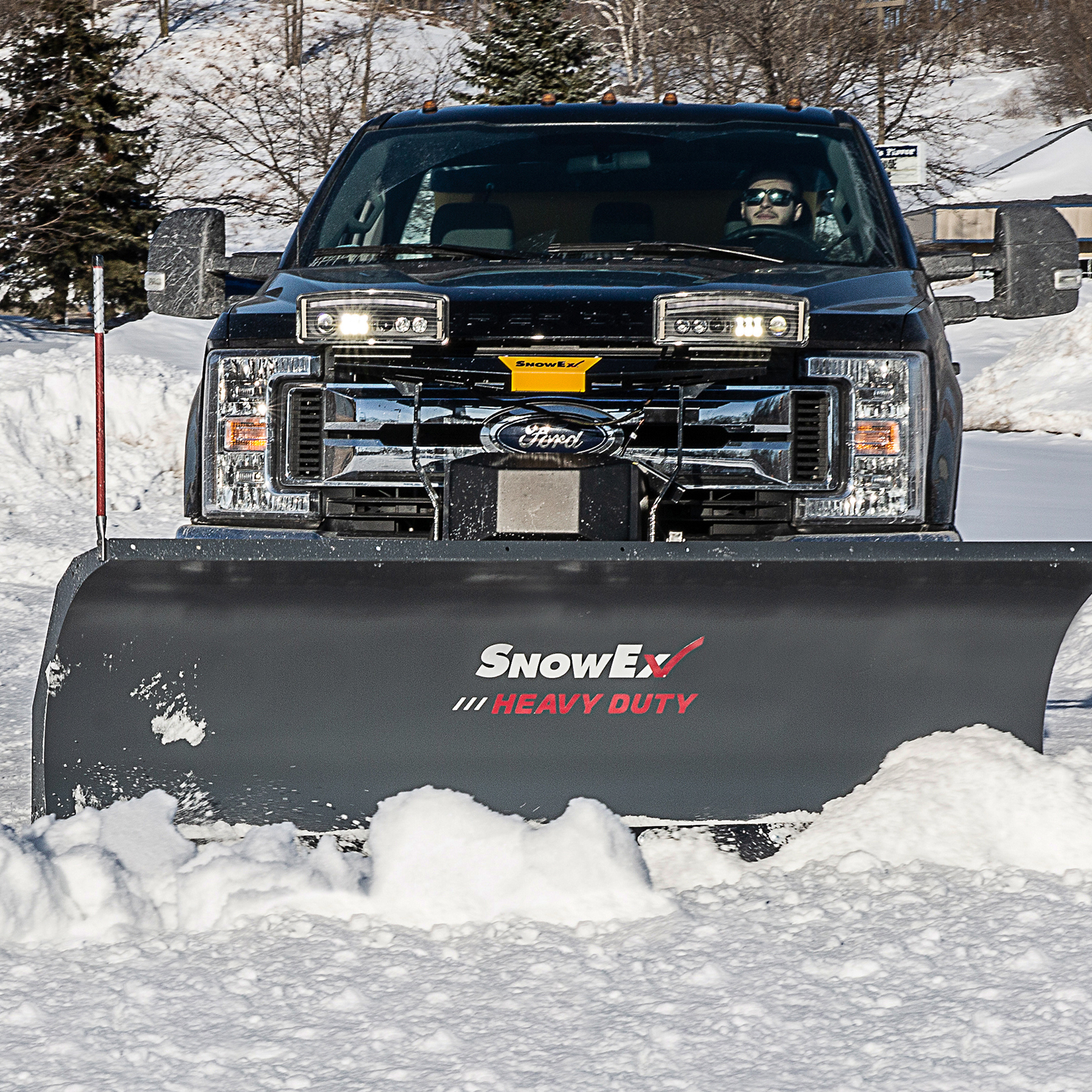

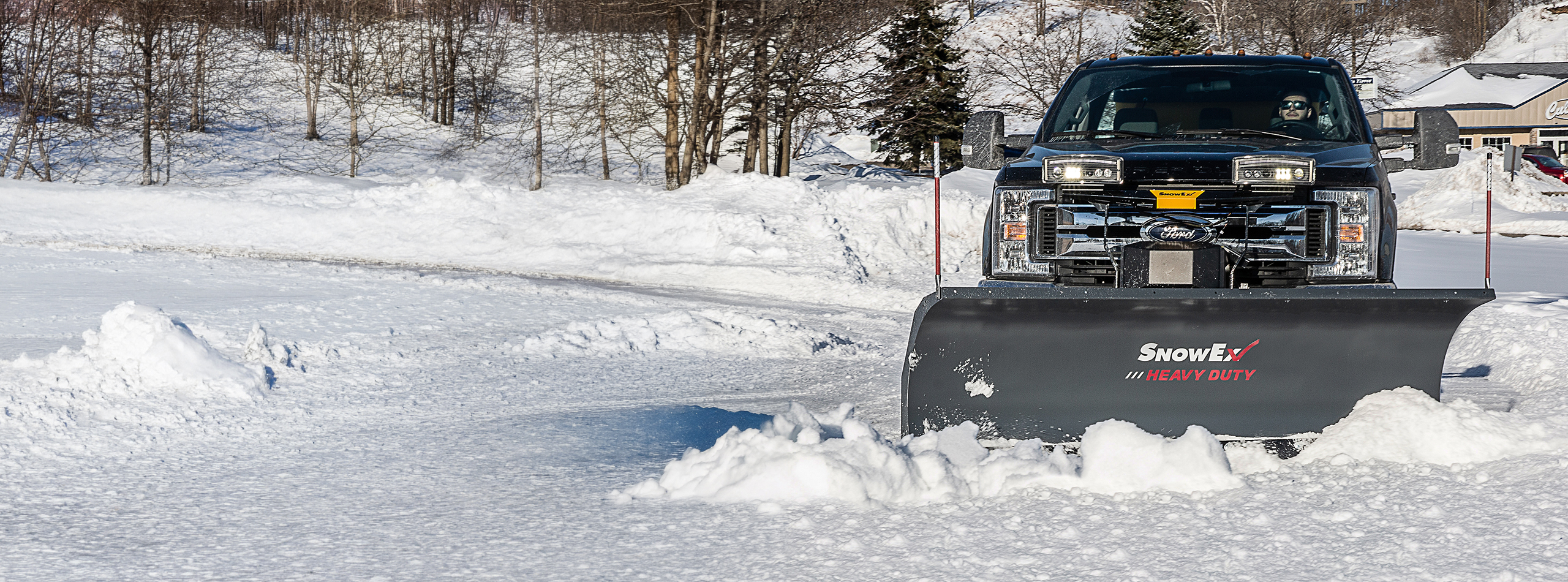

For commercial contractors outfitting larger vehicles, only a heavy-duty straight blade snowplow will do…and the aptly named SnowEx® Heavy-Duty Series fits the bill. Powering ahead and rolling heavy snow farther with a 31″-tall steel blade, these plows feature a formed base channel that delivers extra stability. While vertical ribs, two angled Power Ribs and massive quad design provide added strength to prevent the blade from twisting, even under the most punishing winter conditions.
Unique Features
Standard Plow Features
Featured Accessories
Rubber Cutting Edges
Heavy duty rubber cutting edges are ideal for plowing sensitive areas such as pavers or parking garages.
Part Number
Bolt-On Wing Extensions
Maximize your blade width and carrying capacity with wing extensions, reducing the number of passes to cut down job time.
Part Number
Back Drag Edges
SnowEx back drag edges deliver cleaner, consistent scraping and back dragging in tight areas.
*Back Drag Edge and Shoe Kits cannot be used simultaneously.
Part Number
Product Specs
| 7600HD | 8000HD | 8600HD | 9000HD | |
|---|---|---|---|---|
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel |
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel |
| Blade Type | Straight Blade | Straight Blade | Straight Blade | Straight Blade |
| Blade Type | Straight Blade | Straight Blade | Straight Blade | Straight Blade |
| Vehicle Compatibility | Class 2-5 Trucks & 3-4 Series Tractors | Class 2-5 Trucks & 3-4 Series Tractors | Class 2-5 Trucks & 3-4 Series Tractors | Class 2-5 Trucks & 3-4 Series Tractors |
| Vehicle Compatibility | Class 2-5 Trucks & 3-4 Series Tractors | Class 2-5 Trucks & 3-4 Series Tractors | Class 2-5 Trucks & 3-4 Series Tractors | Class 2-5 Trucks & 3-4 Series Tractors |
| Approx. Weight* | 730 lbs | 746.5 lbs | 763.5 lbs | 781.5 lbs |
| Approx. Weight* | 331 kg | 338 kg | 346 kg | 354 kg |
| Plowing Width (Straight) | 90" 110.5" (W/ Wings) | 96" 116.5" (W/ Wings) | 102" 122.5" (W/ Wings) | 108" 128.5" (W/ Wings) |
| Plowing Width (Straight) | 228.6 cm 280.7 cm (W/ Wings) | 243.8 cm 295.9 cm (W/ Wings) | 259.1 cm 311.2 cm (W/ Wings) | 274.3 cm 326.4 cm (W/ Wings) |
| Plowing Width (Full Angle) | 78.1" 95.2" (W/ Wings) | 83.3" 100.4" (W/ Wings) | 88.5" 105.6" (W/ Wings) | 93" 112" (W/ Wings) |
| Plowing Width (Full Angle) | 198.4 cm 241.8 cm (W/ Wings) | 211.6 cm 255 cm (W/ Wings) | 224.8 cm 268.2 cm (W/ Wings) | 236.2 cm 284.5 cm (W/ Wings) |
| Blade Width | 7'6" | 8'0" | 8'6" | 9'0" |
| Blade Width | 228.6 cm | 243.8 cm | 259.1 cm | 274.3 cm |
| Blade Height | 31" | 31" | 31" | 31" |
| Blade Height | 78.7 cm | 78.7 cm | 78.7 cm | 78.7 cm |
| Angle Cylinders | 1½" | 1½" | 1½" | 1½" |
| Angle Cylinders | 3.8 cm | 3.8 cm | 3.8 cm | 3.8 cm |
| Cutting Edge | ½" x 6" (Standard) | ½" x 6" (Standard) | ½" x 6" (Standard) | ½" x 6" (Standard) |
| Cutting Edge | 1.3 cm x 15.2 cm (Standard) | 1.3 cm x 15.2 cm (Standard) | 1.3 cm x 15.2 cm (Standard) | 1.3 cm x 15.2 cm (Standard) |
| Blade Thickness | 12 ga | 12 ga | 12 ga | 12 ga |
| Blade Thickness | 12 ga | 12 ga | 12 ga | 12 ga |
| Reinforcement Ribs | 6 vertical/2 angle | 6 vertical/2 angle | 6 vertical/2 angle | 6 vertical/2 angle |
| Reinforcement Ribs | 6 vertical/2 angle | 6 vertical/2 angle | 6 vertical/2 angle | 6 vertical/2 angle |
| Trip Springs | 4 steel | 4 steel | 4 steel | 4 steel |
| Trip Springs | 4 steel | 4 steel | 4 steel | 4 steel |
