POWER PUSHER™ PRO
TRACE™ Edge
Technology
Hydraulic-Wing Pusher Plow
Quick Specs
Select a model:
- 8' x 30" Blade Size
- 2,633 lb Approx. Weight (Without Mount)
- 8' x 36" Blade Size
- 2,728 lb Approx. Weight (Without Mount)
- 10' x 30" Blade Size
- 2,870 lb Approx. Weight (Without Mount)
- 10' x 36" Blade Size
- 2,922 lb Approx. Weight (Without Mount)
- 12' x 30" Blade Size
- 3,050 lb Approx. Weight (Without Mount)
- 12' x 42" Blade Size
- 3,297 lb Approx. Weight (Without Mount)
- 14' x 30" Blade Size
- 3,417 lb Approx. Weight (Without Mount)
- 14' x 42" Blade Size
- 3,766 lb Approx. Weight (Without Mount)
- 16' x 30" Blade Size
- 3,651 lb Approx. Weight (Without Mount)
- 16' x 42" Blade Size
- 3,955 lb Approx. Weight (Without Mount)
- Fits: Skid-Steers, Tractors & Wheel Loaders
Verify compatibility and part number information
Spread Your Wings

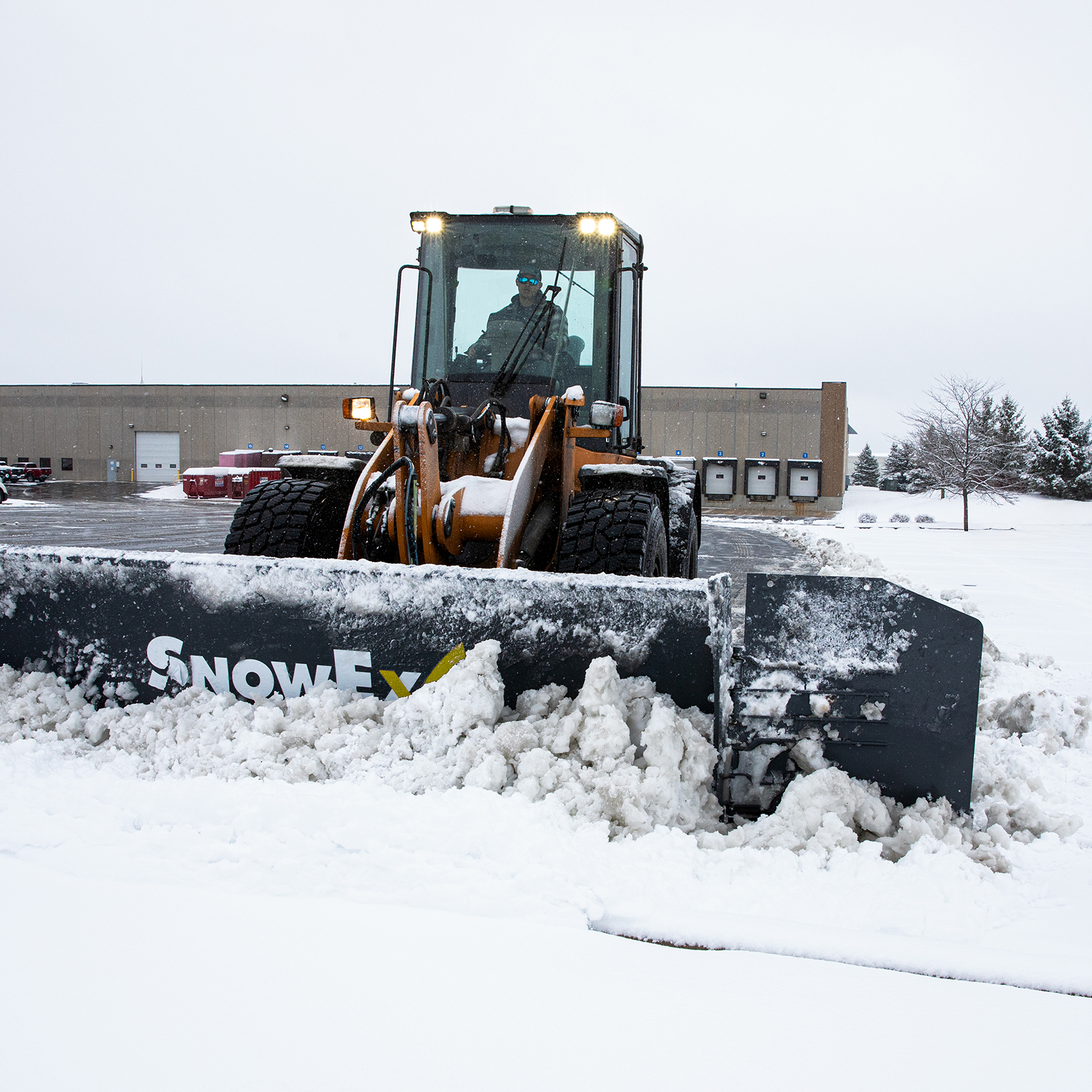

When you’re ready to master the job, the SnowEx® POWER PUSHER™ PRO hydraulic wing pusher plows are the ultimate for total control. They are engineered for experienced contractors who demand more from their equipment. With exclusive 3-foot hydraulic, independently controlled wings that can be placed anywhere on their 180-degree travel arc, you can position your plow to move and stack more snow with every pass. This is how you take your skills to the next level, taking control of the most intimidating jobsites.
Compatible with Skid-Steers, Tractors & Wheel Loaders
Unique Features

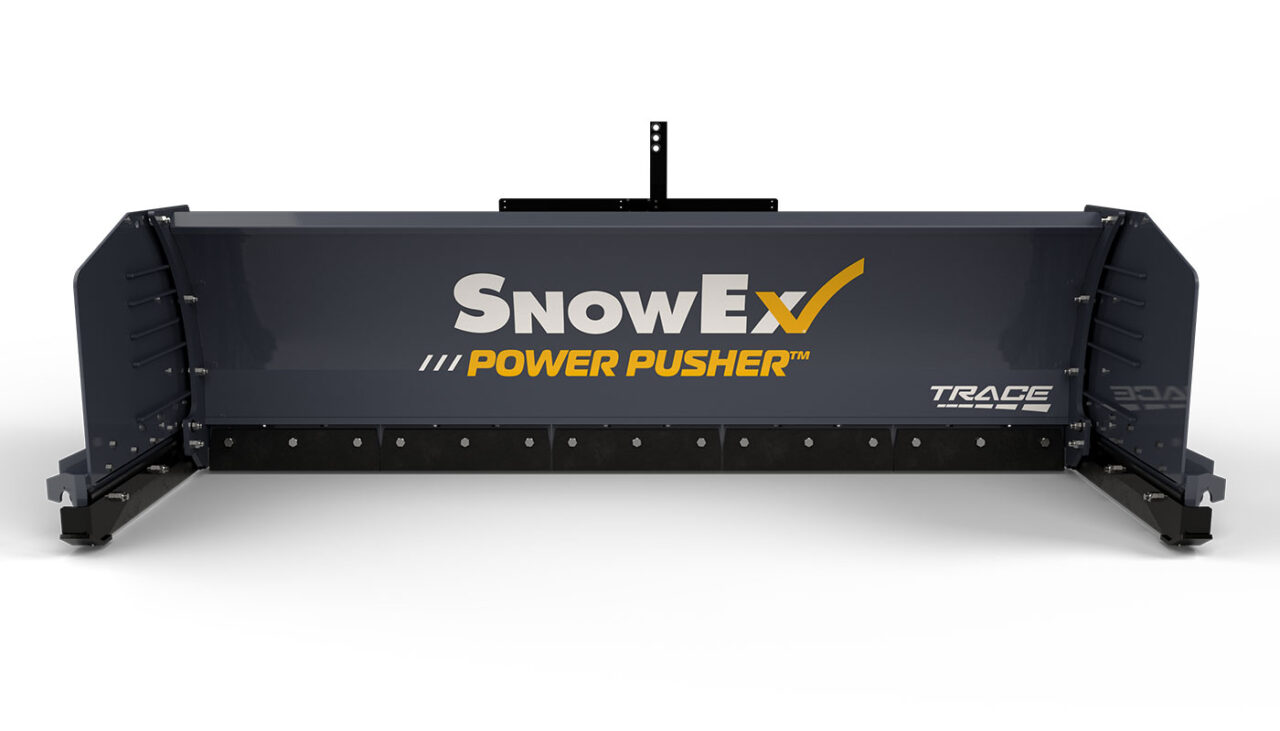

Pusher Construction
- 30″, 36″, and 42″ tall pushers available in 8′, 10′, 12′, 14′ & 16′ widths
- 12-gauge, powder-coated steel
- 2′ cutting edge sections made of high-carbon steel with carbide inserts (TRACE)
- Hydraulic wings with 180-degree placement (front and back)
- Aggressive 84-degree attack angle ensures a clean scrape and back drag
Structural Reinforcement
- 2 vertical ribs (per 2’ section) eliminate blade twisting and reduce stress on pusher assembly
- 2 reinforced horizontal tubes connect the ribs and provide exceptional torsional strength and rigidity
- 2’ cutting edge sections independently raise, oscillate, and trip

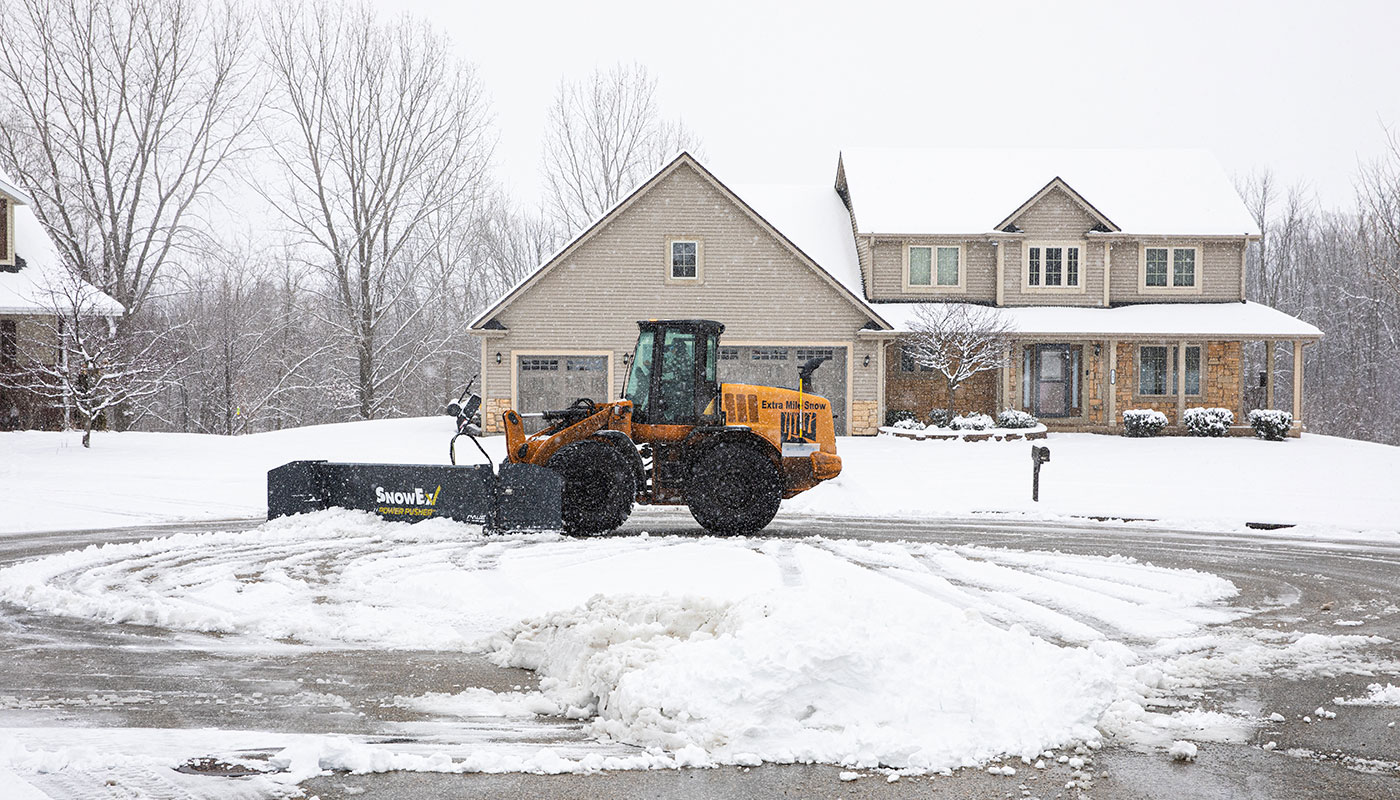

The terrain-response advanced cutting edge is comprised of independent, 2’ sections that raise, oscillate, and trip to accommodate contours and obstacles in the plowable surface. The sections remove more snow by contouring to the surface, reducing the amount of salt required.

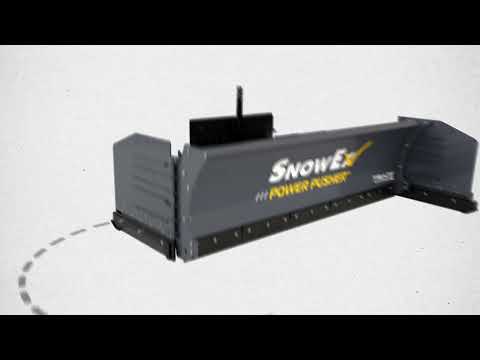

Hydraulically actuated, 3′ wings can be moved into countless configurations within the 180 degree path of travel. Both wings move independently and add 6′ of plow width when both wings are fully open.

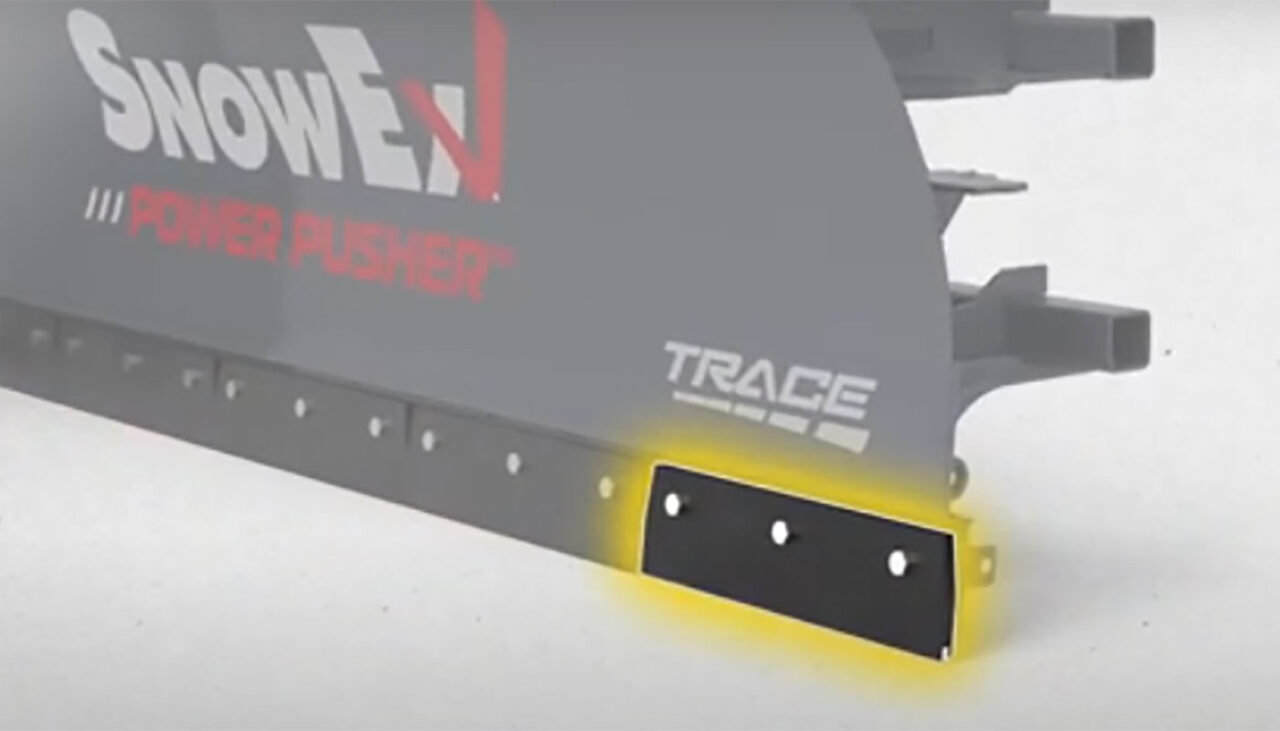

Each TRACE edge section comes standard with a 3 /4″ cutting edge with carbide inserts and uses the same part number for easy replacement. The 2’ edge sections are common across all POWER PUSHER models, reducing complexity and increasing fleet interchangeability. And there’s no need to replace the full cutting edge—only the sections that show wear—saving you time and money.
3′ wing sections raise and oscillate to ensure the wing extensions provide a clean scrape similar to the main cutting edge.

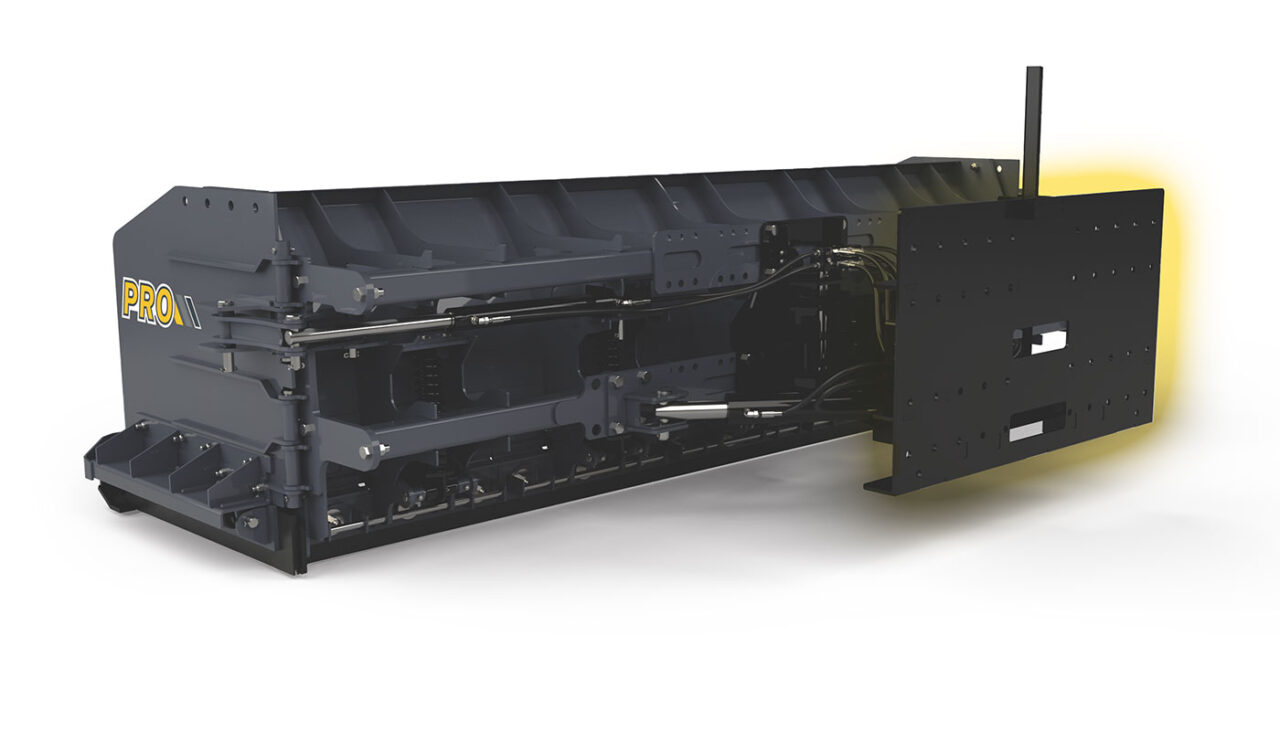

Operation of the POWER PUSHER PRO pusher plow is conveniently tied into the equipment’s controls. Simply raise and lower the lift arm and angle the attachment plate to position the pusher in the correct orientation. The wing controls are tied into the auxiliary hydraulic functions of the vehicle.
Installation is made easy on a wide variety of equipment and machinery, including skid-steers, wheel loaders, and tractors. Vehicle-specific mounts are available from SnowEx Products to ensure correct installation.
Universal Features
POWERCOAT Finish
Specifications
Selecting a model updates product features and specs below.
| Specification | 32608-3 | 32008-2 | 32610-3 | 32010-2 | 32822-3 | 32142-3 | 32644-3 | 32134-3 | 32646-3 | 32136-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Blade Size | 8' x 30" | 8' x 36" | 10' x 30" | 10' x 36" | 12' x 30" | 12' x 42" | 14' x 30" | 14' x 42" | 16' x 30" | 16' x 42" |
| Approx. Weight (Without Mount) | 2,633 lb | 2,728 lb | 2,870 lb | 2,922 lb | 3,050 lb | 3,297 lb | 3,417 lb | 3,766 lb | 3,651 lb | 3,955 lb |
| Application Weight (Max Operating Weight) | 8,000 lb | 10,000 lb | 9,000 lb | 12,000 lb | 25,000 lb | 25,000 lb | 25,000 lb | 30,000 lb | 25,000 lb | 36,000 lb |
| Blade Width | 8' | 8' | 10' | 10' | 12' | 12' | 14' | 14' | 16' | 16' |
| Blade Height | 30" | 36" | 30" | 36" | 30" | 42" | 30" | 42" | 30" | 42" |
| Side Plate Width | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" | 36" |
| Side Plate Height | 30" | 36" | 30" | 36" | 30" | 42" | 42" | 42" | 42" | 42" |
| Moldboard Radius | 27" | 27" | 27" | 27" | 27" | 46" | 27" | 46" | 27" | 46" |
| Approx. Snow Capacity | 75 cu ft | 108 cu ft | 94 cu ft | 135 cu ft | 113 cu ft | 219 cu ft | 132 cu ft | 250 cu ft | 151 cu ft | 280 cu ft |
| Specification | 32608-3 | 32008-2 | 32610-3 | 32010-2 | 32822-3 | 32142-3 | 32644-3 | 32134-3 | 32646-3 | 32136-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel | Powder-Coated Steel |
| Blade Type | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher | Pusher |
| Vehicle Compatibility | Skid-Steer | Tractor / Wheel Loader | Skid-Steer | Tractor / Wheel Loader |
Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors |
Tractor / Wheel Loader |
Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors |
Wheel Loader |
Compact Wheel Loaders, Wheel Loaders (9,000-25,000 lb), Skid Steers (9,000 lb+), Tractors |
Wheel Loader |
| Horsepower Compatibility | 45+ hp (Skid-Steer) | 40+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) | 60+ hp (Skid-Steer) | 50+ hp (Tractor) & 60+ hp (Wheel Loader & Backhoe) |
40+ hp (Tractor) 60+ hp (Wheel Loader) |
100+ hp (Wheel Loader & Backhoe) |
40+ hp (Tractor) 60+ hp (Wheel Loader) |
140+ hp (Wheel Loader & Backhoe) |
40+ hp (Tractor) 60+ hp (Wheel Loader) |
140+ hp (Wheel Loader & Backhoe) |
| Cutting Edge Technology | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge | TRACE — Terrain Response Advanced Cutting Edge |
| Cutting Edge Material | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts | High-Carbon Steel With Carbide Inserts |
| Mount Type | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Skid-Steer Attach Plate | Skid-Steer Attach Plate / Coupler | Coupler | Coupler | Coupler | Coupler | Coupler | Coupler |
