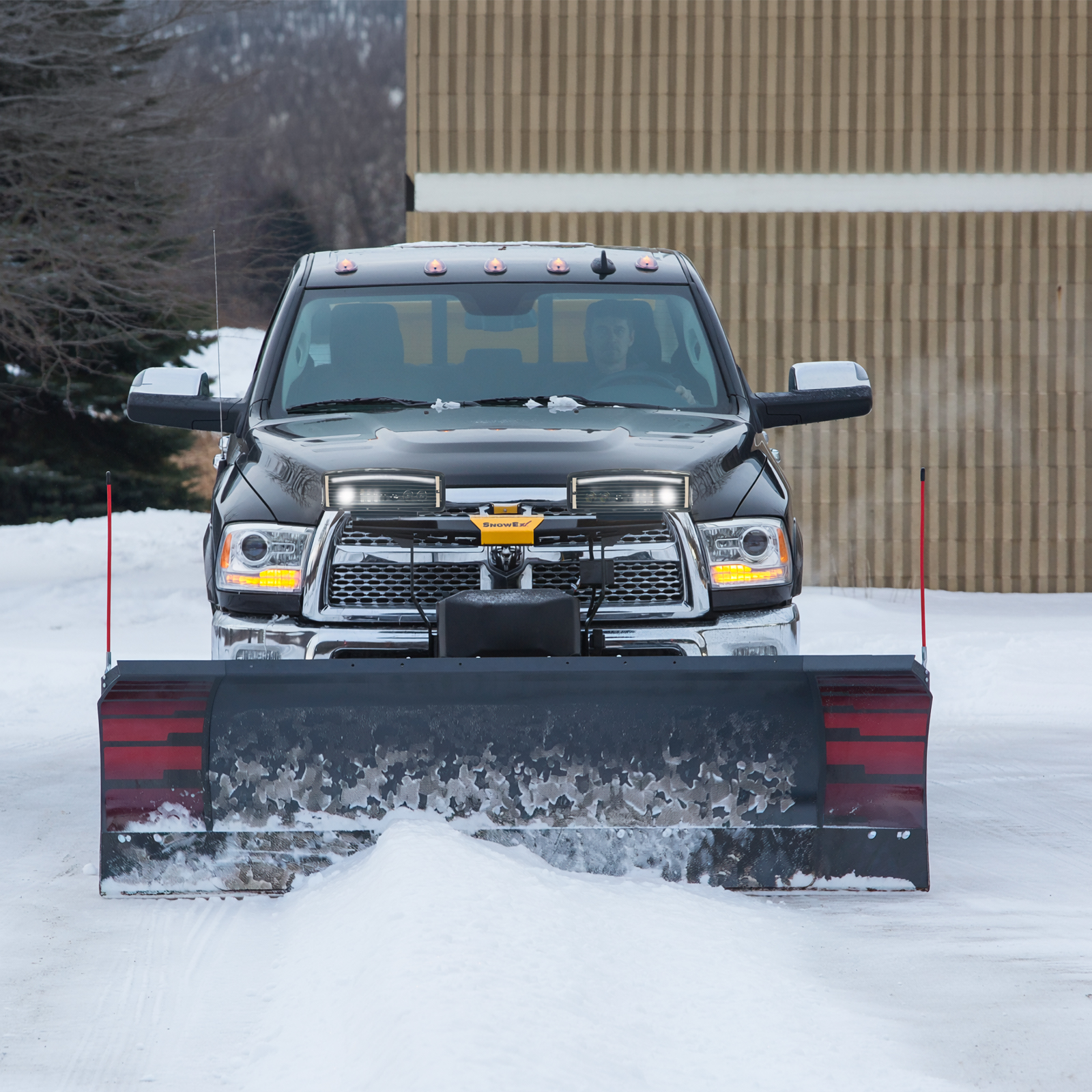

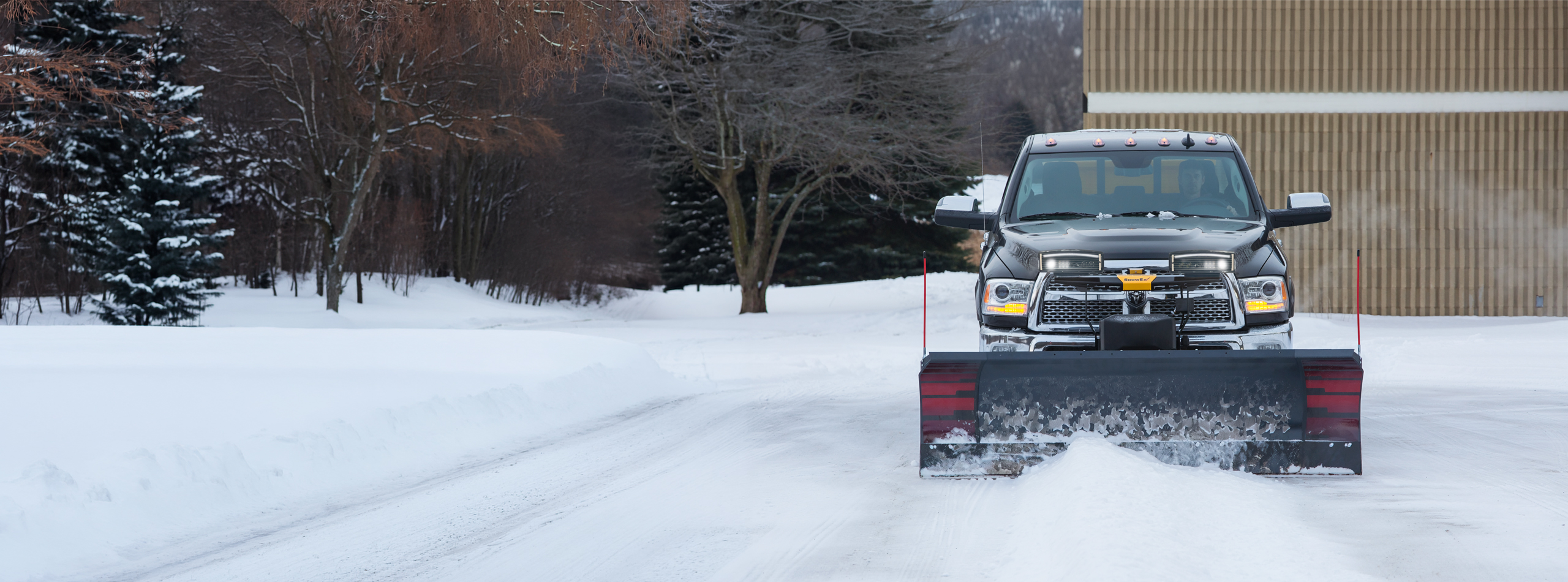

SPEEDWING™
Automatic Winged Snowplow

Quick Specs

8'7" - 9'8" Blade Width
891.5 lbs Approx. Weight
Windrow: 7'10" Plowing Width (Full Angle)

Fits: Class 2-5 Trucks & Skid-Steers
#: 8600

Does this Plow fit my vehicle?

Verify compatibility and part number information

A Model of Efficiency—Built to Maximize Profits.

Don’t just clear snow, outsmart it. The SnowEx^® SPEEDWING automatic wing plow works as hard as you do. Intuitive mechanical wings automatically adjust as you angle the blade, ensuring the wings are in the optimal position to move the maximum amount of snow. This is how you combine the simplicity of a straight blade plow with the power of a winged plow. Get more snow-clearing done in less time, enhance your profits, and get onto the next job.

Compatible with Trucks & Skid-Steers

Unique Features

What Sets SPEEDWING™ Apart

Blade Construction

2’6″ tall moldboard available in 8’7″ – 9’8″ width
12-gauge, powder coated steel
½” x 6″ (blade) and ½” x 8″ (wing) steel cutting edge comes standard and provides long-lasting performance
70-degree attack angle delivers a clean scrape

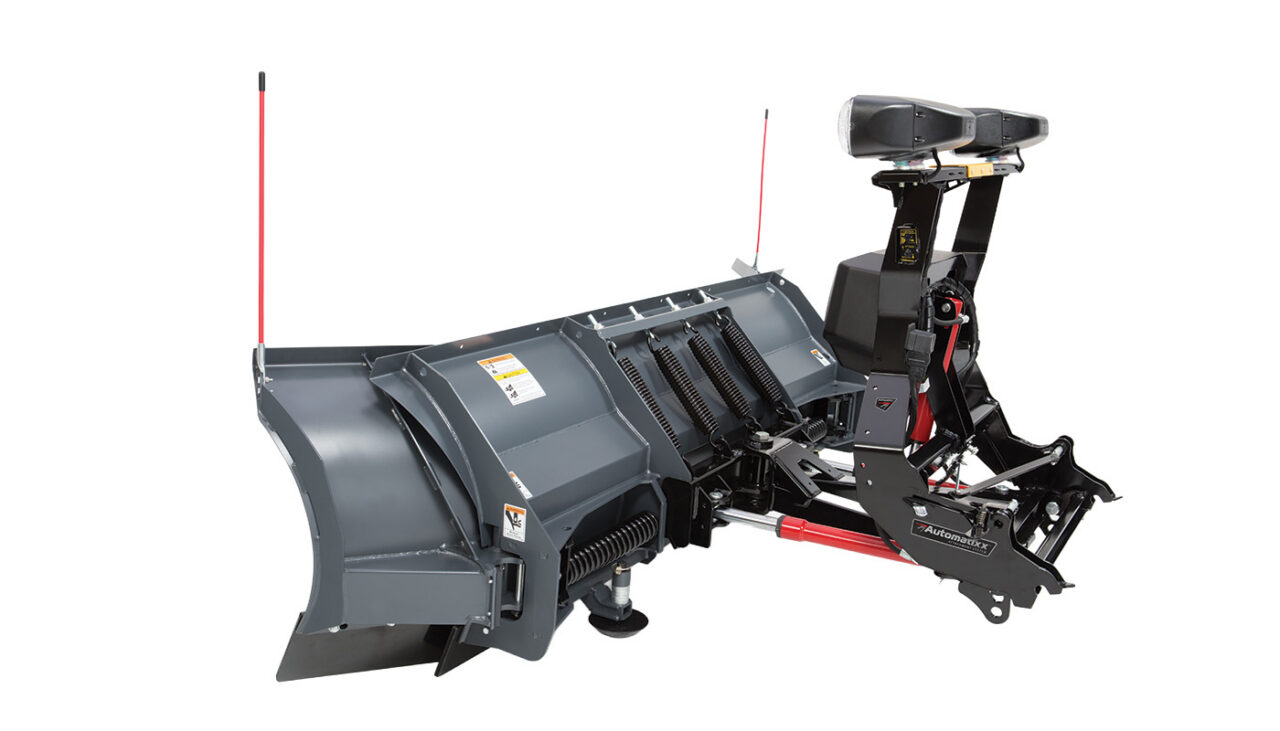

Structural Reinforcement

A full-trip moldboard with four coil springs helps protect you, your plow, and your truck when striking obstacles
A formed torque box with 4 welded vertical ribs add strength and protect against blade twisting
A formed base channel is the backbone of the plow, built with high-strength steel and multiple angles for extra stability

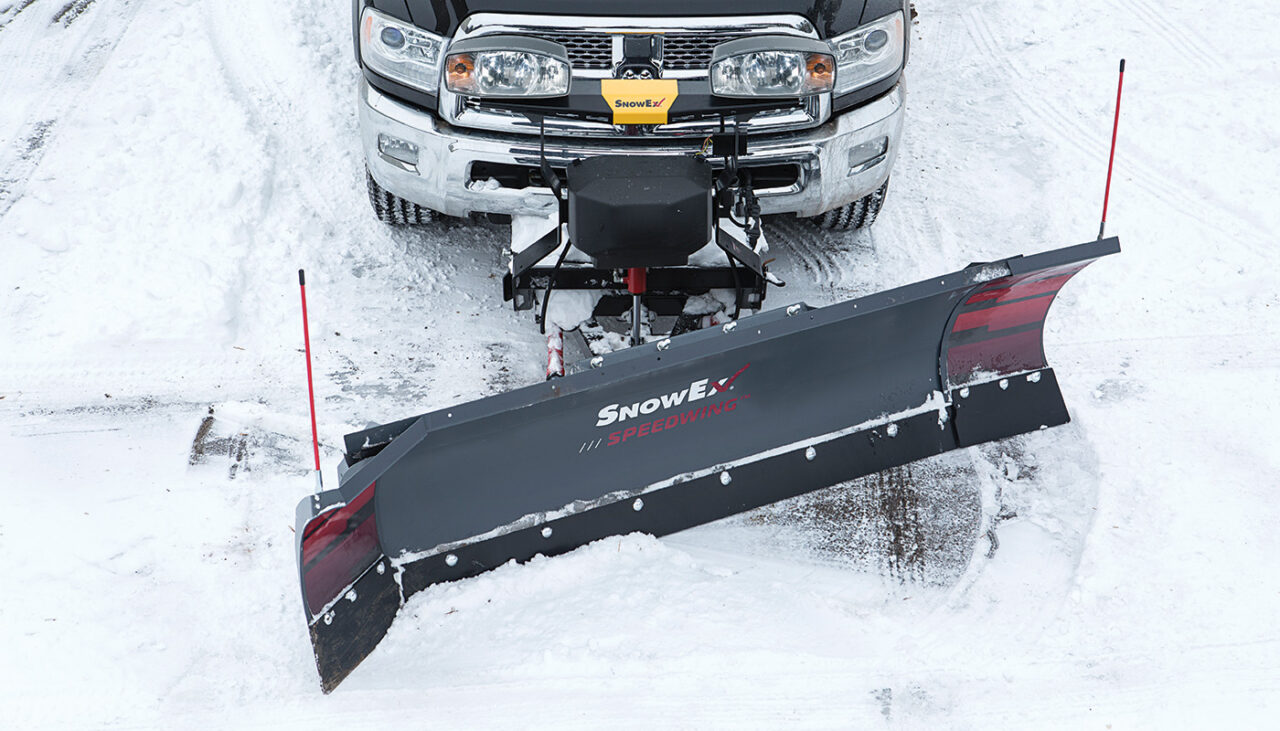

Wings Automatically Adjust

Mechanical wings automatically adjust from scoop mode to windrow position as you angle the plow. Plow wings give on impact. They are spring loaded and retract when hitting an obstacle.

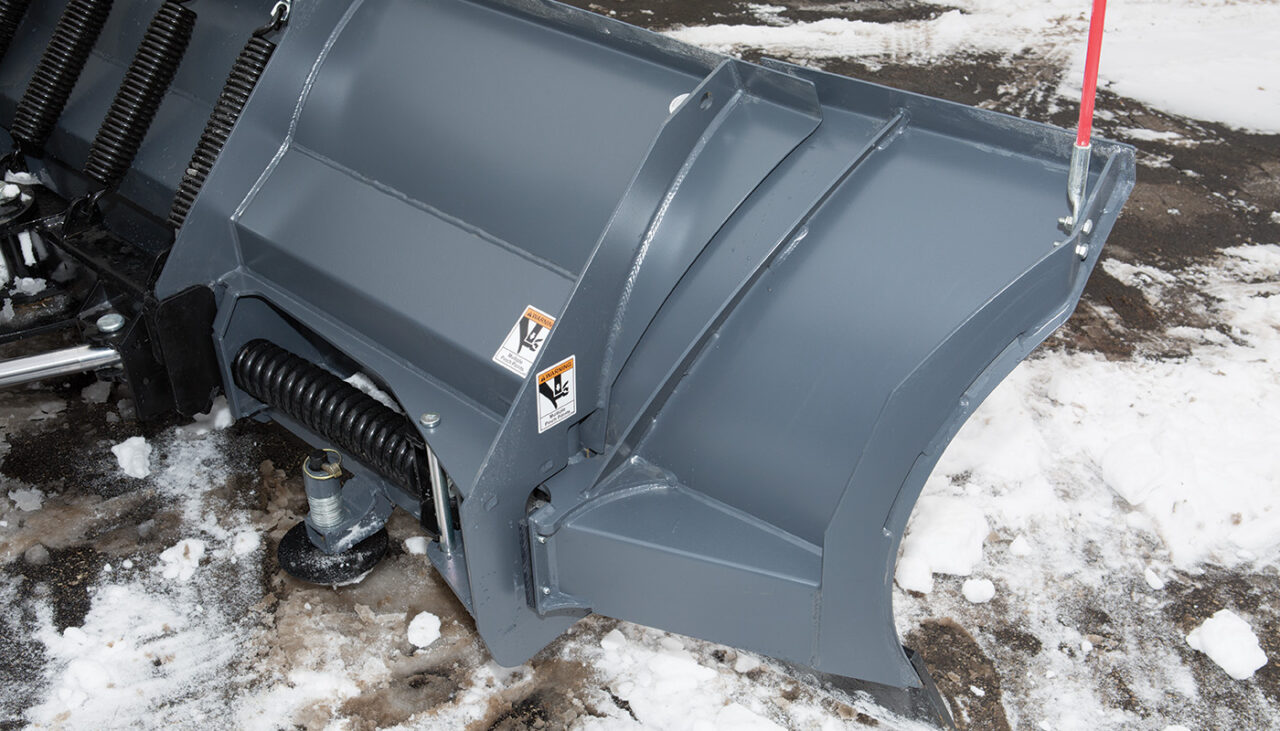

Straight Blade Position

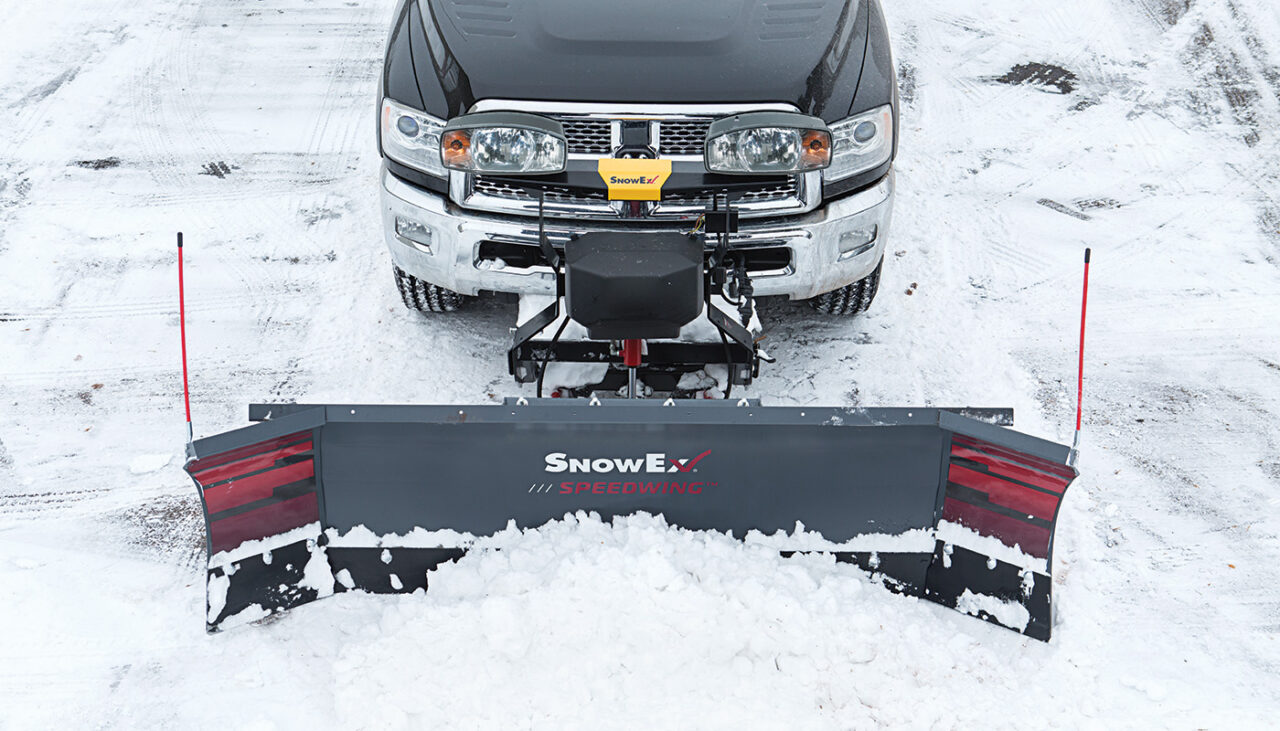

Scoop Position

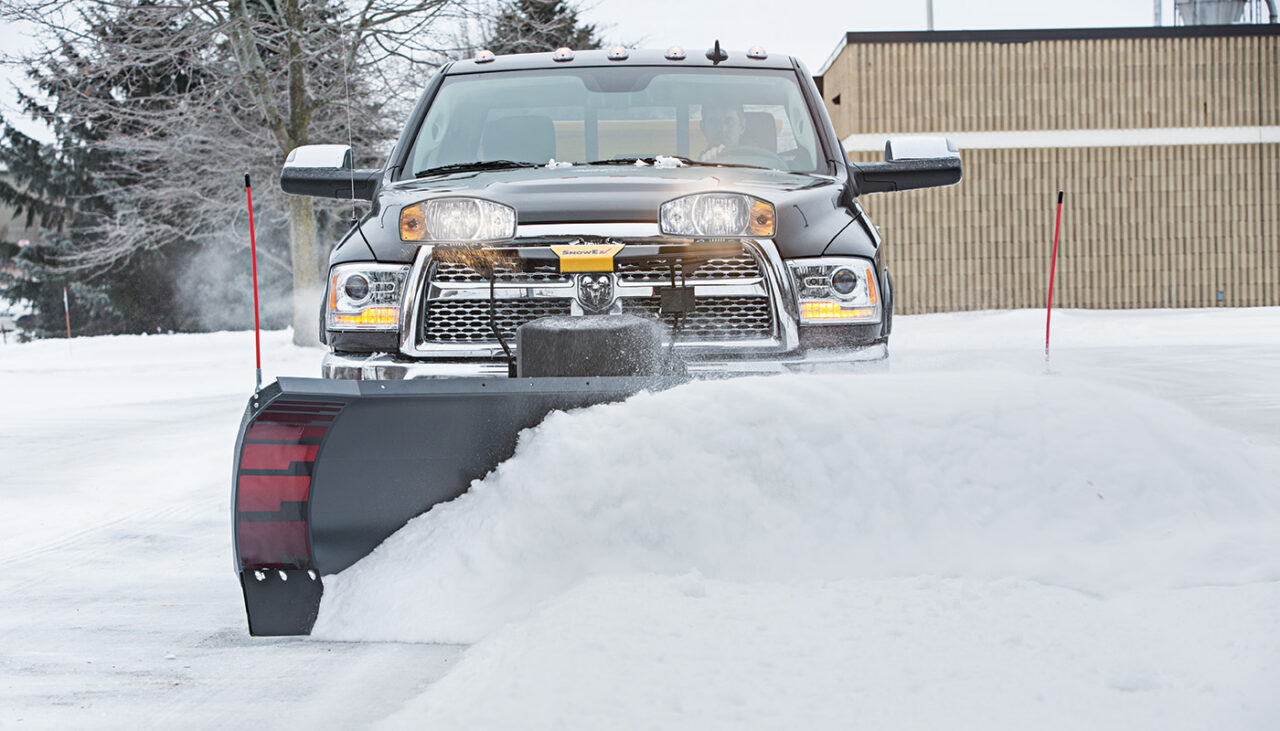

Windrowing Position

Universal Features

Every SNOWEX snowplow includes

Automatixx® Attachment System

The Automatixx attachment system provides fast and easy snowplow hook-up that can all be handled from one side of the truck. Includes removable receiver brackets.

See Details

SCRAPE MAXX™ Down-Force Kit

Scrape Maxx™ is an exclusive, standard feature on SnowEx truck plows, applying downward force to maximize scrape performance.

See Details

Direct Lift

Direct lift systems provide rapid plow response, fewer moving parts, and a full range of motion for efficient stacking.

Full-Trip Moldboard

A full-trip moldboard with four coil springs helps protect you, your plow, and your truck when striking hidden obstacles.

Hydraulics

Custom designed and built in-house, the snowplow’s responsive, super-fast hydraulics provide quick maneuvering in the field.

FLEET FLEX Electrical System

The FLEET FLEX electrical system provides complete fleet interchangeability. Any SnowEx plow can be used on any truck.

POWERCOAT Finish

Our high-performance, multi-stage powder coat system provides a long-lasting, maintenance-free finish.

SECURITY GUARD™

The SECURITY GUARD™ anti-theft system electronically locks your plow from unauthorized use when detached from truck.

Standard Options

Headlights & Controls

Controls

STANDARD OPTION

Handheld Control

Option Included with Snowplow Purchase

Choose the POWER GRIP™ handheld control with backlit buttons, power/float LEDs, and FLEET FLEX enablement. Its intuitive design makes raising, lowering, and angling the blade effortless, supported by in-house custom hydraulics and a direct-lift system for efficient stacking and transport.

STANDARD OPTION

Joystick Control

Option Included with Snowplow Purchase

Choose the compact joystick control featuring power/float LEDs and FLEET FLEX enablement. It delivers precise blade and wing maneuverability at your fingertips, backed by in-house custom hydraulics and a responsive direct-lift system for efficient stacking and transport.

Accessories

View All Accessories

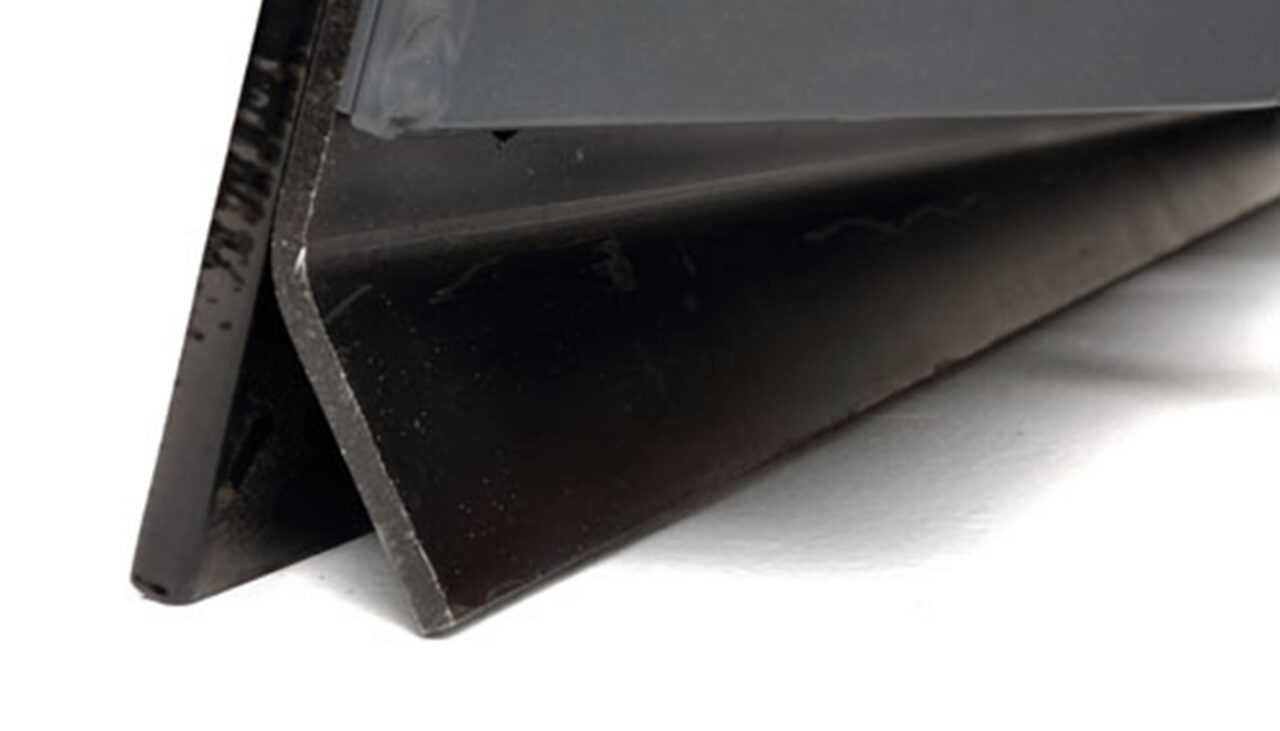

Close-up of a black metal angle iron, positioned on a white surface with one edge facing the camera, showing its L-shaped cross-section.

Back Drag Edges

Part Numbers

Part Number

#84461

SnowEx back drag edges deliver cleaner, consistent scraping and back dragging in tight areas.

9" Rubber Deflector Kits

Part Numbers

Part Number

#84518

Enhance snow containment, and prevent it from blowing onto the windshield, with a SnowEx rubber deflector.

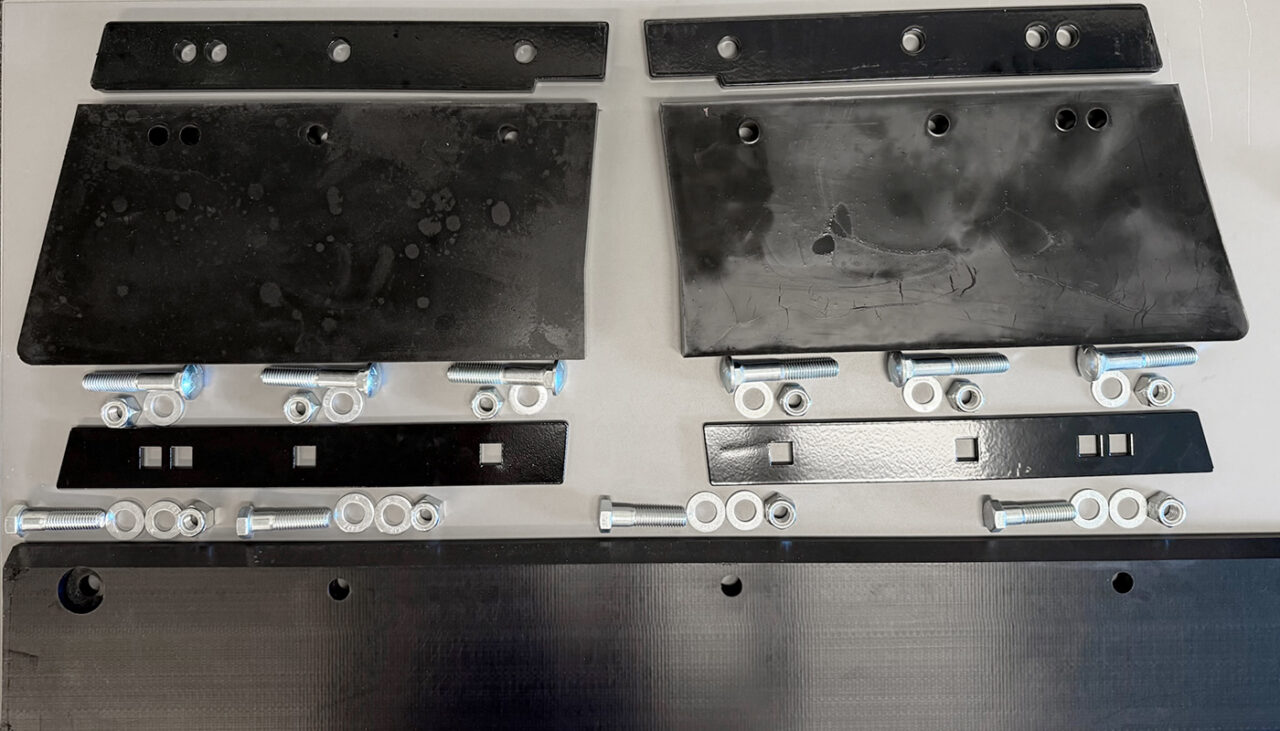

Several black metal or plastic plates of various shapes are laid out on a table, along with bolts, nuts, washers, and rectangular metal brackets arranged in organized rows.

Poly Cutting Edge (Moldboard & Wings)

Part Numbers

Part Number

#87925

Moldboard & Wing Kit

Resilient compound poly cutting edge help protect decorative concrete, driveways, and other delicate surfaces and adjust to road surface irregularities.

Four red metal rods with silver ends and black tips, arranged parallel on a white background. Two rods are longer, and two are shorter, each pair positioned next to each other for use in machinery applications.

Blade Guides

Part Numbers

Part Number

#84525

24"

#84477

36"

Available in 24″ or 36″ lengths, commercial blade guides are highly visible fluorescent orange, enhanced with reflective tape.

Specifications

Metric

Specification	77740
Blade Width	8'7" - 9'8"
Approx. Weight	891.5 lbs
Plowing Width (Straight)	Scoop: 8'7"
Plowing Width (Full Angle)	Windrow: 7'10"
Blade Height	2'6"
Angle Cylinders	1.5"
Cutting Edge	Blade: ½" x 6" (Standard) Wing: ½" x 8" (Standard)
Blade/Wing Thickness	12 ga

Specification	77740
Smart Model Number	8600SW
Moldboard Options	Powder-Coated Steel
Blade Type	Automatic Winged Blade
Vehicle Compatibility	Class 2-5 Trucks & Skid-Steers (50 to 70 HP) Class 2-5 Trucks & Skid-Steers (50 to 70 HP)
Reinforcement Ribs	4
Trip Springs	4 Steel
