HDV™ V-Plow

  • Blade Width: 8' 6" & 9' 6"
  • Fits: Class 2-5 Trucks & 3-4 Series Tractors
  • Moldboard: Stainless or Powder-Coated Steel

Throw Snow Farther

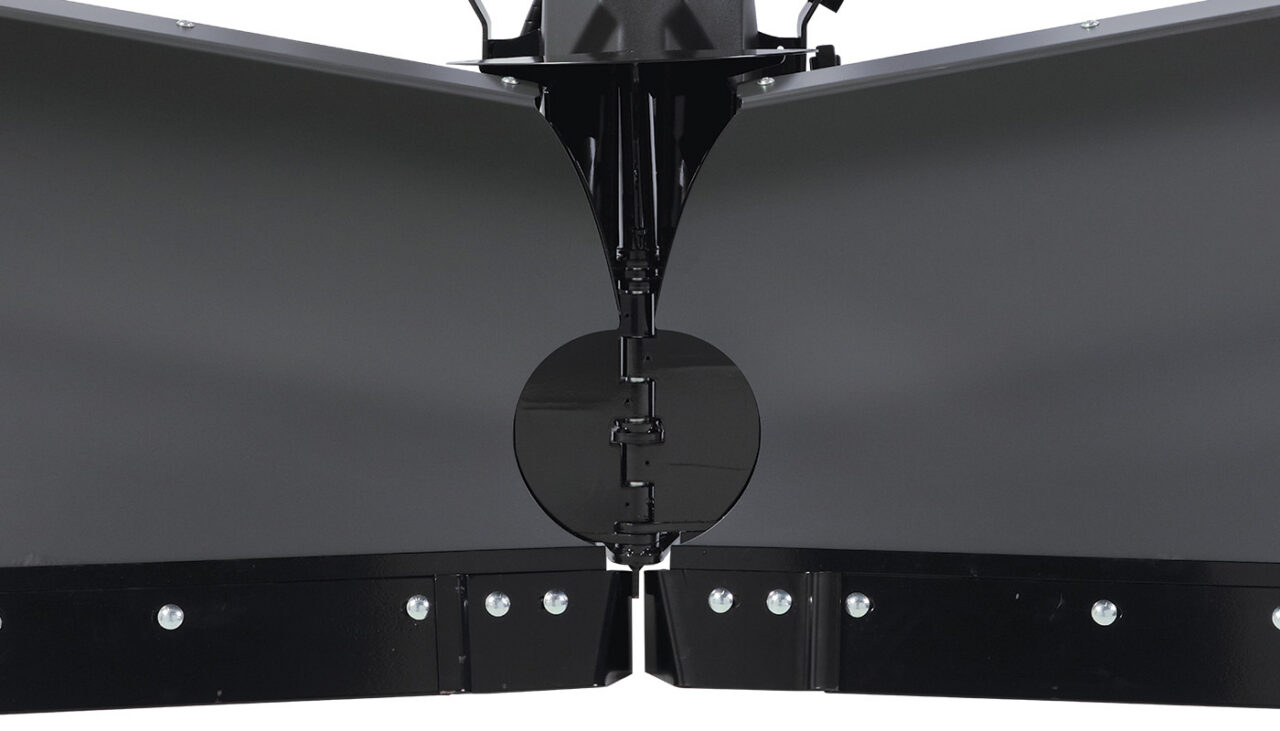

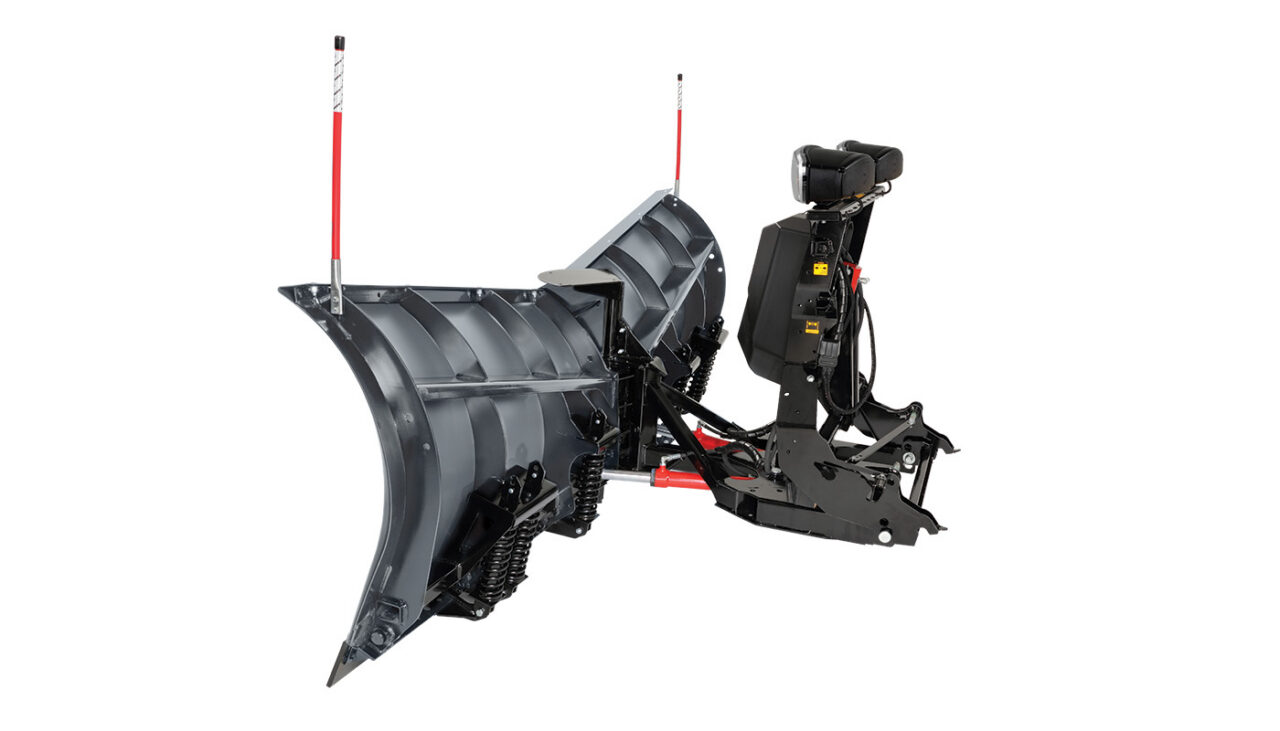

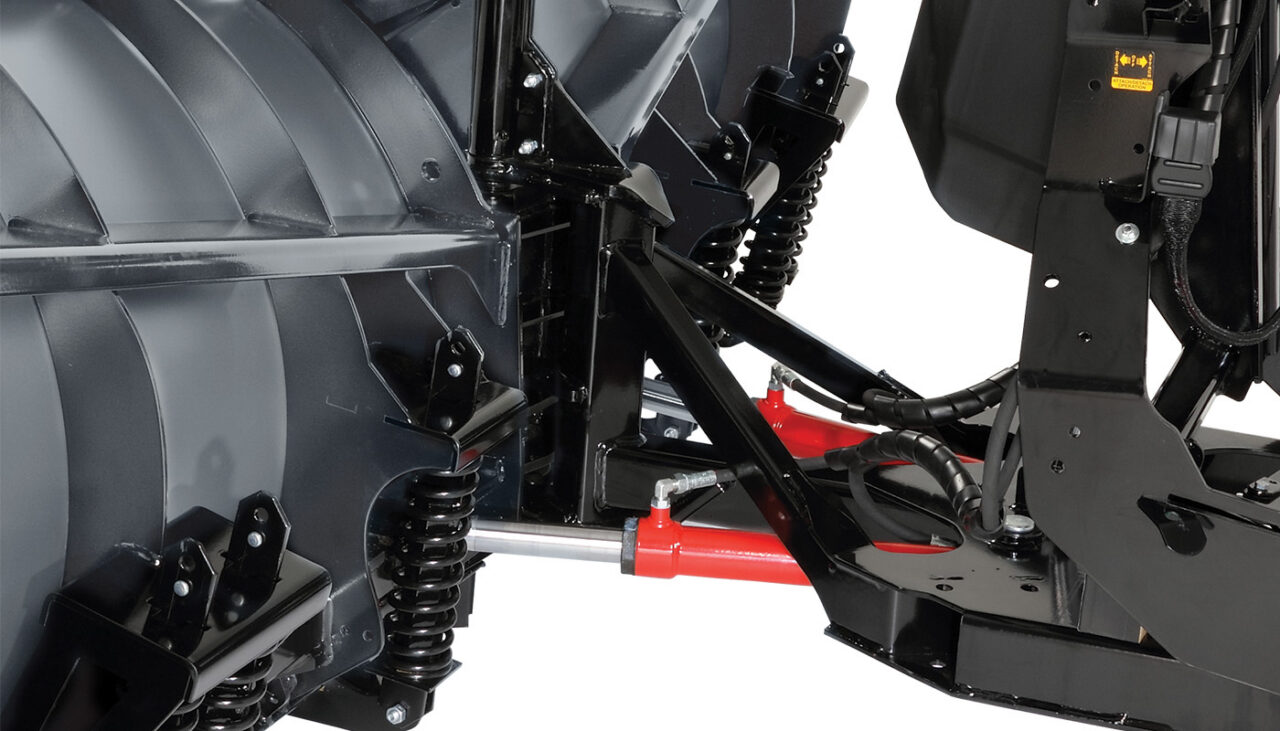

The HDV heavy-duty V-plows are built like nothing else on the market. Available in either durable powder-coated mild steel or rust-resistant stainless steel – and with either 8’6″ or 9’6″ blade widths – the plows boast 16-gauge flared moldboards that are reinforced by two robust angled power ribs. Double-acting angle cylinders, trip-edge protection, adjustable center cutting edges and responsive direct lift round out the many advantages of these feature-packed V-plows.

Unique Features

Product Specs

Metric
8.6 HDV9.6 HDV
Moldboard OptionsStainless or Powder-Coated SteelStainless or Powder-Coated Steel
Moldboard OptionsStainless or Powder-Coated SteelStainless or Powder-Coated Steel
Blade TypeV-PlowV-Plow
Blade TypeV-PlowV-Plow
Vehicle CompatibilityClass 2-5 Trucks & 3-4 Series TractorsClass 2-5 Trucks & 3-4 Series Tractors
Vehicle CompatibilityClass 2-5 Trucks & 3-4 Series TractorsClass 2-5 Trucks & 3-4 Series Tractors
Approx. Weight*950 lb1020 lb
Approx. Weight*431 kg463 kg
Plowing Width Full Angle: 90"
Full Angle (+ Wings): 115"
Straight: 102"
Straight (+Wings): 112.5"
Vee: 92"
Vee (+Wings): 115"
Scoop: 86"
Scoop (+Wings): 98"
Full Angle: 103.2"
Full Angle (+ Wings): 118"
Straight: 114"
Straight (+Wings): 124.5"
Vee: 103"
Vee (+Wings): 126"
Scoop: 98"
Scoop (+Wings): 110"
Plowing Width Full Angle: 228.6 cm
Full Angle (+ Wings): 292.1 cm
Straight: 259 cm
Straight (+Wings): 285.8 cm
Vee: 233.7 cm
Vee (+Wings): 292.1 cm
Scoop: 218.4 cm
Scoop (+Wings): 249 cm
Full Angle: 262.1 cm
Full Angle (+ Wings): 299.7 cm
Straight: 289.5 cm
Straight (+Wings): 316.2 cm
Vee: 261.6 cm
Vee (+Wings): 320 cm
Scoop: 249 cm
Scoop (+Wings): 279.4 cm
Blade Width8' 6"9' 6"
Blade Width259.1 cm289.6 cm
Blade HeightAt Hinge: 31"
At End: 38"
At Hinge: 31"
At End: 39"
Blade HeightAt Hinge; 78.7 cm
At End: 96.5 cm
At Hinge: 78.7 cm
At End: 99.1 cm
Angle Cylinders1.75" x 11"1.75" x 11"
Angle Cylinders4.4 cm x 27.9 cm4.4 cm x 27.9 cm
Cutting Edge0.375"0.5"
Cutting Edge0.953 cm1.3 cm
Blade & Wing Thickness16 ga16 ga
Blade & Wing Thickness16 ga16 ga
Reinforcement Ribs6 vertical/1 angle8 vertical/1 angle
Reinforcement Ribs6 vertical/1 angle8 vertical/1 angle
Trip Springs4 steel6 steel
Trip Springs4 steel6 steel
*Does not include vehicle mount (28 lb - 145 lb weight range). Please refer to the Power Match program for specific vehicle applications.
