Renegade™ Poly Hopper Spreader

NEW!
  • Capacity: 1.5 & 2.2 cu yd
  • Materials: Salt, Sand, Pre-Wet* & Liquid Brine*

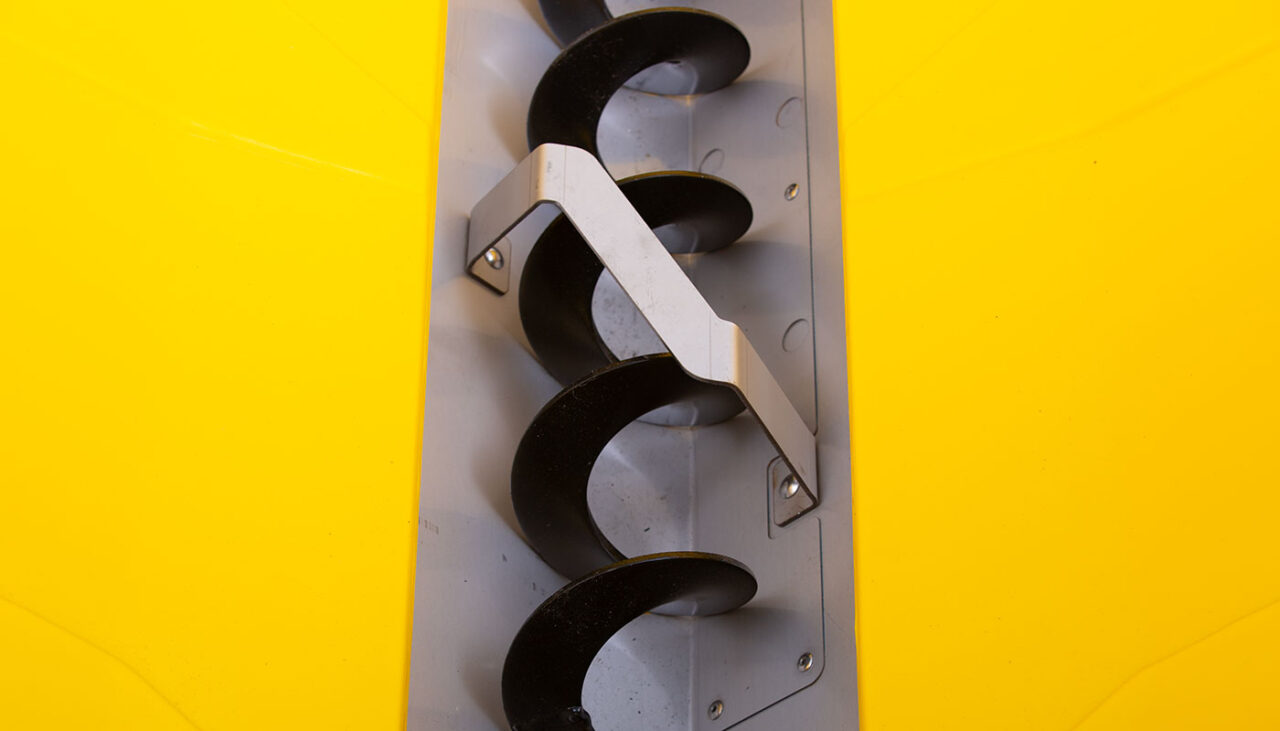

  • Delivery System: Chain or Auger
  • #: 81410, 81420, 89810, 89820

SPREADING YOUR WAY

Based on the material your operation most commonly uses for de-icing, the
SnowEx® Renegade line offers the best material delivery system for you. The

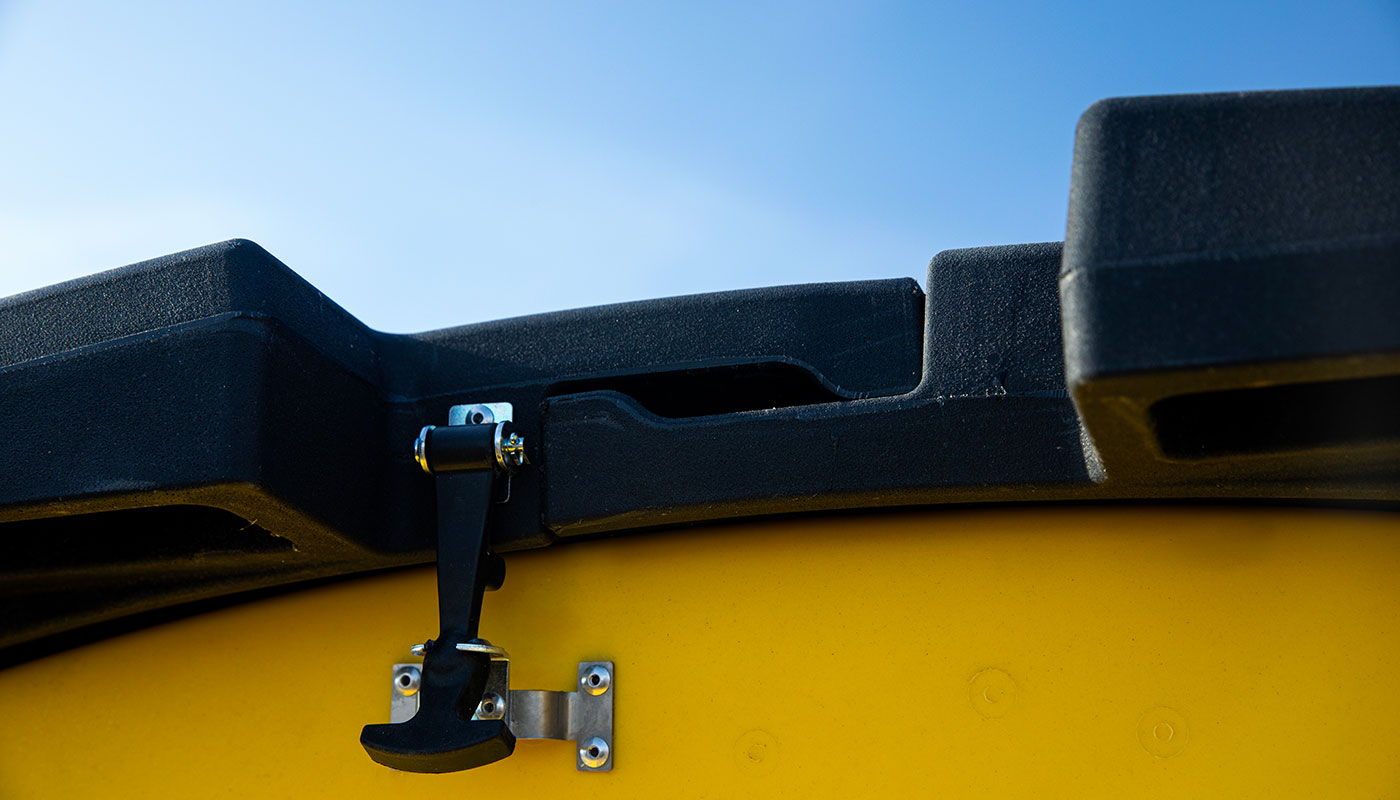

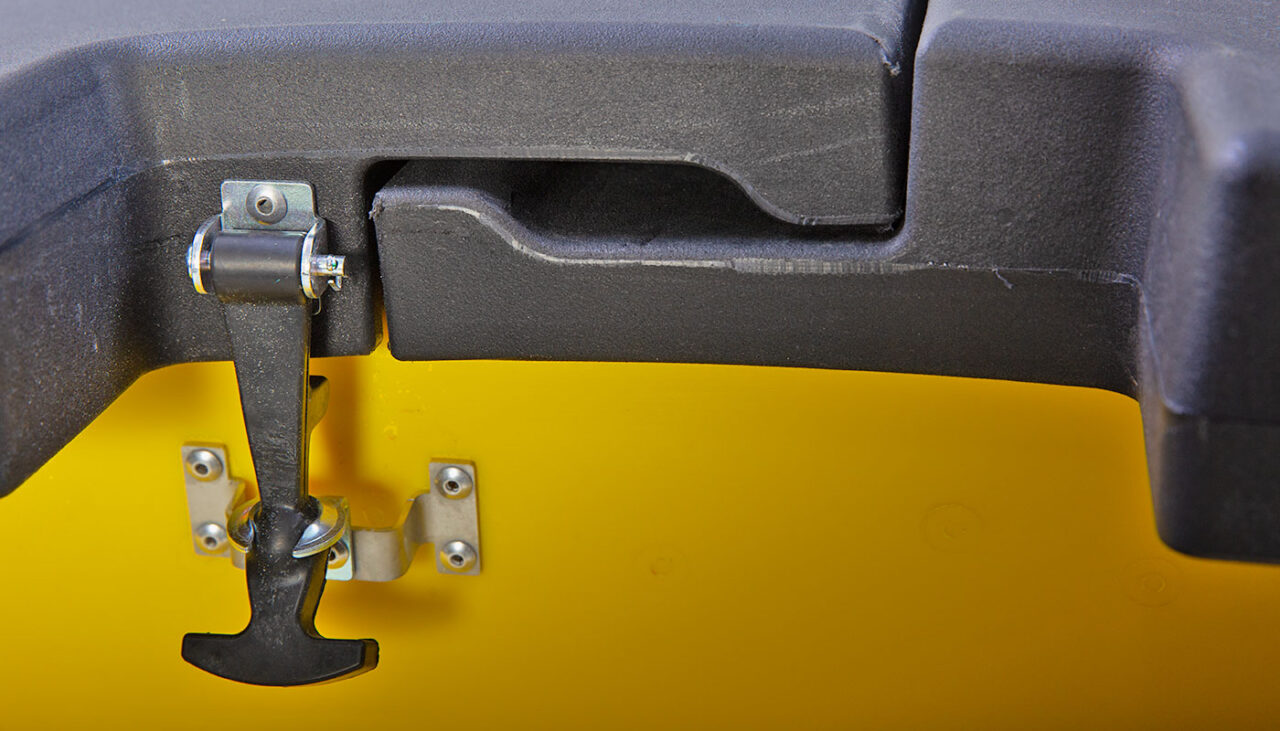

polyethylene construction and integrated lid system allows you to protect your
de-icing material as you complete your service routes.

Compatible with Trucks

Unique Features

Standard Features

Product Specs

Metric
ModelsP150C*P150A*P220C*P220A*
Vehicle Compatibility¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck
Vehicle Compatibility¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck¾ & 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck
Material CompatibilitySand, Salt, Pre-Wet* & Liquid Brine&Bulk Rock Salt, Pre-Wet* & Liquid Brine*Sand, Salt, Pre-Wet* & Liquid Brine&Bulk Rock Salt, Pre-Wet* & Liquid Brine*
Material CompatibilitySand, Salt, Pre-Wet* & Liquid Brine&Bulk Rock Salt, Pre-Wet* & Liquid Brine*Sand, Salt, Pre-Wet* & Liquid Brine&Bulk Rock Salt, Pre-Wet* & Liquid Brine*
Capacity (Volume)1.5 cu yd1.5 cu yd2.2 cu yd2.2 cu yd
Capacity (Volume)1.15 cu m1.15 cu m1.68 cu m1.68 cu m
Capacity (Weight)3,240 lb3,240 lb4,752 lb4,752 lb
Capacity (Weight)1,469.9 kg1,469.9 kg2,155 kg2,155 kg
Spreading WidthSalt: Up to 36'
Sand: Up to 24'
Salt: Up to 36'Salt: Up to 36'
Sand: Up to 24'
Salt: Up to 36'
Spreading WidthSalt: Up to 10.97 m
Sand: 7.32 m
Salt: Up to 10.97 mSalt: Up to 10.97 m
Sand: 7.32 m
Salt: Up to 10.97 m
Approx. Weight**
(Empty)
723 lb673 lb823 lb793 lb
Approx. Weight**
(Empty)
328 kg305.3 kg373.3 kg360 kg
Hopper Length (A)96.50"96.50"104.50"104.50"
Hopper Length (A)245.1 cm245.1 cm265.4 cm265.4 cm
Bed Length (B)80"80"87"87"
Bed Length (B)203.2 cm203.2 cm221 cm221 cm
Overall Hopper Length (C)108.25"108.25"116.25"116.25"
Overall Hopper Length (C)275 cm275 cm295.3 cm295.3 cm
Reference Diagram
(A-C)
dimensions diagram for poly hoppers - side viewdimensions diagram for poly hoppers - side viewdimensions diagram for poly hoppers - side viewdimensions diagram for poly hoppers - side view
Reference Diagram
(A-C)
dimensions diagram for poly hoppers - side viewdimensions diagram for poly hoppers - side viewdimensions diagram for poly hoppers - side viewdimensions diagram for poly hoppers - side view
Width of Hopper Opening (D)63.50"63.50"63.50"63.50"
Width of Hopper Opening (D)161.3 cm161.3 cm161.3 cm161.3 cm
Height of Hopper w/o Chute (E)46"46"51.50"51.50"
Height of Hopper w/o Chute (E)116.8 cm116.8 cm130.8 cm130.8 cm
Reference Diagram
(D-E)
dimensions diagram for poly hoppers - rearviewdimensions diagram for poly hoppers - rearviewdimensions diagram for poly hoppers - rearviewdimensions diagram for poly hoppers - rearview
Reference Diagram
(D-E)
dimensions diagram for poly hoppers - rearviewdimensions diagram for poly hoppers - rearviewdimensions diagram for poly hoppers - rearviewdimensions diagram for poly hoppers - rearview
Body Side Length7'7'8’8’
Body Side Length213.4 cm213.4 cm243.9 cm243.9 cm
Rec. Bed Length74"74"90"90"
Rec. Bed Length188 cm188 cm228.6 cm228.6 cm
Material Delivery Dimensions16" Wide6" Diameter16" Wide6" Diameter
Material Delivery Dimensions40.6 cm15.24 cm Diameter40.6 cm15.24 cm Diameter
Hopper ConstructionPolyethylene Body, Stainless Steel Drive LinePolyethylene Body, Stainless Steel Drive LinePolyethylene Body, Stainless Steel Drive LinePolyethylene Body, Stainless Steel Drive Line
Hopper ConstructionPolyethylene Body, Stainless Steel Drive LinePolyethylene Body, Stainless Steel Drive LinePolyethylene Body, Stainless Steel Drive LinePolyethylene Body, Stainless Steel Drive Line
Spinner Size16" Diameter16" Diameter16" Diameter16" Diameter
Spinner Size40.6 cm Diameter40.6 cm Diameter40.6 cm Diameter40.6 cm Diameter

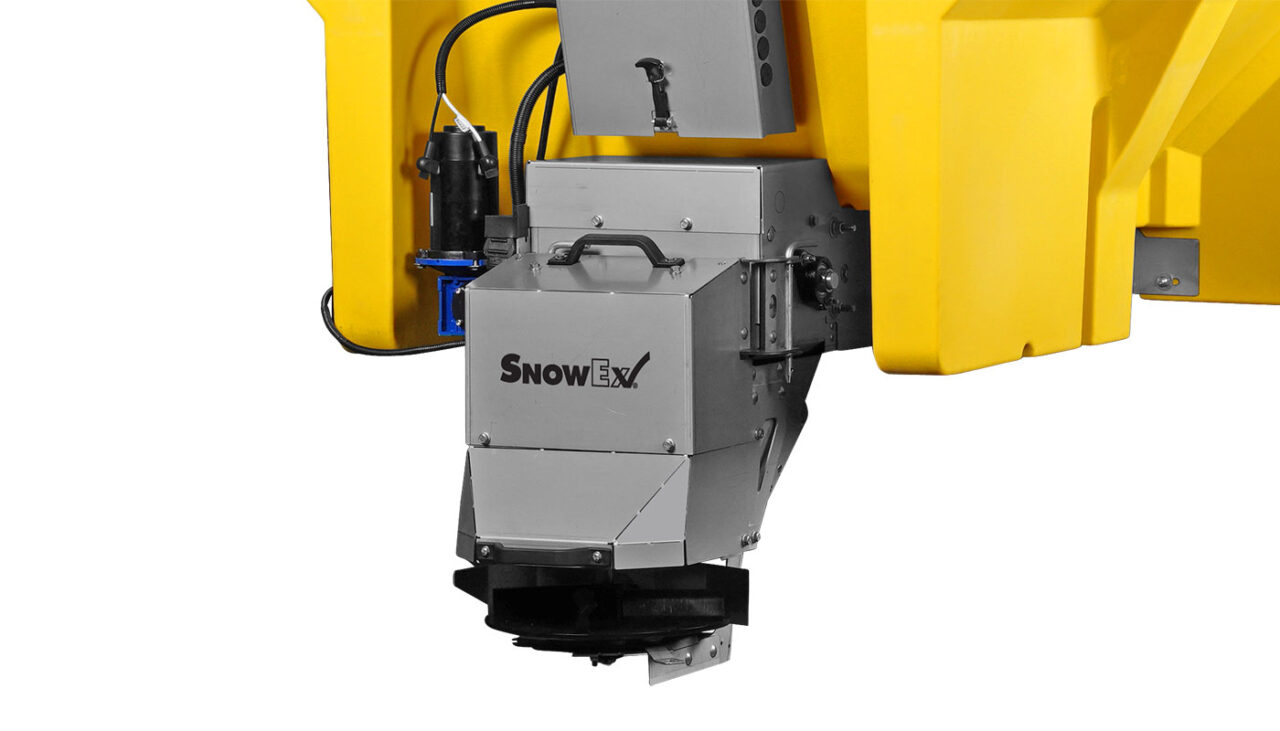

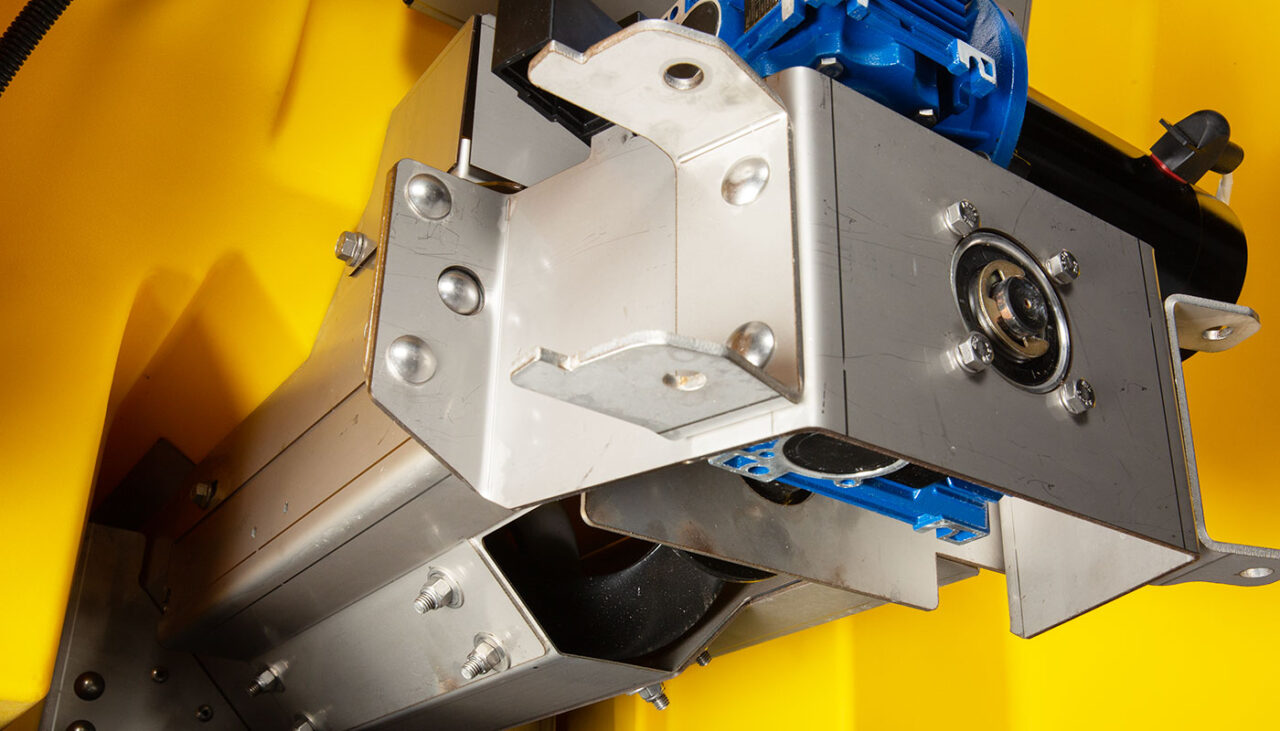

Factory Chute ConfigurationShortShortLongLong

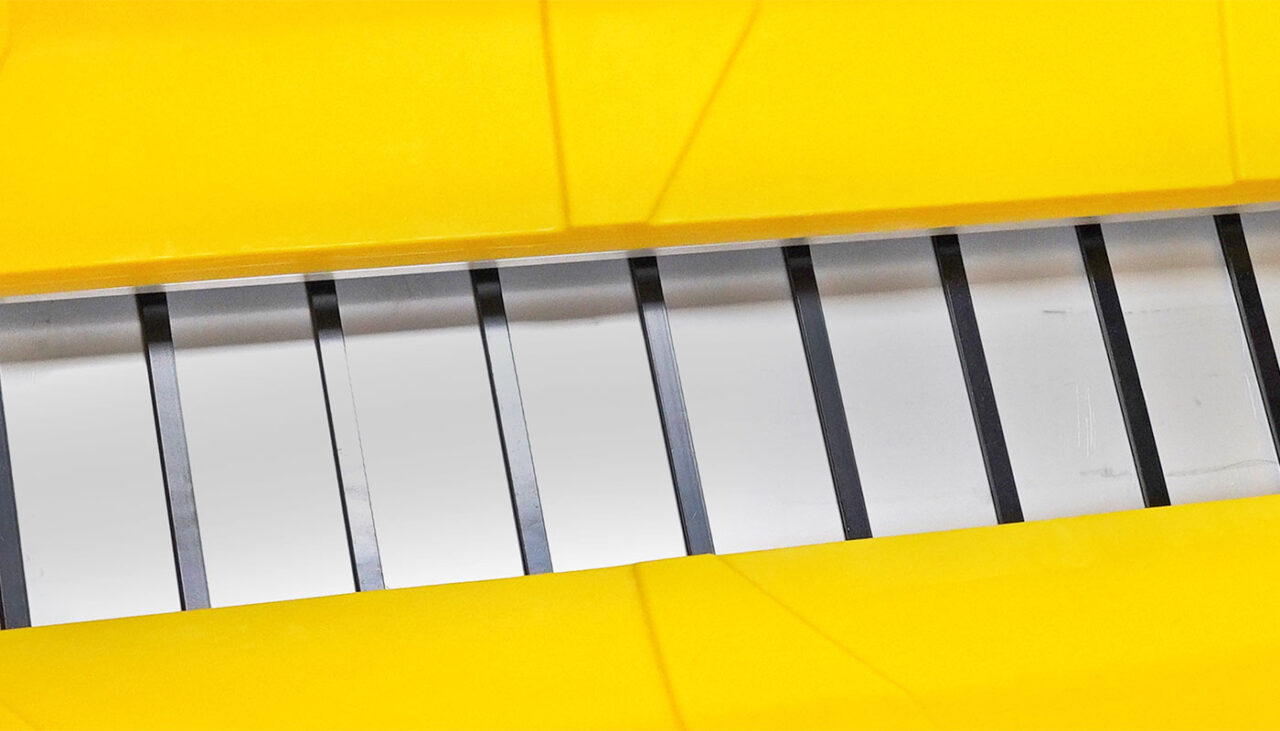

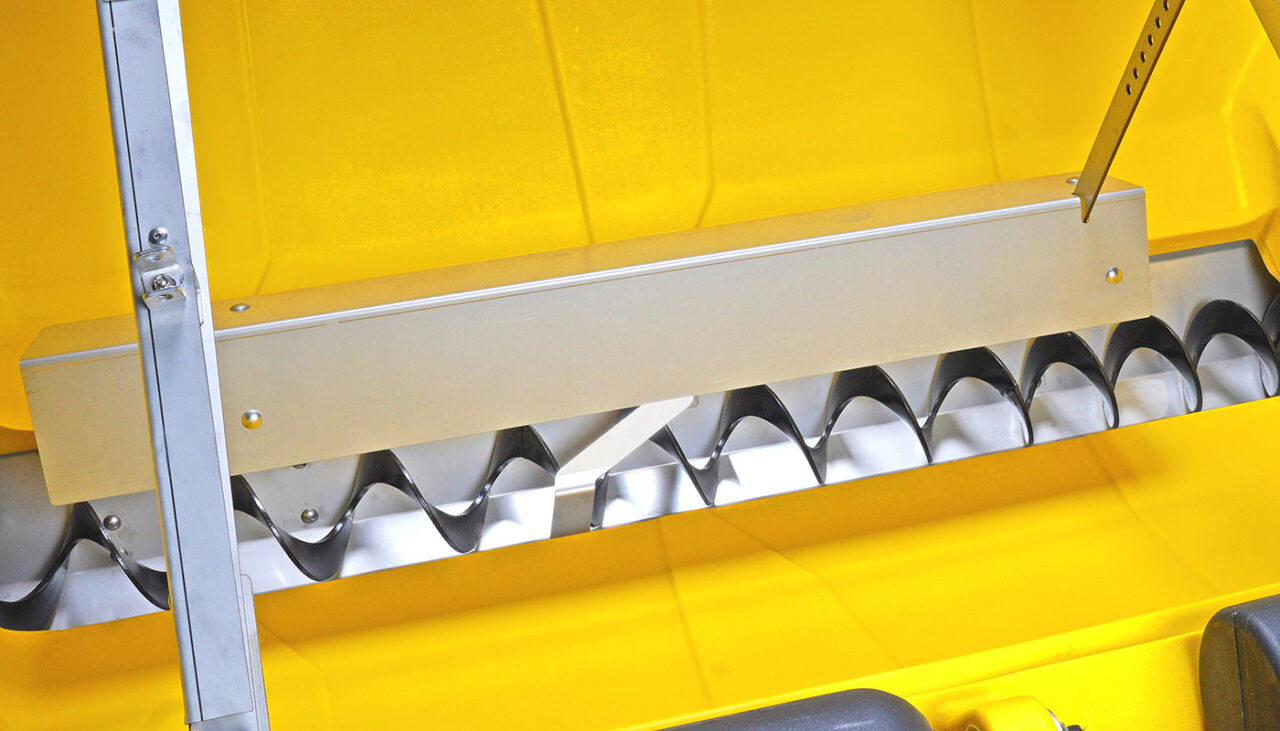

* C = Pintle Chain Conveyor / A = HELIXX Shaftless Auger
* Accessory required for pre-wet and liquid brine
** Material weight equates to approximately 2,160 lb/cu yd or 80 lb/cu ft for 1 bag of rock salt.
