Triple Threat Pre-Wet & Direct Liquid Application System

SAVE MATERIAL &
IMPROVE PERFORMANCE

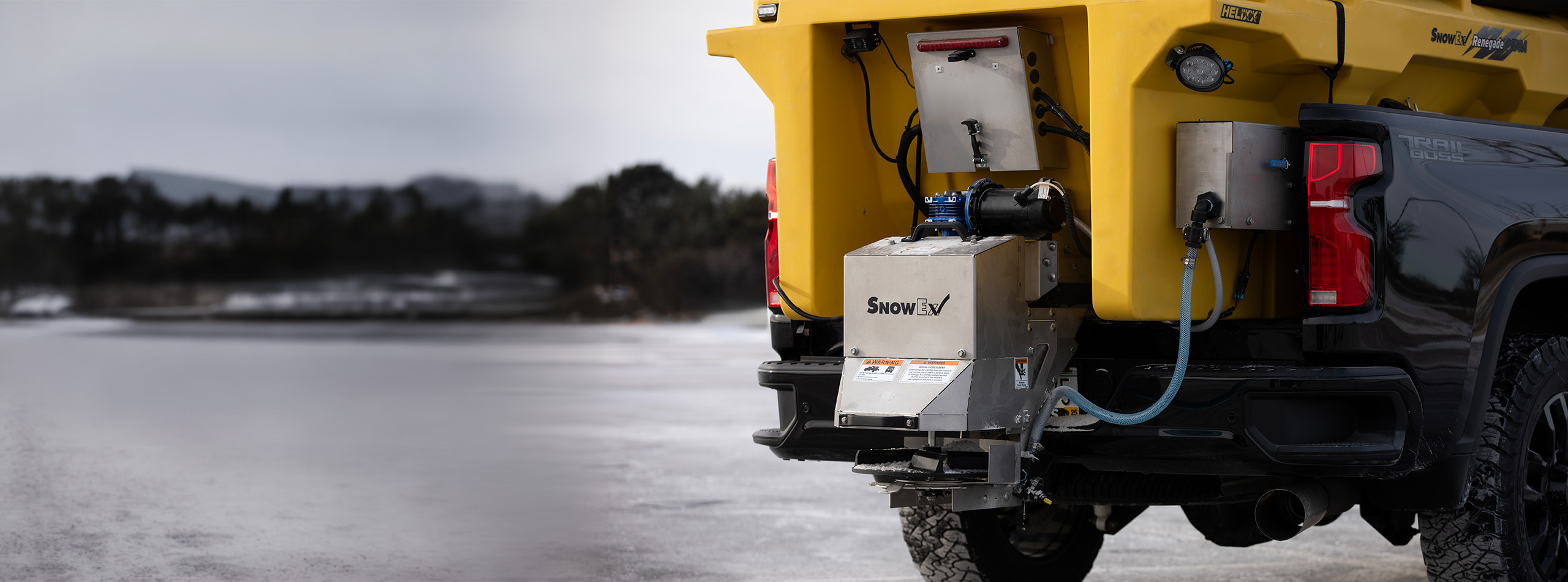

Built for use with SnowEx® Renegade™ 0.7 – 5.0 cu yd spreaders, the triple threat allows you to spread, pre-wet, and spray all with one hopper spreader.

UNIQUE FEATURES

Pre-Wet & Anti-Icing Capabilities

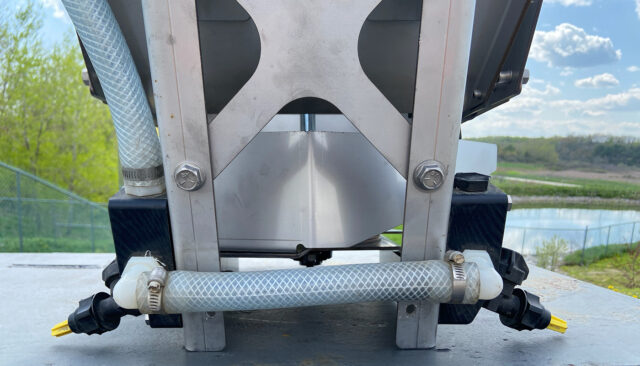

The liquid kits come with a spray bar that can apply brine directly onto the spreading material as it’s being delivered to the spinner for pre-wetting and also includes spray nozzles that can be used for spraying brine directly onto the driving surface for anti-icing applications.

12 volt motor and pump for liquid and pre wet

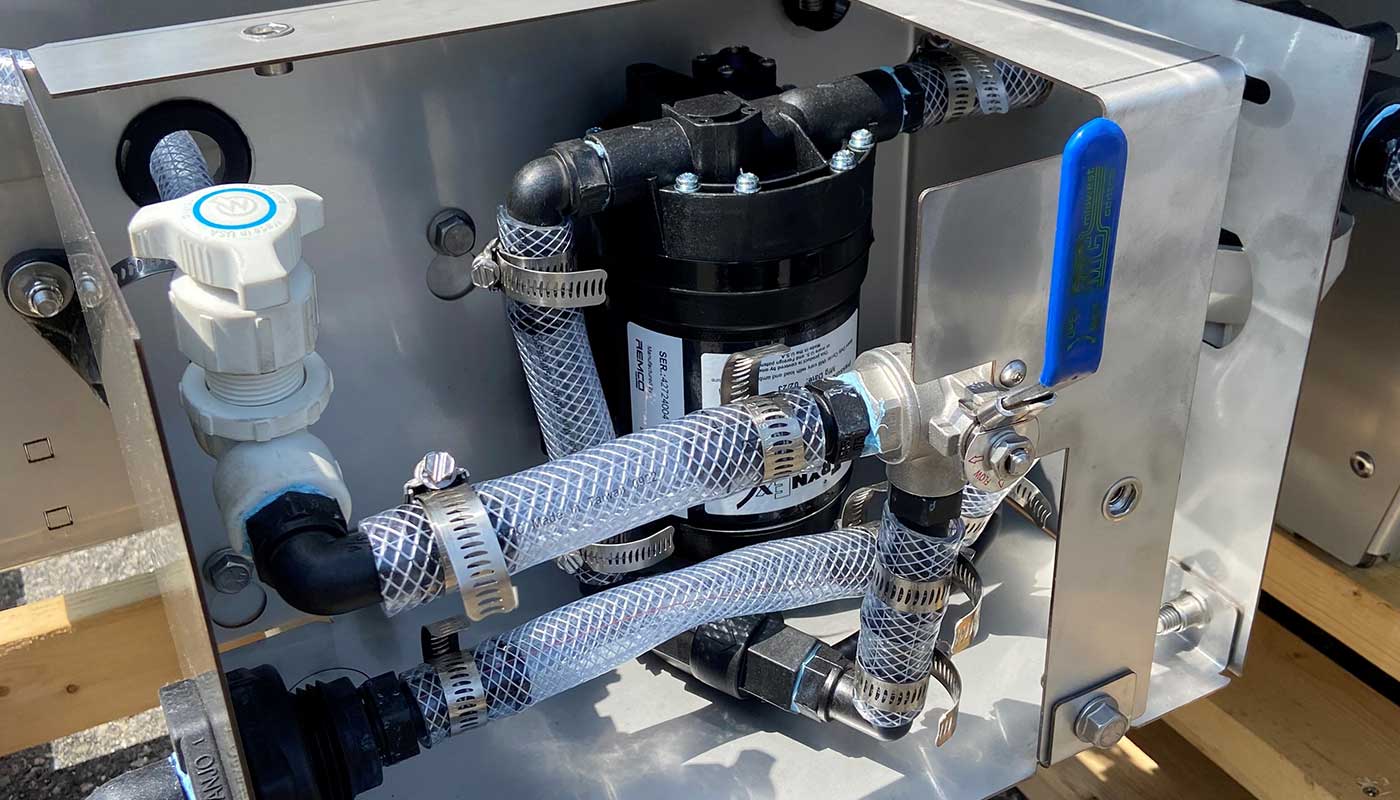

12 Volt Motor & Pump

The 12-volt motor and pump combination provides a 7 gallon per minute pump capacity to ensure sufficient liquid delivery is suitable for either pre-wetting granular material or spraying a direct application. This simple setup results in low maintenance and reliable performance.

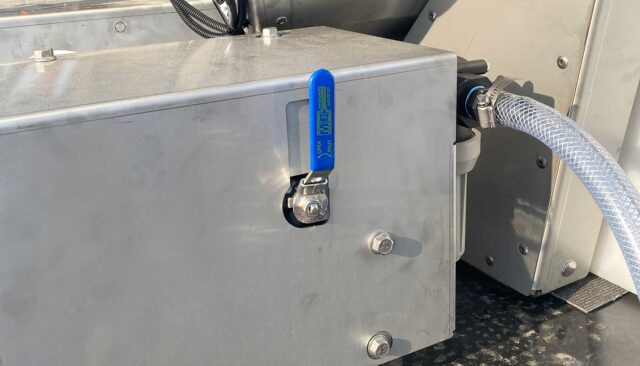

Manual Control Valve

A manual lever on the pump box allows the operator to quickly and easily switch between pre-wet or direct liquid application mode when the accessory system is active.

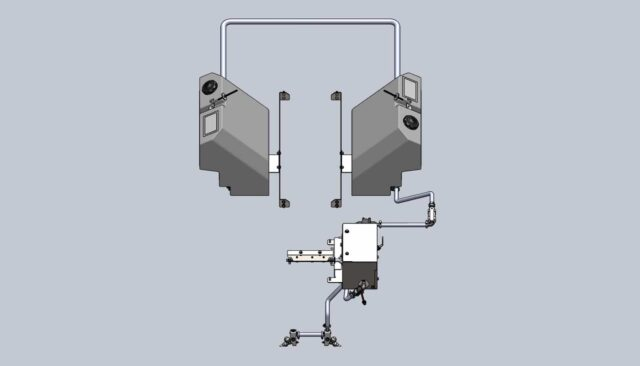

50 Gallon Configuration

Adds 50 gallons of brine capacity (two 25 gallon tanks) to the 0.7, 1.5, and 2.2 cu yd Renegade hopper spreaders for pre-wet and anti-icing capabilities. Suitable for the ¾ and 1-ton vehicle applications.

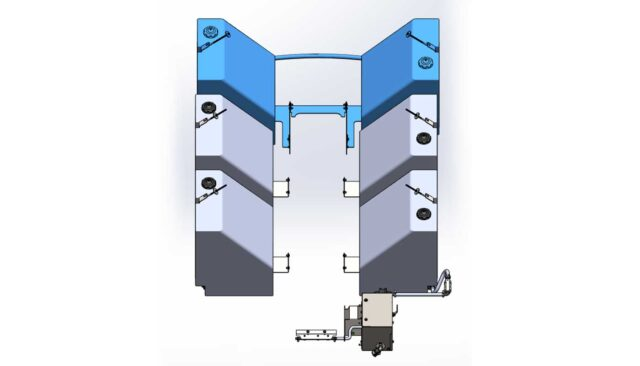

200 Gallon Configuration

Adds 200 gallons of brine capacity (four 50 gallon tanks) to the 3.0, 4.0 or 5.0 cu yd Renegade hopper spreaders for pre-wet and anti-icing capabilities. Sized to support larger flatbed vehicle applications.

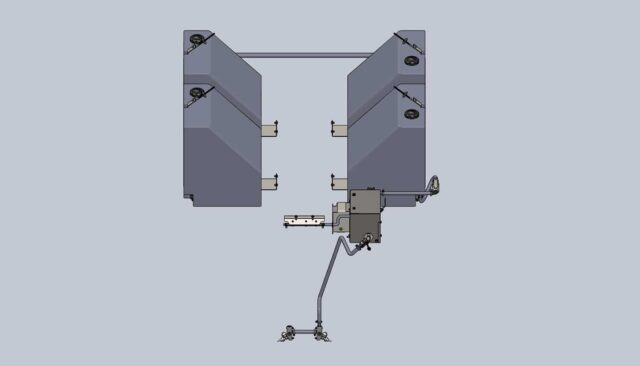

300 Gallon Configuration

Expand to 300 gallons of brine capacity (200 gallon system that includes four 50 gallon tanks, plus an additional 100 gallon expansion) for the 3.0, 4.0 or 5.0 cu yd Renegade hopper spreaders for pre-wet and anti-icing capabilities. Sized to support larger flatbed vehicle applications and handle the largest jobs with the greatest efficiency.

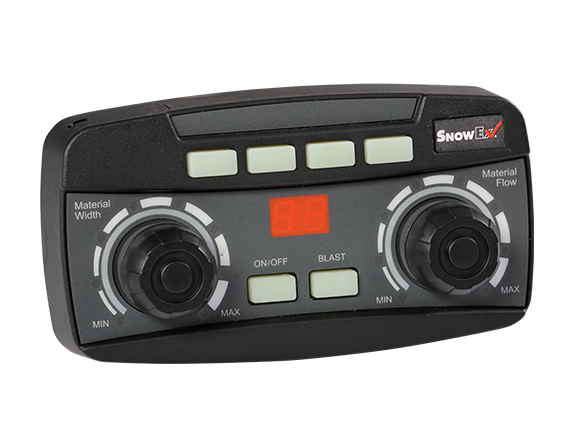

Speed Control

Integrated Control

Reduce cab clutter and training ease by using the On/Off accessory control integrated seamlessly into the Renegade spreader control.

Specifications

Selecting a model updates product features and specs below.

Metric
Specification 85689 93265-1 93270 93275
Capacity 50 Gallons 50 Gallons 200 Gallons 100 Gallons Expansion
Spreader Compatibility Renegade
S070A / S070C
Renegade
S150A / S150C
S220A / S220C
P150A / P150C
P220A / P220C
Renegade
S150A / S150C
S220A / S220C
P150A / P150C
P220A / P220C
Renegade
S300A / S300C
S400A / S400C
S500A / S500C
Renegade
S300A / S300C
S400A / S400C
S500A / S500C
Overall Dimensions (LxWxH) 64″ x 60″ x 26″ 64″ x 60″ x 26″ 64″ x 72″ x 36″ 26″ x 72″ x 28″
Tank Dimensions (LxWxH) 26″ x 60″ x 23″ 26″ x 60″ x 23″ 58″ x 72″ x 23″ 26″ x 72″ x 28″
