RDV™
V-Plow

Quick Specs

Select a model:

7'6", Stainless Steel 7'6", Powder-Coated Steel

7'6" Blade Width
539 lbs Approx. Weight
6'7" Plowing Width (Full Angle)

Fits: Half-Ton Trucks & Tractors
#: 77790, 77795

Does this Plow fit my vehicle?

Verify compatibility and part number information

More Power. Less Weight. All Hustle.

The SnowEx^® RDV™ v-plow is engineered specifically for half-ton trucks, packing the power of a professional-grade plow into a lightweight, high-strength frame. Built with low-alloy steel that’s stronger than traditional steel, these plows are ready to dominate any job. Available in both powder-coated steel and stainless steel, they’re designed for a perfect fit on the most popular truck models. This is how you clear snow quicker to own the winter.

Compatible with Trucks & Tractors

Unique Features

What Sets RDV™ Apart

Blade Construction

27″ (center) and 31″ (out edges) tall, flared wing moldboard in 7’6″ width
14-gauge, powder coated or stainless steel
⅜” x 6″ steel cutting edge comes standard and provides long-lasting performance
70-degree attack angle delivers a clean scrape

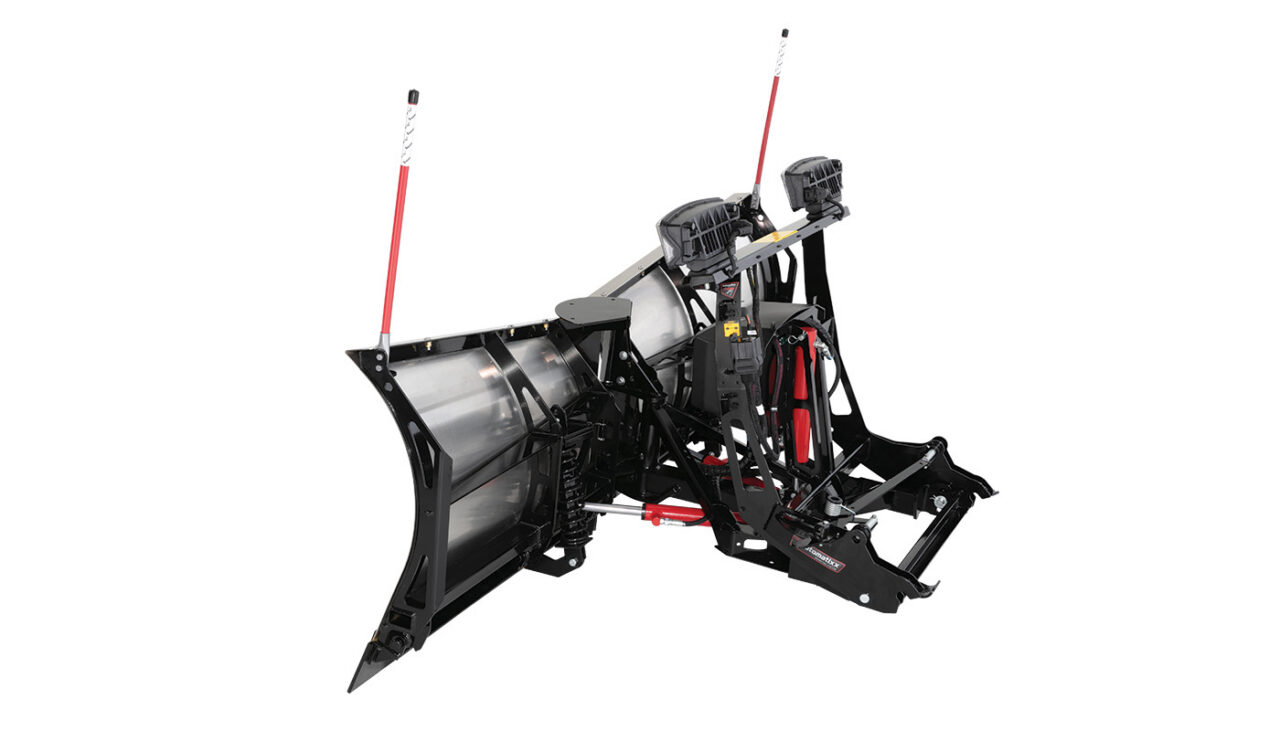

Structural Reinforcement

6 vertical ribs (2 additional horizontal ribs on stainless steel model) add strength and protect against blade twisting
A formed base channel is the backbone of the plow, built with high-strength steel and multiple angles for extra stability

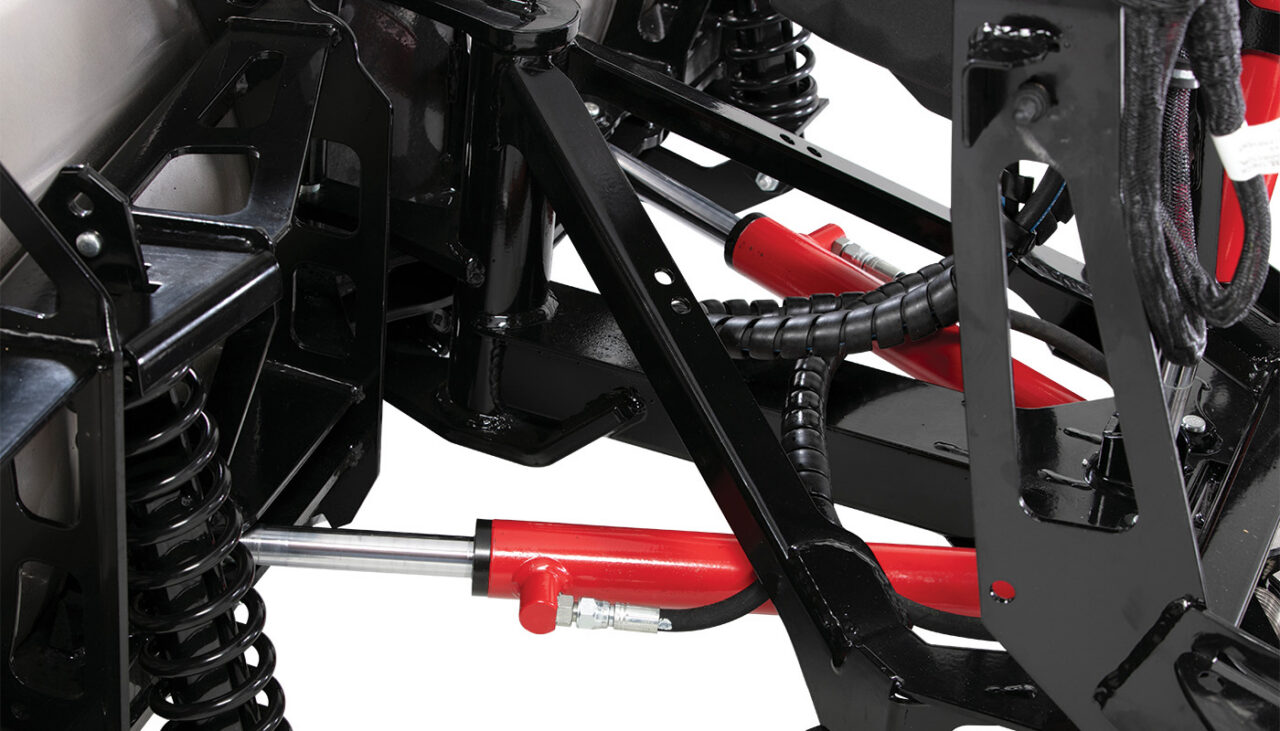

Double-Acting Angle Cylinders

Double-Acting Angle Cylinders

Durable double-acting angle cylinders push and pull the wings forward and back under the heaviest snow loads. They also can hold the wings firmly in place for optimum back dragging performance.

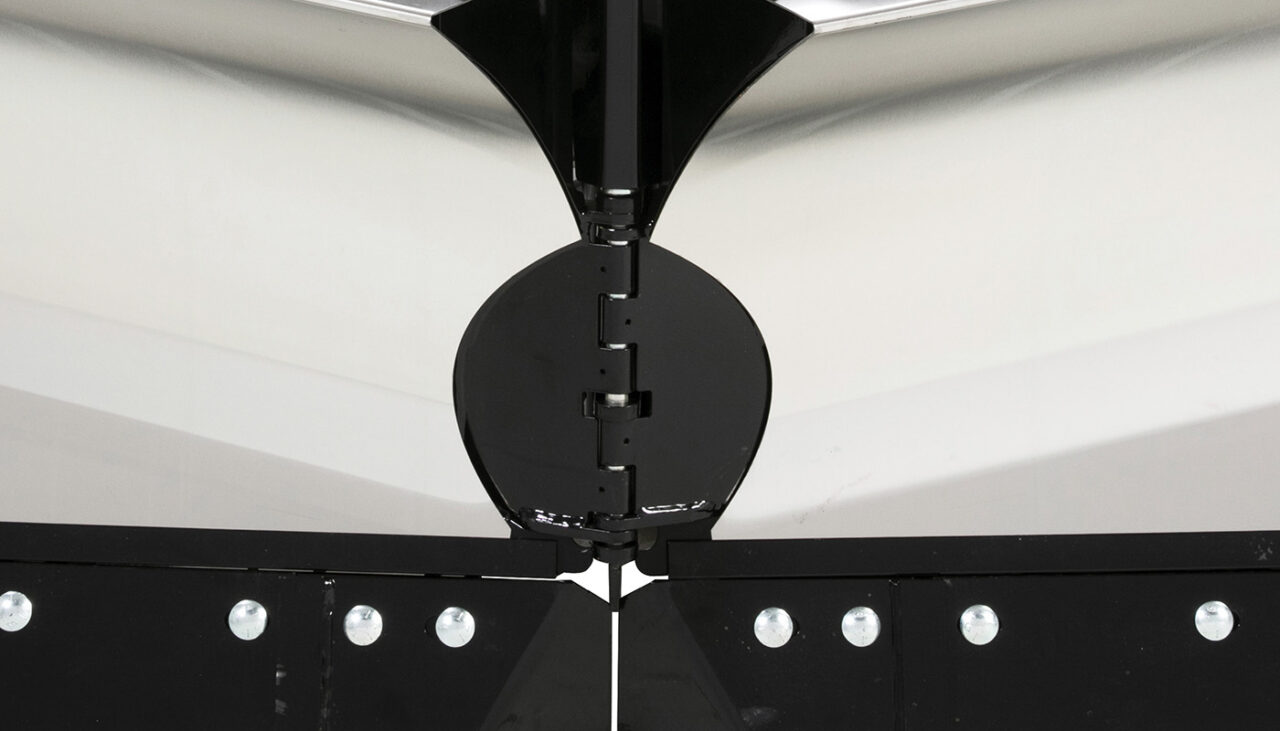

Adjustable Width Configuration

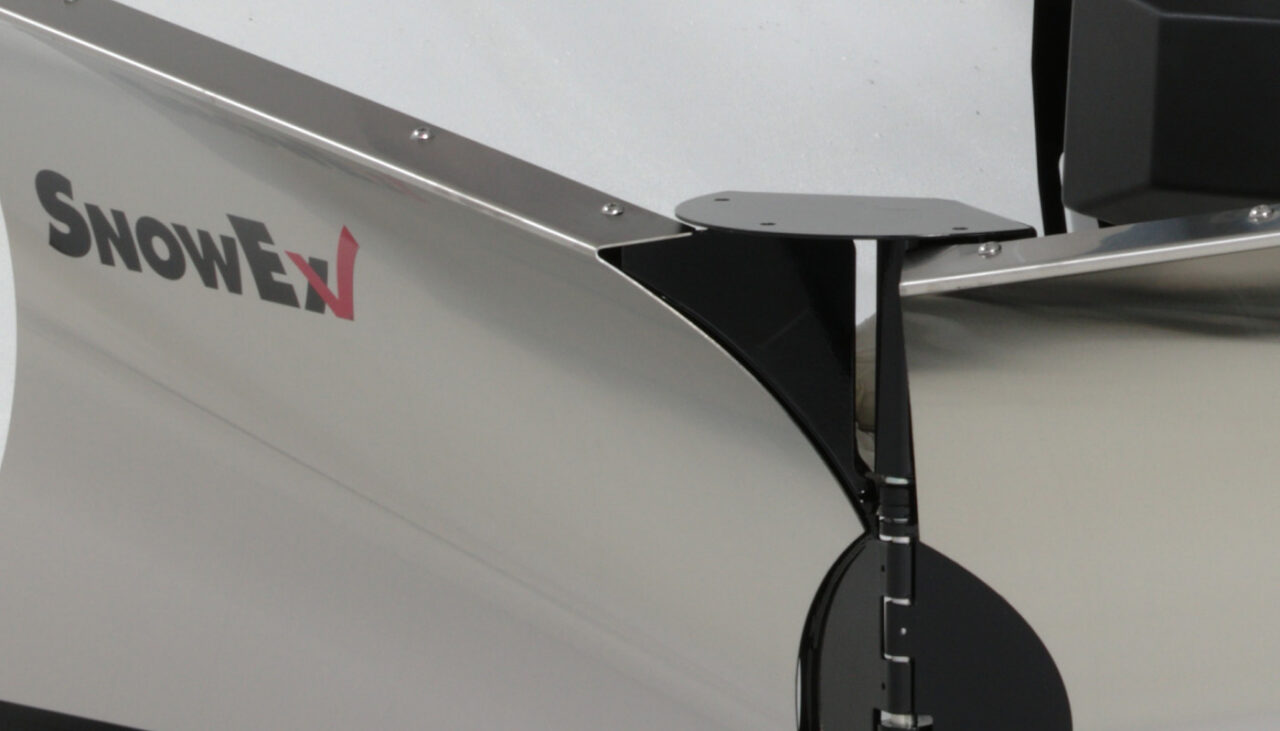

Snow Catcher

Universal Features

Every SNOWEX snowplow includes

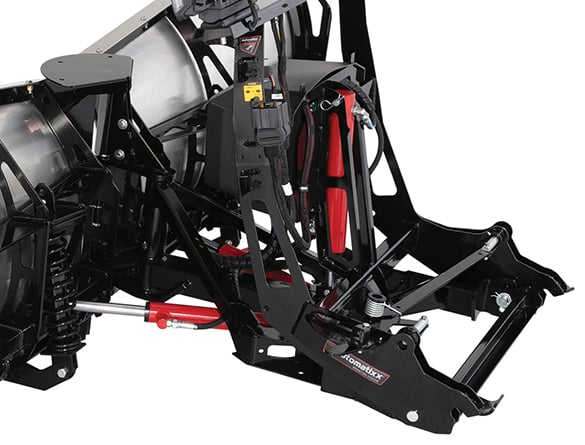

Automatixx® Attachment System

The Automatixx attachment system provides fast and easy snowplow hook-up that can all be handled from one side of the truck. Includes removable receiver brackets.

See Details

SCRAPE MAXX™ Down-Force Kit

Scrape Maxx™ is an exclusive, standard feature on SnowEx truck plows, applying downward force to maximize scrape performance.

See Details

Trip-Edge Protection

Independent trip edge protects the plow, truck, and operator when encountering obstacles (in scoop, V, or straight). Since only the edge trips, snow loss is minimized.

Direct Lift

Direct lift systems provide rapid plow response, fewer moving parts, and a full range of motion for efficient stacking.

Hydraulics

Custom designed and built in-house, the snowplow’s responsive, super-fast hydraulics provide quick maneuvering in the field.

FLEET FLEX Electrical System

The FLEET FLEX electrical system provides complete fleet interchangeability. Any SnowEx plow can be used on any truck.

POWERCOAT Finish

Our high-performance, multi-stage powder coat system provides a long-lasting, maintenance-free finish.

SECURITY GUARD™

The SECURITY GUARD™ anti-theft system electronically locks your plow from unauthorized use when detached from truck.

Standard Options

Headlights & Controls

Controls

STANDARD OPTION

Handheld Control

Option Included with Snowplow Purchase

Choose the POWER GRIP™ handheld control with backlit buttons, power/float LEDs, and FLEET FLEX enablement. Its intuitive design makes raising, lowering, and angling the blade effortless, supported by in-house custom hydraulics and a direct-lift system for efficient stacking and transport.

STANDARD OPTION

Joystick Control

Option Included with Snowplow Purchase

Choose the compact joystick control featuring power/float LEDs and FLEET FLEX enablement. It delivers precise blade and wing maneuverability at your fingertips, backed by in-house custom hydraulics and a responsive direct-lift system for efficient stacking and transport.

Accessories

View All Accessories

Back Drag Edges

Part Numbers

Part Number

#44281-4

Easy bolt-on installation, back drag edges deliver cleaner, consistent scraping and back dragging in tight areas.

*Back Drag Edge and Shoe Kits cannot be used simultaneously.

Close-up of a black metal trailer jack foot plate attached to a vertical jack post, shown on a light-colored surface. The trailer jack features adjustment holes and is secured with a locking pin for stability.

Shoe Kit

Part Numbers

Part Number

#74519

Shoe assembly kits let you set the scraping height of the blade, extending the life of the cutting edge.

*Back Drag Edge and Shoe Kits cannot be used simultaneously.

Close-up of a black metal mechanical part with a red hydraulic cylinder attached, resting on a light-colored textured surface. The sturdy construction showcases durable engineering.

Blade Stop Kit

Part Numbers

Part Number

#74528

Be prepared for any plowing condition with a blade stop kit, designed to transfer extreme impacts throughout the blade structure to reduce stress on the hydraulics.

Close-up of a black metal bracket with bolts and square holes, attached to a flat metallic surface, positioned against a light gray background for precise equipment mounting.

Curb Guard Kits

Part Numbers

Part Number

#43885

Bolt-on curb guards protect the outer edge of your plow from wear associated with curbs and sidewalks.

Specifications

Metric

Specification	77795	77790
Blade Width	7'6"	7'6"
Approx. Weight	539 lbs	493 lbs
Plowing Width (Straight)	Straight: 7'6" V: 6'3" Scoop: 6'9"	Straight: 7'6" V: 6'3" Scoop: 6'9"
Plowing Width (Full Angle)	6'7"	6'7"
Blade Height	At Center: 27" At End: 33"	At Center: 27" At End: 33"
Angle Cylinders	1.5" x 12"	1.5" x 12"
Cutting Edge	⅜" x 6" (Standard)	⅜" x 6" (Standard)
Blade Thickness	14 ga	14 ga

Specification	77795	77790
Moldboard Options	Stainless Steel	Powder-Coated Steel
Blade Type	V-Plow	V-Plow
Vehicle Compatibility	Half-Ton Trucks & Series 3 Tractors	Half-Ton Trucks & Series 3 Tractors
Reinforcement Ribs	6 Vertical 2 Horizontal	6 Vertical
Trip Springs	2	2
