Light Truck
Straight Blade Plow
Quick Specs
Select a model:
- 6'8" Blade Width
- 306 lbs Approx. Weight
- 5'11" Plowing Width (Full Angle)
- 7'2" Blade Width
- 313 lbs Approx. Weight
- 6'4" Plowing Width (Full Angle)
- Fits: Jeeps & Mid-Size Pickups
- #: 6800LT, 7200LT
Verify compatibility and part number information
Plow Like a Pro, in a Lightweight Vehicle
Don’t let a smaller truck hold you back. SnowEx® Light-Duty straight blade plows pack all the professional power you need into a light package built for jeeps, SUVs, and mid-size pickups. This lightweight snowplow brings serious plowing performance to vehicles with restrictive weight requirements. Engineered to dominate tight spaces and clear driveways fast.
Compatible with Trucks
Unique Features
Blade Construction
- 23½″ tall moldboard available in 6’8″ and 7’2″ widths
- 16-gauge, powder coated steel
- ¼” x 5″ steel cutting edge comes standard and provides long-lasting performance
- 70-degree attack angle delivers a clean scrape

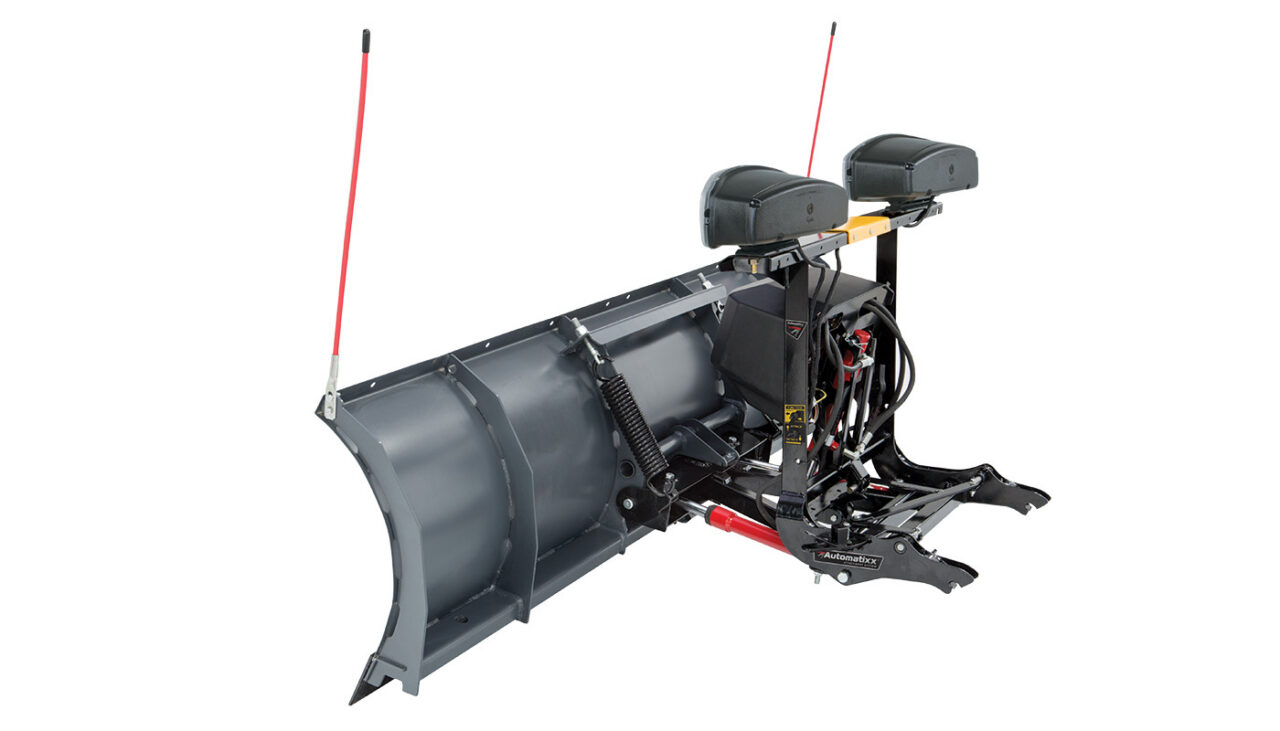

Structural Reinforcement
- A full-trip moldboard with two coil springs helps protect you, your plow, and your truck when striking obstacles
- 6 vertical ribs add strength and protect against blade twisting
- A formed base channel is the backbone of the plow, built with high-strength steel and multiple angles for extra stability
Universal Features
Direct Lift
Full-Trip Moldboard
Hydraulics
FLEET FLEX Electrical System
POWERCOAT Finish
SECURITY GUARD™
Accessories
10" Rubber Deflector Kit
Part NumbersPart Number
Enhance snow containment, and prevent it from blowing onto the windshield, with a SnowEx rubber deflector.
Shoe Kit
Part NumbersPart Number
Shoe assembly kits let you set the scraping height of the blade, extending the life of the cutting edge.
Curb Guard Kit
Part NumbersPart Number
Bolt-on curb guards protect the outer edge of your plow from wear associated with curbs and sidewalks.
Steel Cutting Edges
Part NumbersPart Number
Built for the long haul, SnowEx® plows offer thicker steel cutting edges for enhanced wear resistance over time.
Specifications
Selecting a model updates product features and specs below.
| Specification | 77700 | 77705 |
|---|---|---|
| Blade Width | 6'8" | 7'2" |
| Approx. Weight | 306 lbs | 313 lbs |
| Plowing Width (Straight) | 6'8" | 7'2" |
| Plowing Width (Full Angle) | 5'11" | 6'4" |
| Blade Height | 23.5" | 23.5" |
| Angle Cylinders | 1" | 1" |
| Cutting Edge | ¼" x 5" (Standard) | ¼" x 5" (Standard) |
| Blade Thickness | 16 ga | 16 ga |
| Specification | 77700 | 77705 |
|---|---|---|
| Smart Model Number | 6800LT | 7200LT |
| Moldboard Options | Powder Coated Steel | Powder Coated Steel |
| Blade Type | Straight Blade | Straight Blade |
| Vehicle Compatibility | Jeeps & Mid-Size Pickups | Jeeps & Mid-Size Pickups |
| Reinforcement Ribs | 6 | 6 |
| Trip Springs | 2 steel | 2 steel |
