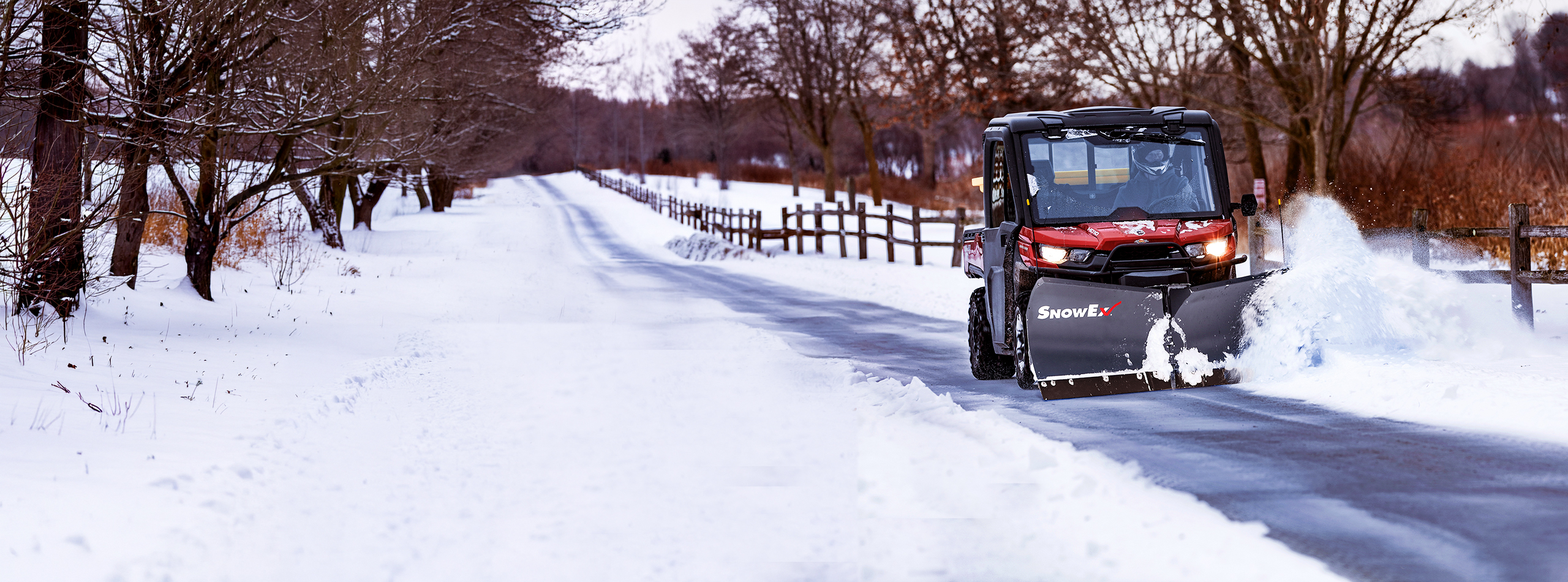

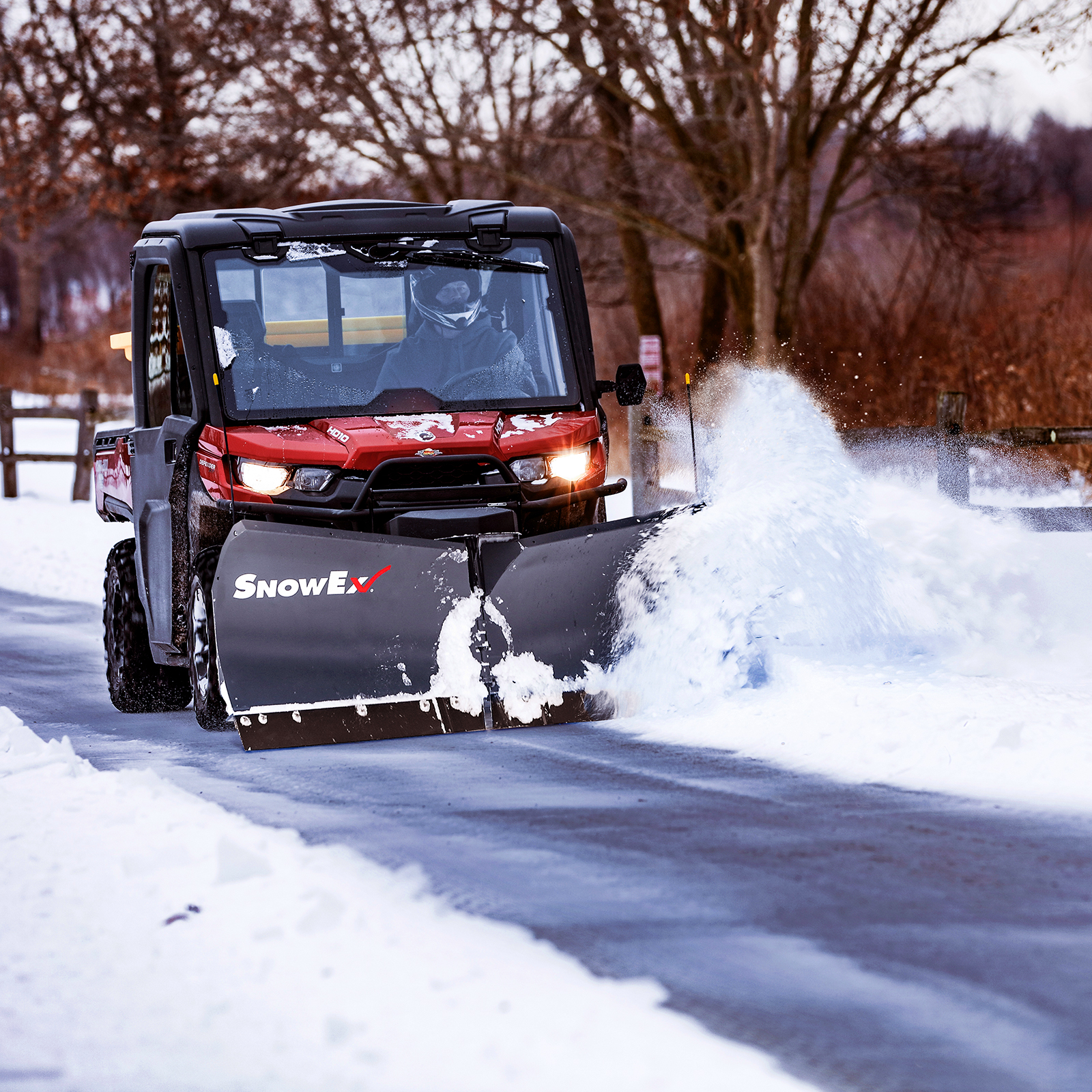

A utility vehicle with a SnowEx plow attachment clears snow from a road on a crisp winter day, with trees and a fence in the background.

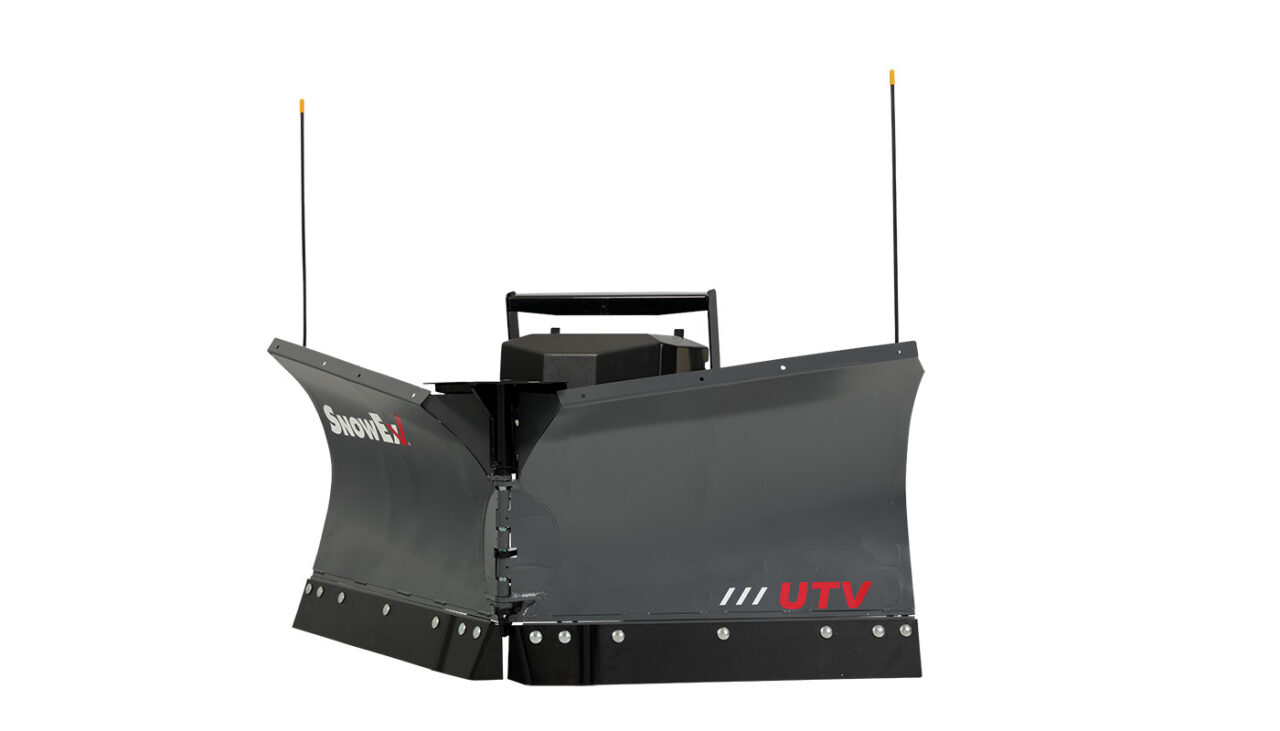

Heavy-Duty UTV
V-Plow

Quick Specs

6'0" Blade Width
355 lbs Approx. Weight
5'/5'6" (5'7/6'1" W/ Wings) Plowing Width (Full Angle)

Fits: Full Sized UTVs & Sub-Compact Tractors
Moldboard: High-Strength or Powder-Coated Steel
#: 77765

Does this Plow fit my vehicle?

Verify compatibility and part number information

BUilt to Dominate, Designed to Fit

Turn your UTV or subcompact tractor into a snow-removal powerhouse with the SnowEx^® Heavy-Duty V-Plow. With a touch of a button, this plow quickly configures from a straight blade to scoop mode to v-plow mode, giving you the versatility you need to dominate any job. At 6-feet wide, it’s designed to handle sidewalks, walking paths, driveways, and other tight spaces with ease. This is how you take charge and build your business, one sidewalk at a time.

Compatible with UTVs & Tractors

Unique Features

What Sets Heavy-Duty UTV V-Plow Apart

Blade Construction

2’ tall moldboard available in 6’ width
14-gauge, powder coated steel
¼” x 5″ steel cutting edge comes standard and provides long-lasting performance
70-degree attack angle delivers a clean scrape
Blade is stable in the V position for attaching or detaching, no stand needed

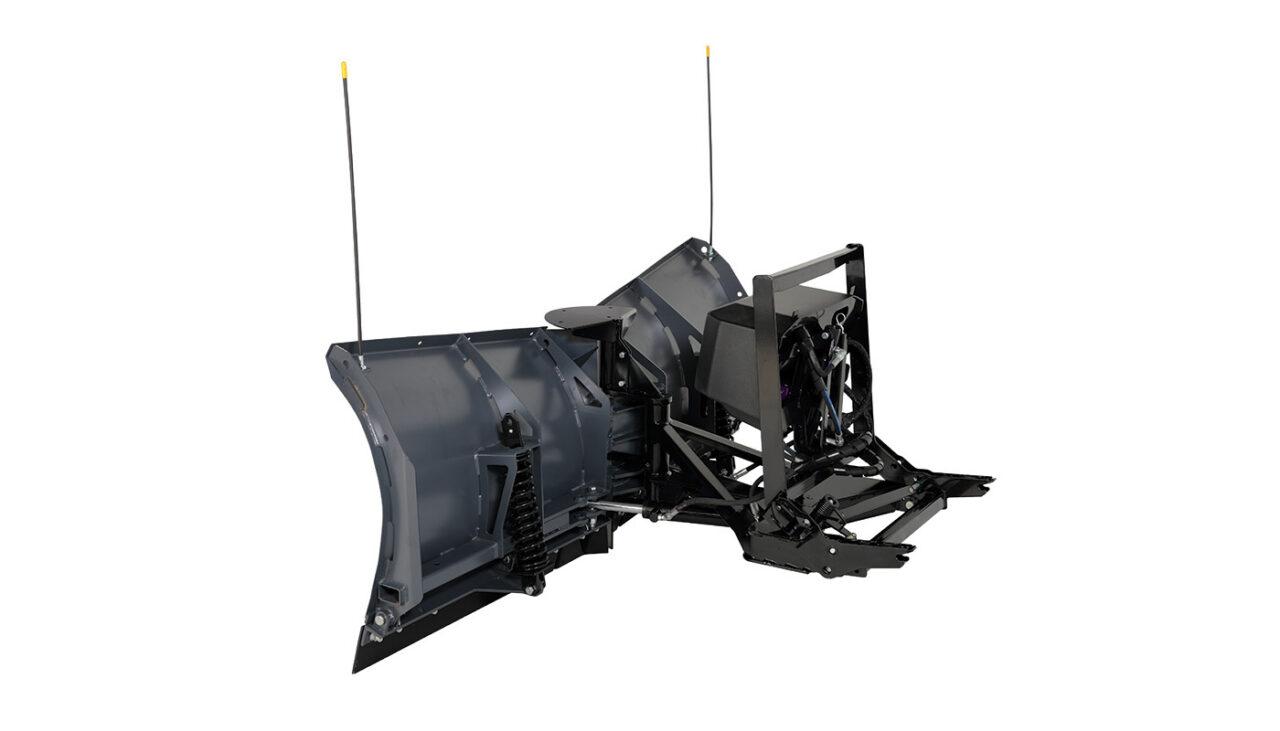

Structural Reinforcement

6 vertical ribs add strength and protect against blade twisting
High-strength, low alloy steel construction, built for commercial operation yet lightweight, keeping stress off UTV frame
3/4″ diameter, steel center pin resides within a three-connection-point hinge, keeping wings tight for reliable control

Allows operation of each wing independently or to lock the wings together for efficient straight blade operation and clean back dragging.

When angled for windrowing, the leading wing directs more snow into the moldboard to eliminate spill-off. Adjustable to 5’0″ or 5’6″ widths.

In order to put the plow in scoop mode, you’ll need to angle the wings forward. Adjustable to 4’7″ or 5’1″ widths.

By angling the wings backwards, you can put the plow in V position. Adjustable to 5’0″ and 5’6″ widths.

Gap can be adjusted to help prevent snow from slipping between pivot edges.

Receivers simplify attachment and are removable when not in use. This enhances ground clearance and ramp angle when using the vehicle during other seasons or when not plowing.

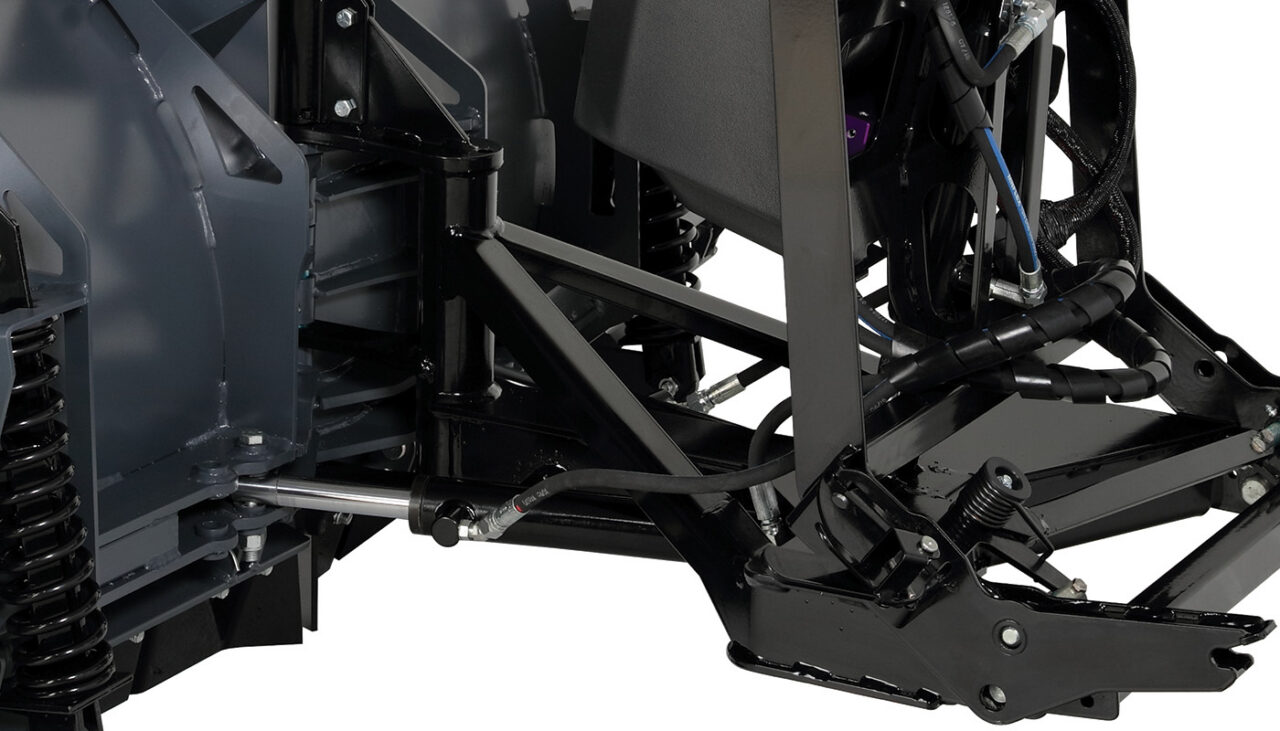

Double Acting Cylinders

Allows operation of each wing independently or to lock the wings together for efficient straight blade operation and clean back dragging.

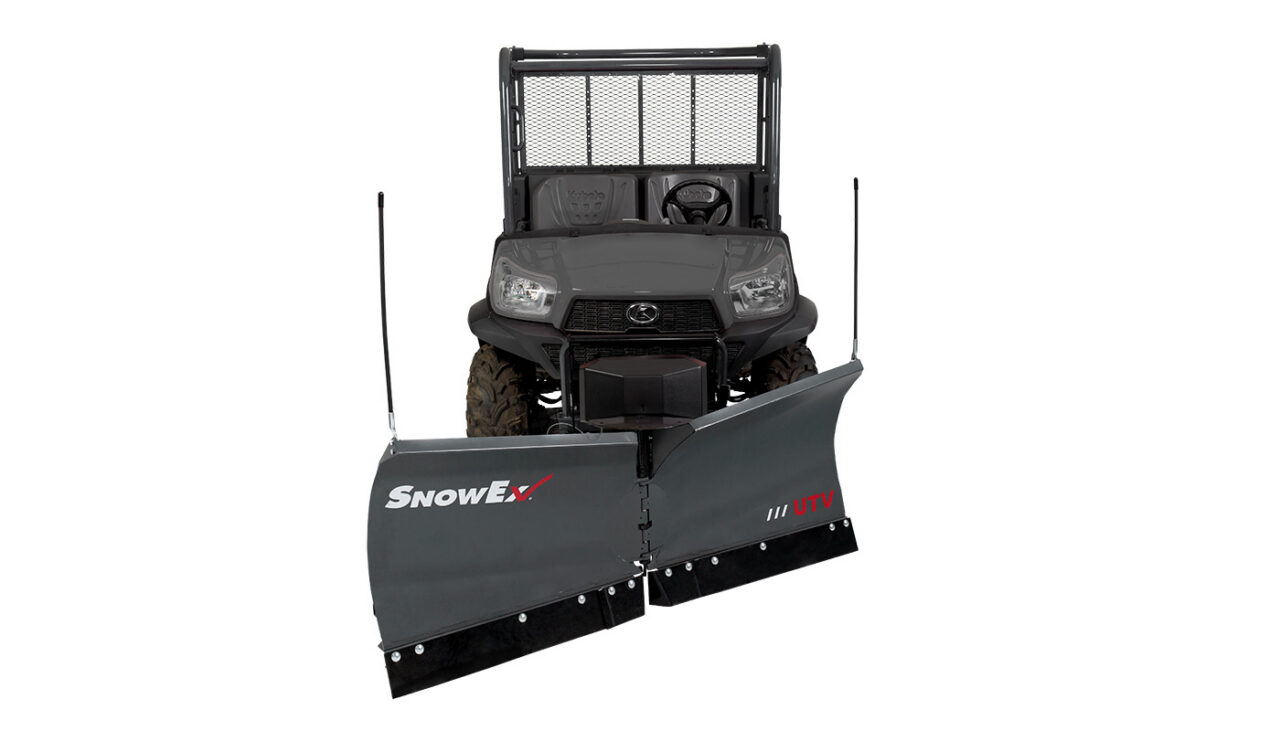

Windrowing Position

When angled for windrowing, the leading wing directs more snow into the moldboard to eliminate spill-off. Adjustable to 5’0″ or 5’6″ widths.

heavy-duty utv v-plow bucket blade scoop

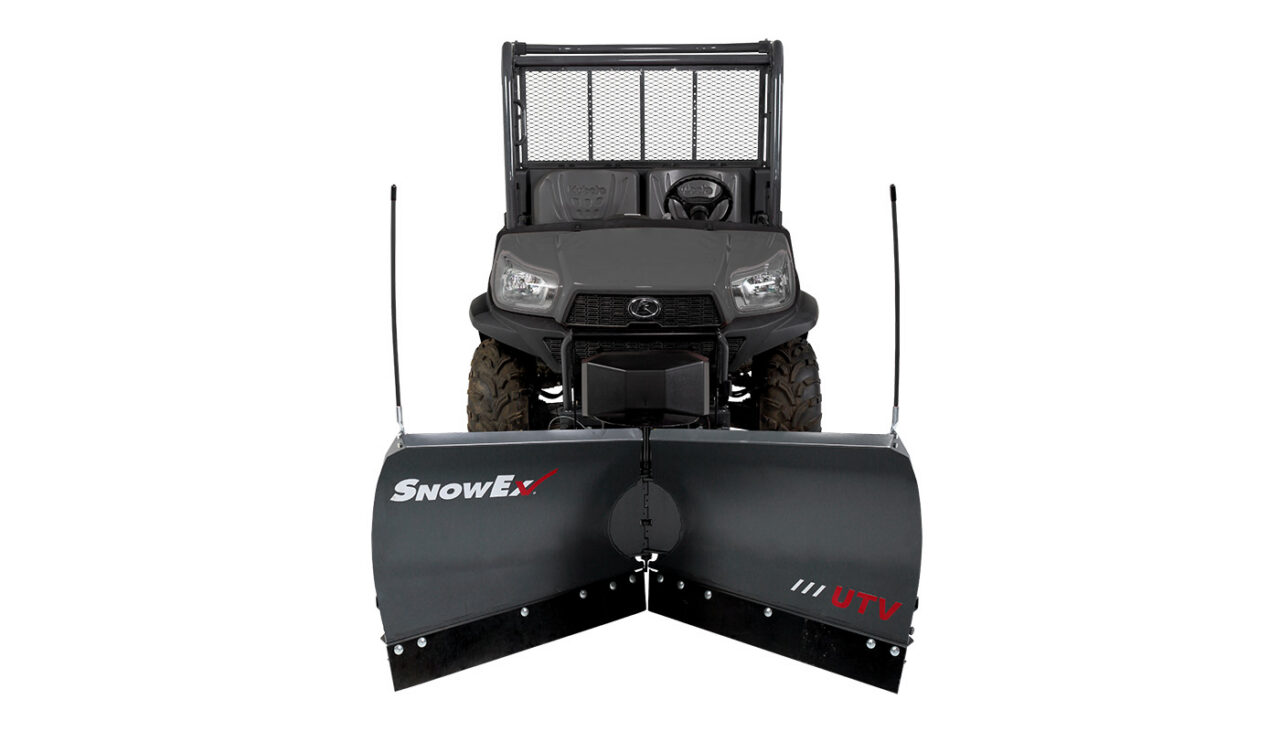

BUCKET BLADE™ Scoop Position

In order to put the plow in scoop mode, you’ll need to angle the wings forward. Adjustable to 4’7″ or 5’1″ widths.

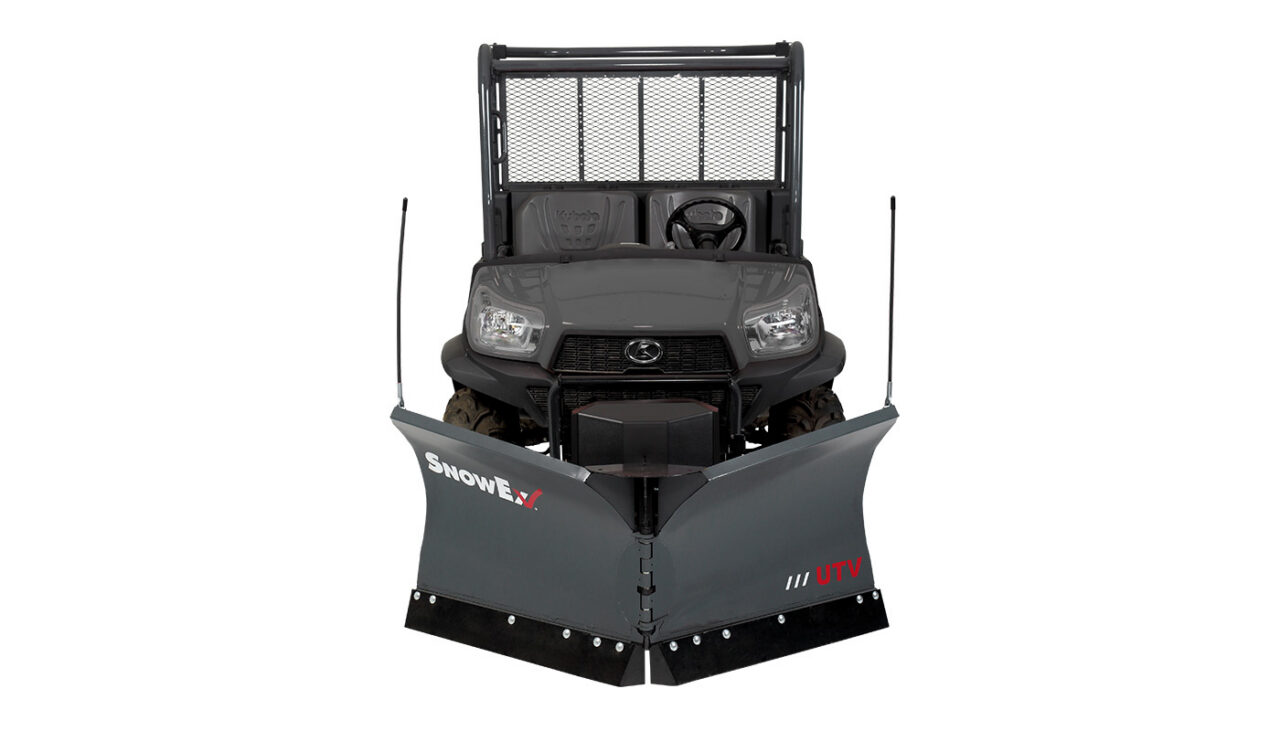

V Position

By angling the wings backwards, you can put the plow in V position. Adjustable to 5’0″ and 5’6″ widths.

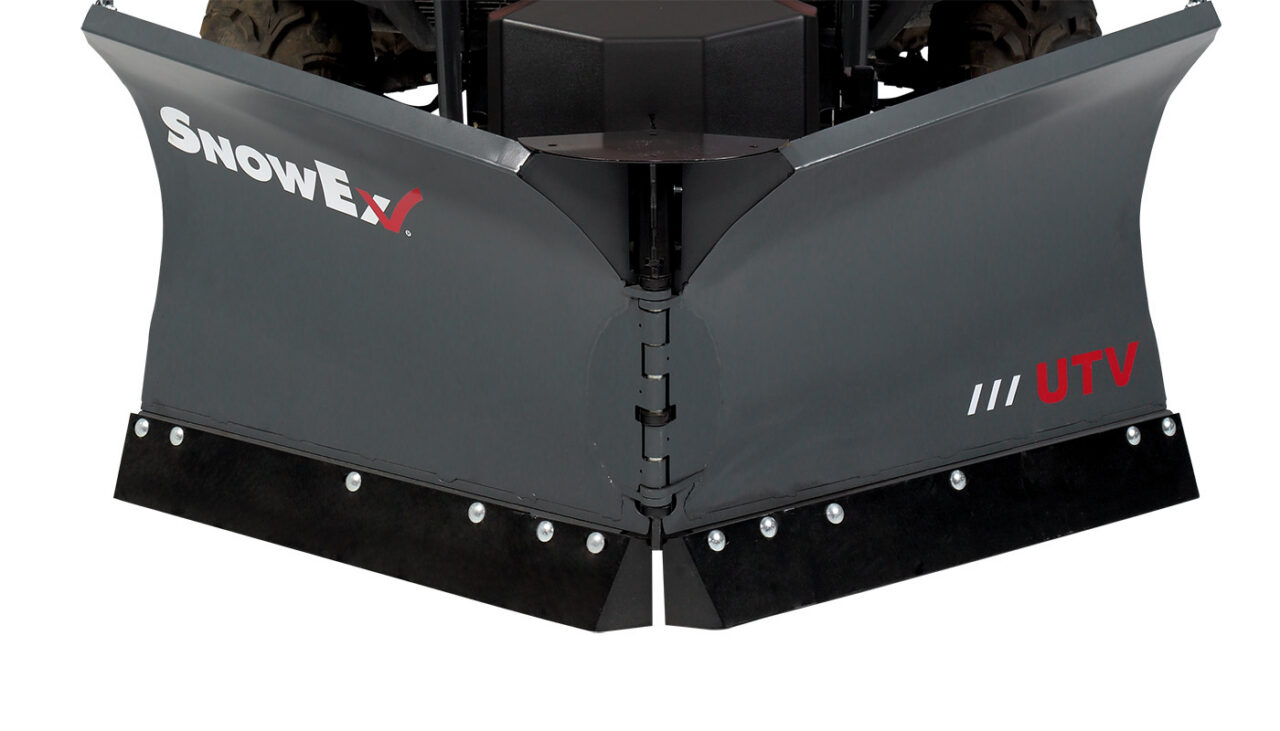

Adjustable Center Cutting Edge

Gap can be adjusted to help prevent snow from slipping between pivot edges.

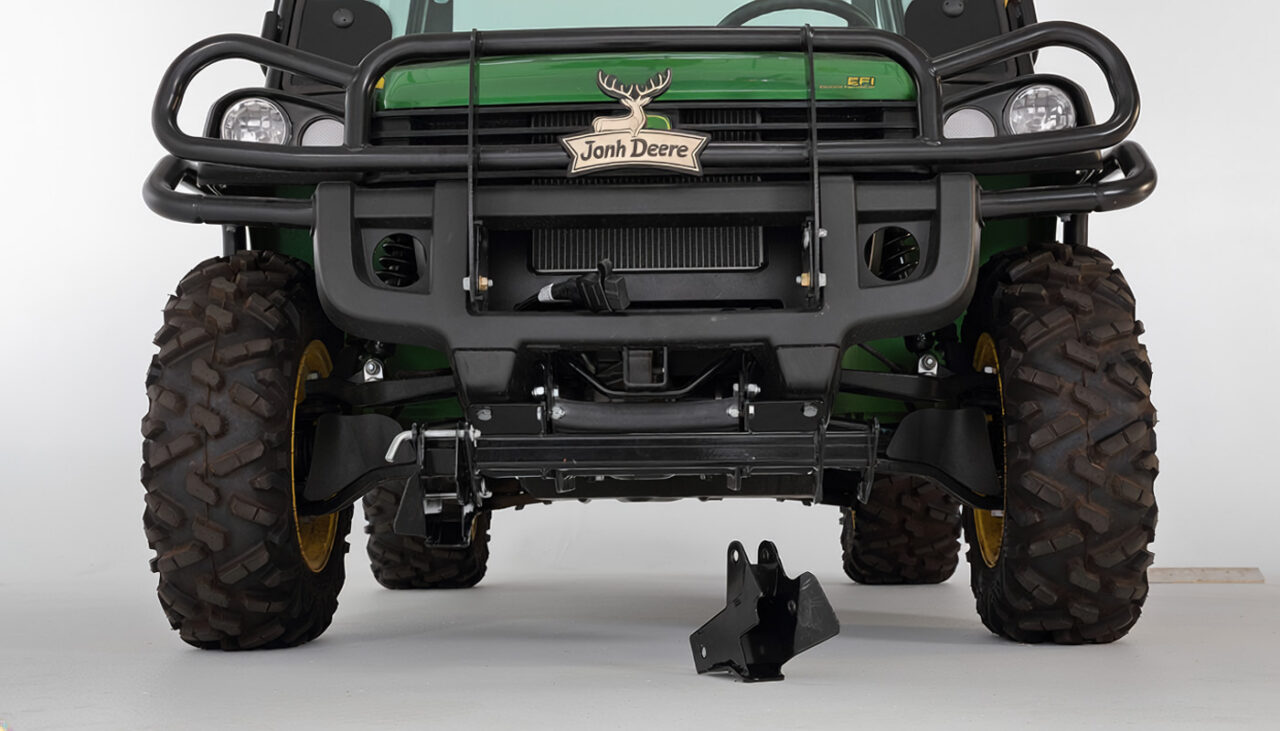

Self-Aligning Receiver Brackets

Receivers simplify attachment and are removable when not in use. This enhances ground clearance and ramp angle when using the vehicle during other seasons or when not plowing.

Universal Features

Every SNOWEX snowplow includes

Direct Lift

Direct lift systems provide rapid plow response, fewer moving parts, and a full range of motion for efficient stacking.

Trip-Edge Protection

Independent trip edge protects the plow, truck, and operator when encountering obstacles (in scoop, V, or straight). Since only the edge trips, snow loss is minimized.

Hydraulics

Custom designed and built in-house, the snowplow’s responsive, super-fast hydraulics provide quick maneuvering in the field.

SECURITY GUARD™

The SECURITY GUARD™ anti-theft system electronically locks your plow from unauthorized use when detached from truck.

POWERCOAT Finish

Our high-performance, multi-stage powder coat system provides a long-lasting, maintenance-free finish.

Standard Options

Controls

STANDARD OPTION

Handheld Control

Option Included with New Snowplow Purchase

Choose the POWER GRIP™ handheld control with backlit buttons, power/float LEDs, and FLEET FLEX enablement. Its intuitive design makes raising, lowering, and angling the blade effortless, supported by in-house custom hydraulics and a direct-lift system for efficient stacking and transport.

STANDARD OPTION

Joystick Control

Option Included with New Snowplow Purchase

Choose the compact joystick control featuring power/float LEDs and FLEET FLEX enablement. It delivers precise blade and wing maneuverability at your fingertips, backed by in-house custom hydraulics and a responsive direct-lift system for efficient stacking and transport.

Accessories

View All Accessories

8" Deflector Kits

Part Numbers

Part Number

#52653

Enhance snow containment, and help prevent it from blowing onto the windshield, with a rubber deflector.

Shoe Kit

Part Numbers

Part Number

#52656

Shoe assembly kits let you set the scraping height of the blade, extending the life of the cutting edge.

Bolt-On Wing Extensions

Part Numbers

Part Number

#52657

Maximize your blade width and carrying capacity by adding 6-inch wing extensions to each side. The extra 12 inches of plowing surface reduces the number of necessary passes, cutting down job time.

Light Bar Kit

Part Numbers

Part Number

#83980

For Heavy-Duty UTV Models

Dual-LED light kit that bolts into existing holes on the plow push bar. Not rated for road use.

Specifications

Metric

Specification	77765
Blade Width	6'0"
Approx. Weight	355 lbs
Plowing Width (Straight)	Straight: 6' (7' W/ Wings) V: 5'0"/5'6" (5'7"/6'1" W/ Wings) Scoop: 4'7"/5'1" (5'1"/5'7" W/ Wings)
Plowing Width (Full Angle)	5'/5'6" (5'7/6'1" W/ Wings)
Blade Height	At Hinge: 2'2" At End: 2'5"
Angle Cylinders	1"
Cutting Edge	¼" x 5" (Standard)
Blade Thickness	14 ga

Specification	77765
Moldboard Options	High-Strength or Powder-Coated Steel
Blade Type	V-Plow
Vehicle Compatibility	Full Sized UTVs & Sub-Compact Tractors
Reinforcement Ribs	6
Trip Springs	2 steel
