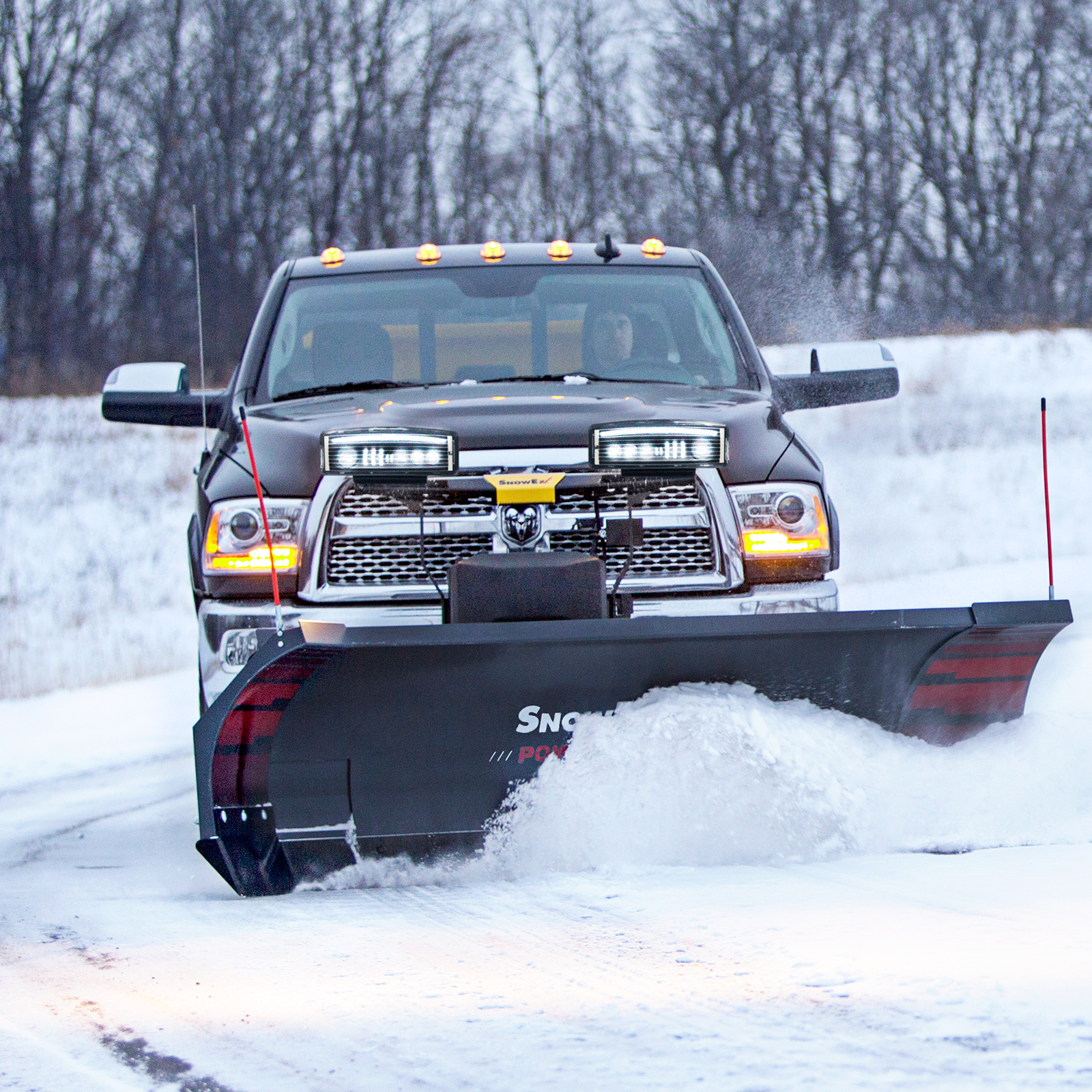

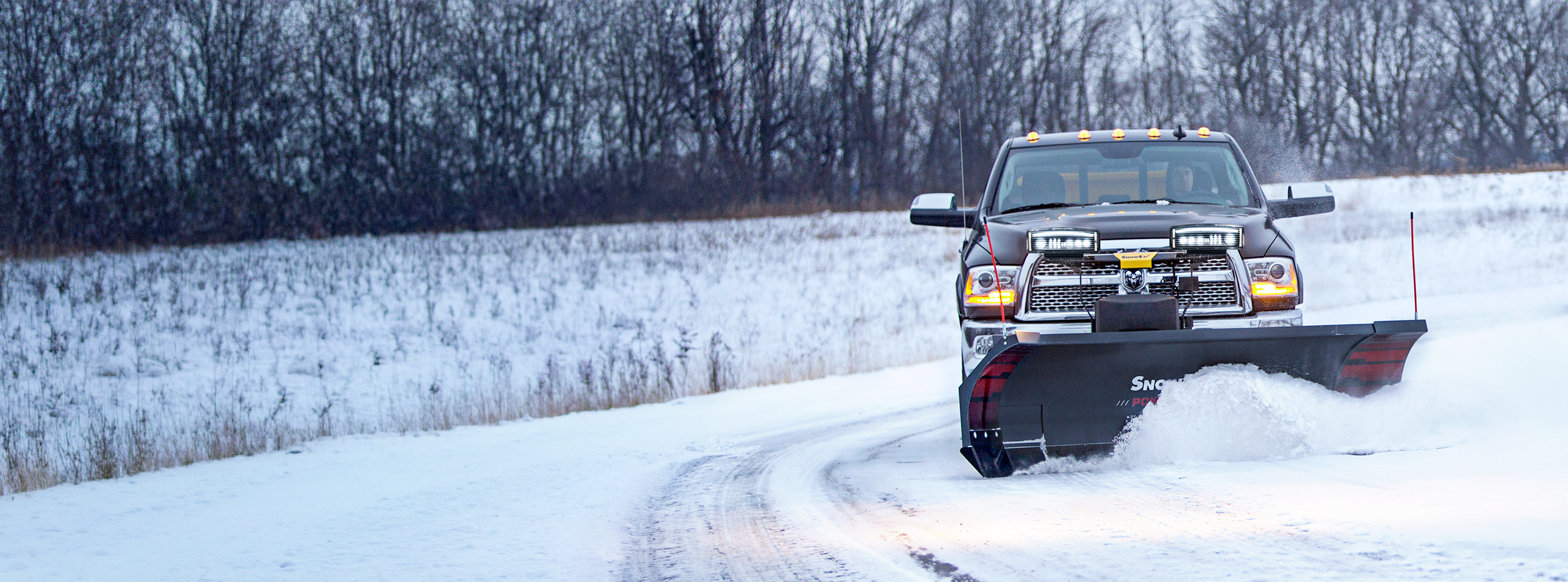

POWER PLOW™ Winged Blade

  • Blade Width: 8' - 10' & 8' 6" - 11'
  • Fits: Class 2-5 Trucks & 3-4 Series Tractors
  • Moldboard: Powder-Coated Steel

Change On The Fly

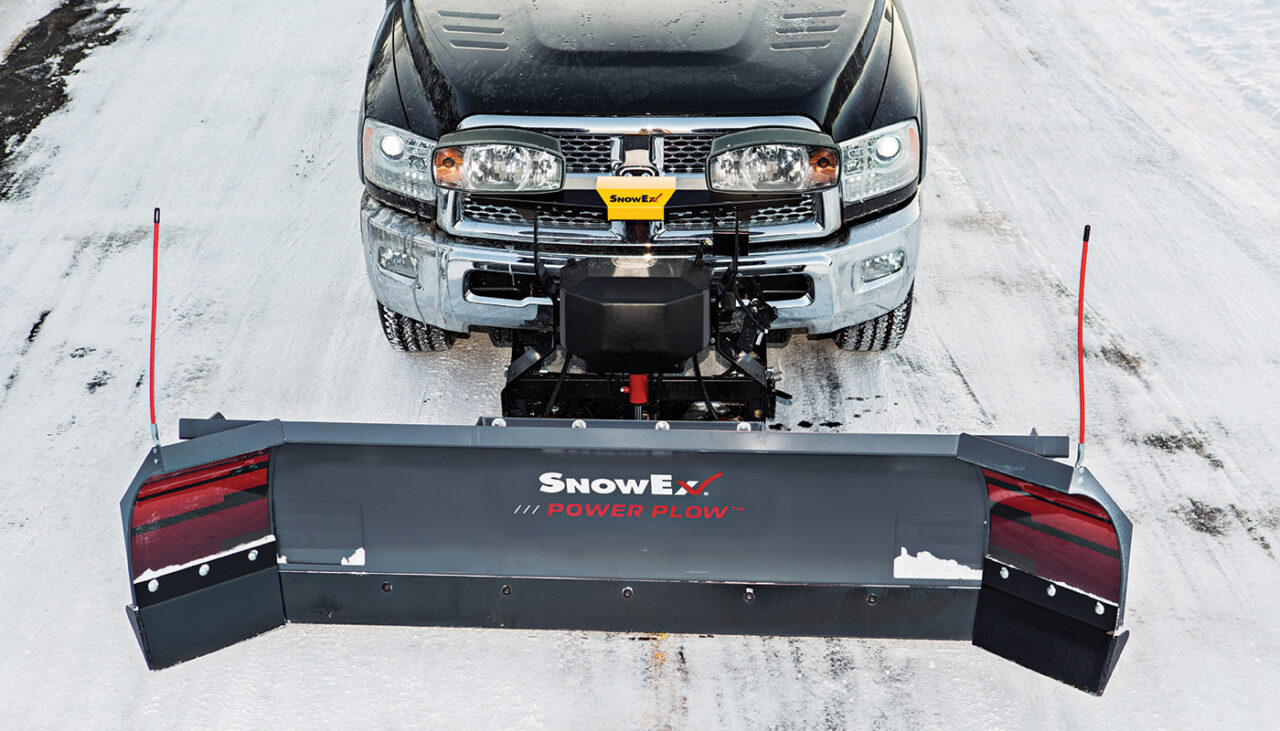

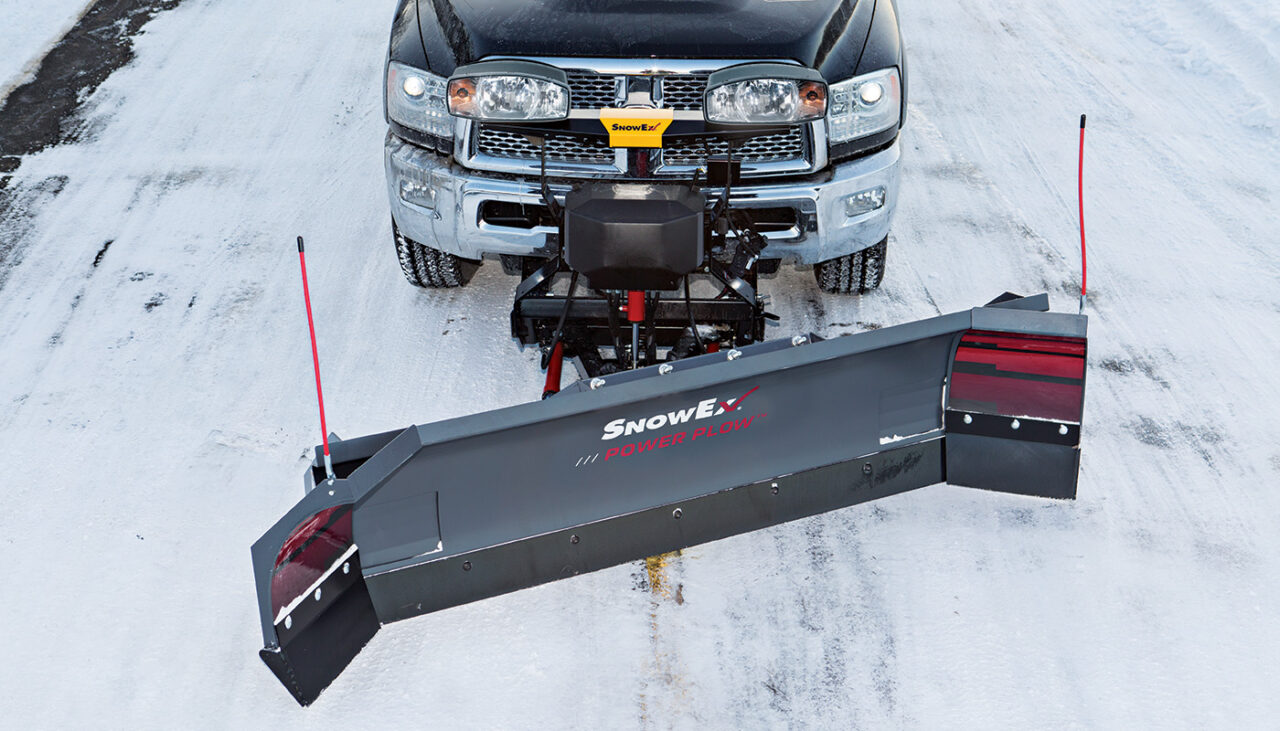

The SnowEx® adjustable-wing POWER PLOW offers the versatility to expand plow width by moving the wings outward (WIDE PASS) or increase capacity by angling the wings forward (BUCKET BLADE™) to match plowing conditions. A snow plow in compact mode for transport and narrow areas can quickly be expanded for extra wide plowing passes by simply pushing a button.

Unique Features

Product Specs

Metric
8100PP8611PP
Moldboard OptionsPowder-Coated SteelPowder-Coated Steel
Moldboard OptionsPowder-Coated SteelPowder-Coated Steel
Blade TypeWinged BladeWinged Blade
Blade TypeWinged BladeWinged Blade
Vehicle CompatibilityClass 2-5 Trucks & 3-4 Series TractorsClass 2-5 Trucks & 3-4 Series Tractors
Vehicle CompatibilityClass 2-5 Trucks & 3-4 Series TractorsClass 2-5 Trucks & 3-4 Series Tractors
Approx. Weight*970 lb1,036 lb
Approx. Weight*440 kg470 kg
Blade Width8' 0" 10' 0" WIDE PASS™8' 6" 11' 0" WIDE PASS™
Blade Width243.8 cm 304.8 cm WIDE PASS™259.1 cm 335.3 cm WIDE PASS™
Plowing Width (Full Angle)85.6" - Compact
93.4" - Bucket

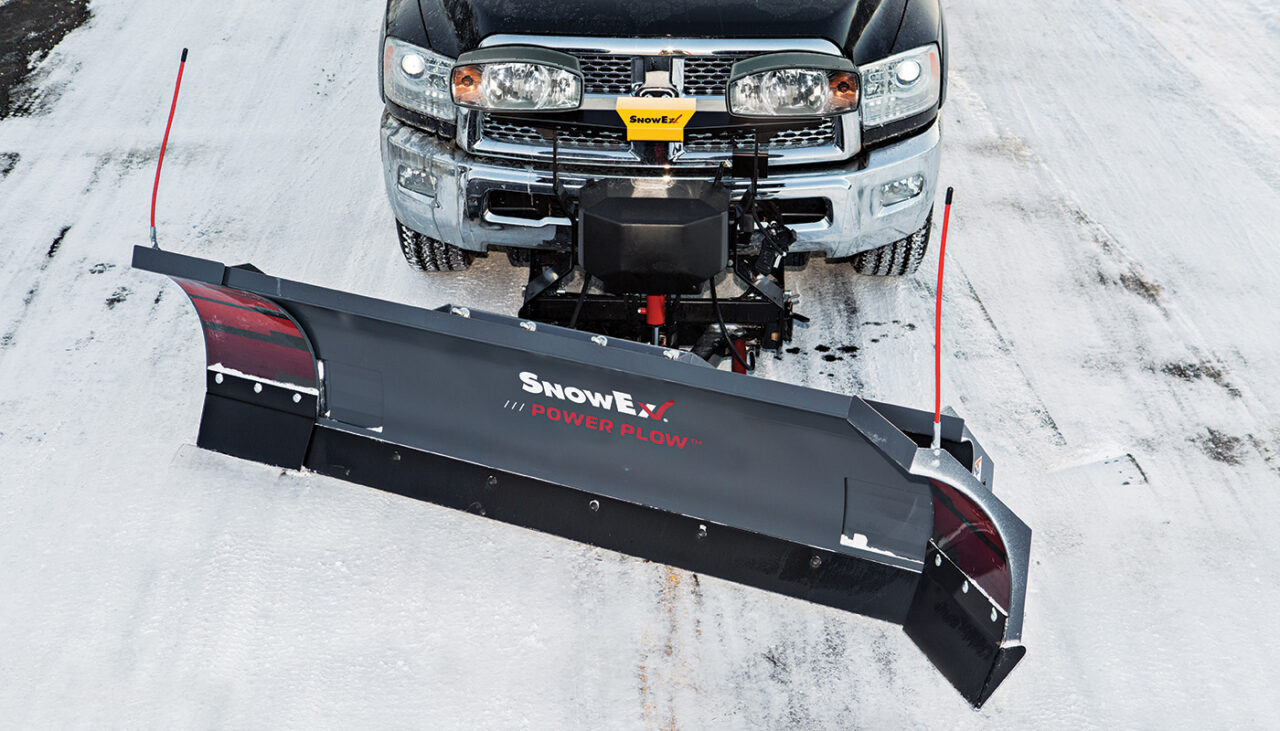

95.1" - Windrow
106.2" - Wide Pass
94.5" - Compact
114.5" - Bucket
113" - Windrow
126" - Wide Pass
Plowing Width (Full Angle)217.4 cm - Compact
237.2 cm - Bucket
241.6 cm - Windrow
269.8 cm - Wide Pass
240 cm - Compact
290.8 cm - Bucket
287 cm - Windrow
320 cm - Wide Pass

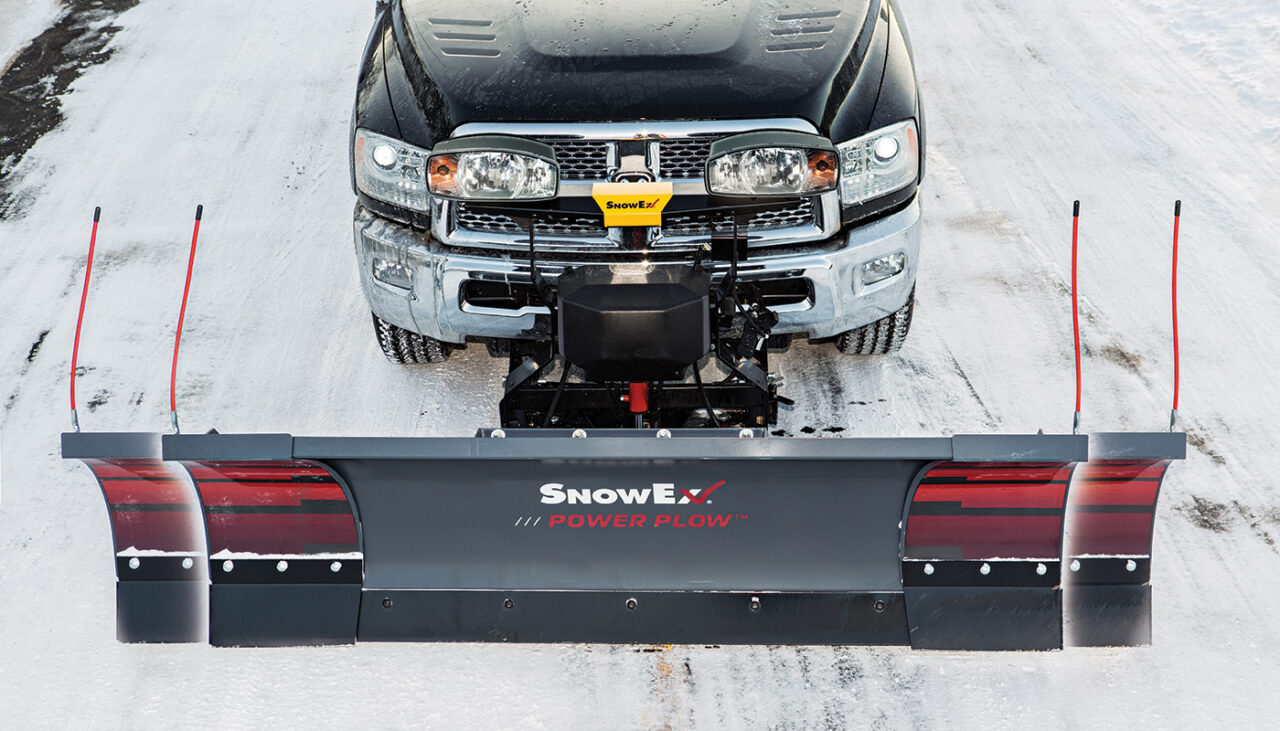

Plowing Width (Straight)96" - Compact
105" - Bucket
120" - Wide Pass
102" - Compact
118" - Bucket
132" - Wide Pass
Plowing Width (Straight)243.8 cm - Compact
266.7 cm - Bucket
304.8 cm - Wide Pass
259.1 cm - Compact
299.7 cm - Bucket
335.3 cm - Wide Pass
Blade Height31"31"
Blade Height78.7 cm78.7 cm
Angle Cylinders1½”1½”
Angle Cylinders3.8 cm3.8 cm
Cutting Edge1/2" x 6" blade
1/4" x 10" wing
1/2" x 6" blade
1/4" x 10" wing
Cutting Edge1.3 cm x 15.2 cm blade
0.635 cm x 25.4 cm wing
1.3 cm x 15.2 cm blade
0.635 cm x 25.4 cm wing
Blade/Wing Thickness12 ga blade
11 ga wing
12 ga blade
11 ga wing
Blade/Wing Thickness12 ga blade
11 ga wing
12 ga blade
11 ga wing

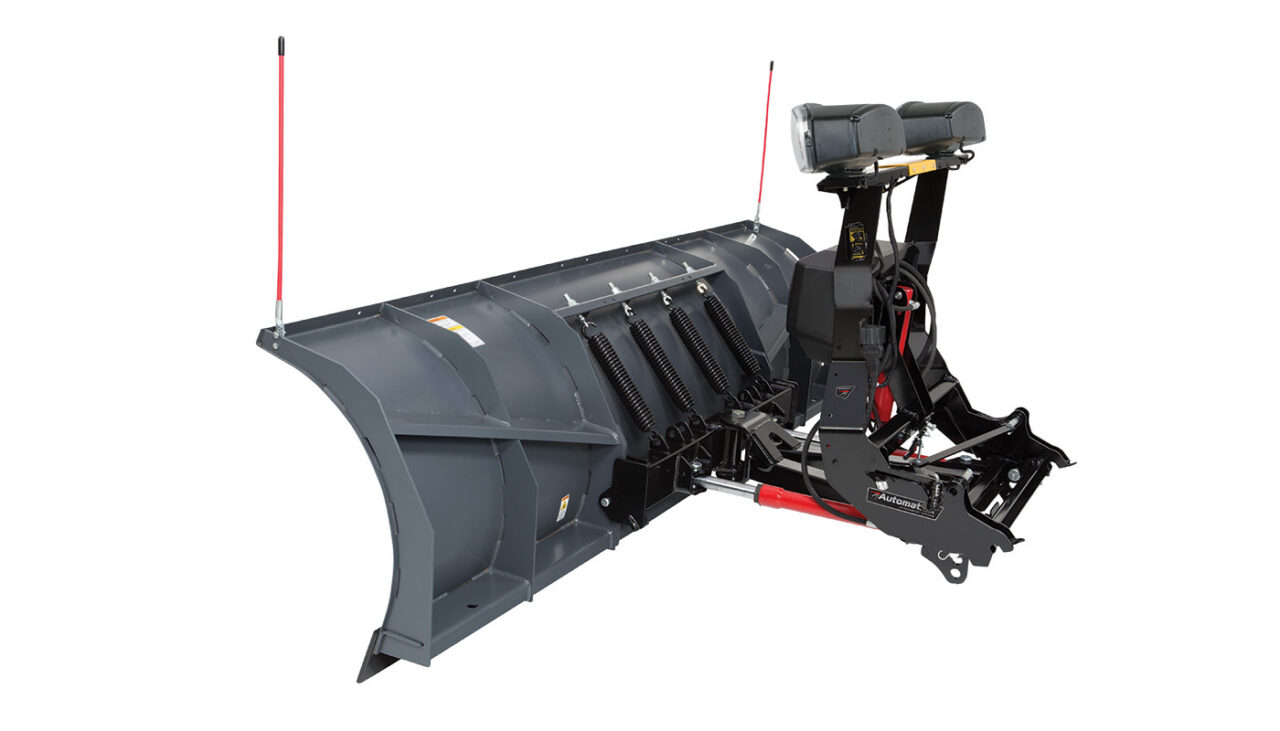

Reinforcement Ribs44
Reinforcement Ribs44

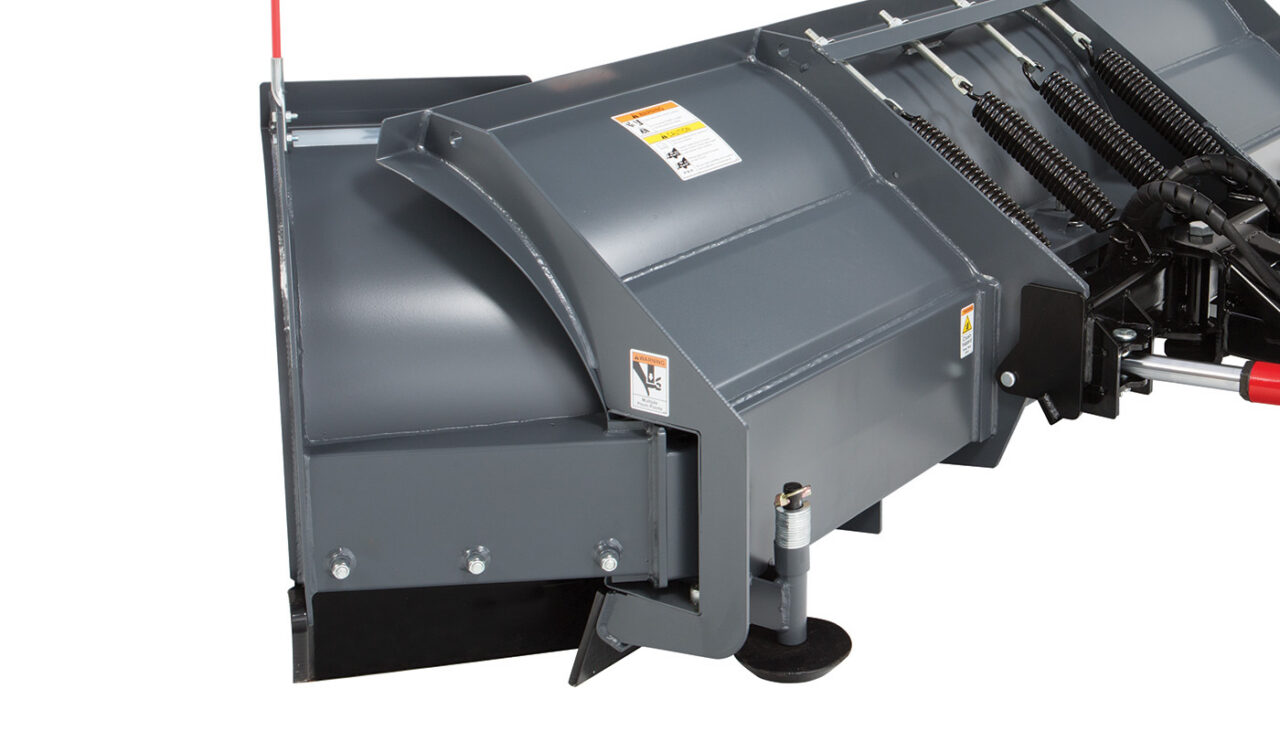

Trip Springs4 steel6 steel
Trip Springs4 steel6 steel
*Does not include vehicle mount (28 lb - 145 lb weight range). Please refer to the Power Match program for specific vehicle applications.

Power Match

Does This Plow Fit My Vehicle

Use Power Match & enter your vehicle’s specifications to easily identify which SnowEx snow plows will fit your vehicle.
