Straight Blade Plow
- Blade Width: 7' 6" & 8'
- Fits: Half-Ton & Class 2 Trucks
- Moldboard: Powder-Coated Steel
- #: 7600RD, 8000RD
Lean & Mean

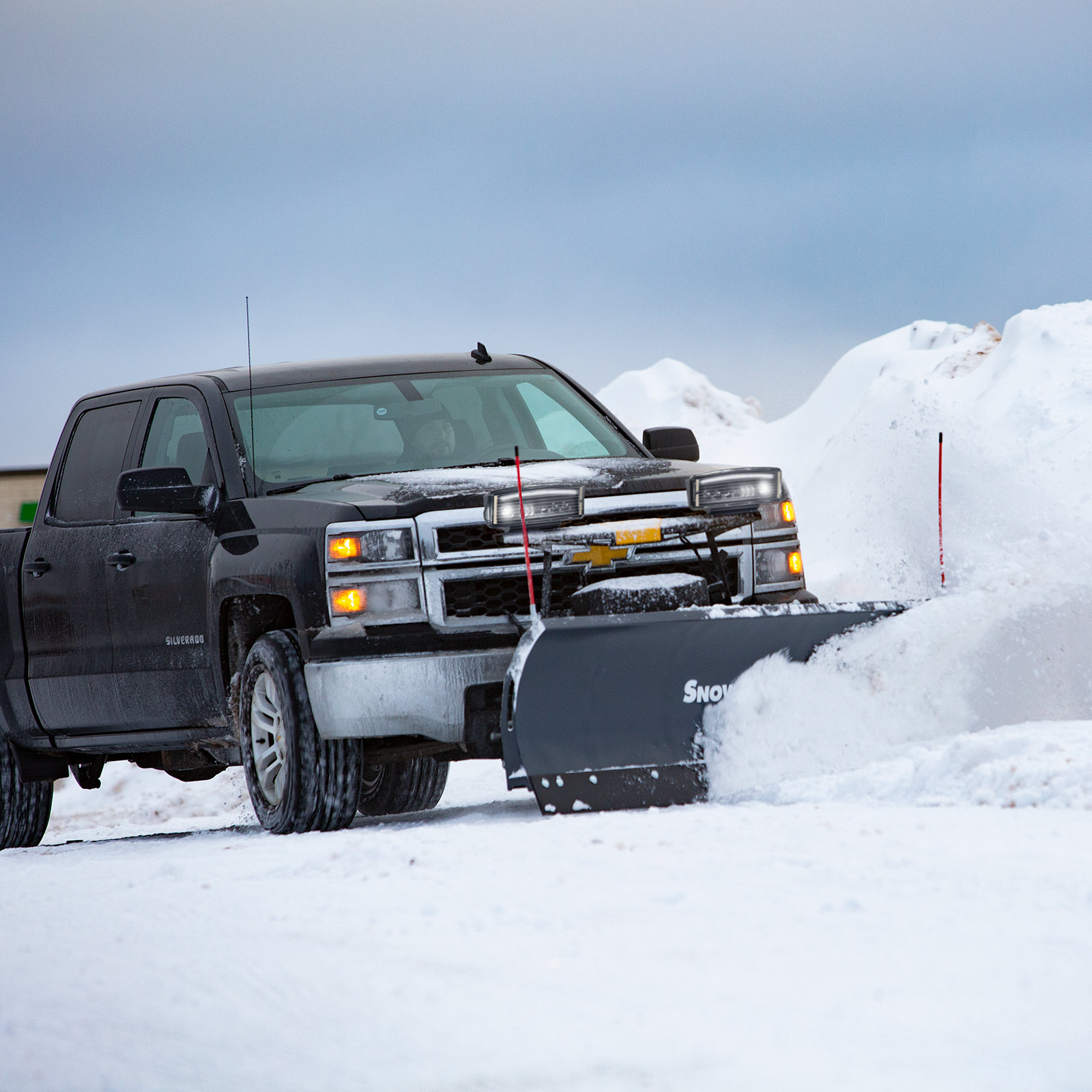

For personal plowing or light-duty commercial snow plowing jobs using half-ton pick-ups, the SnowEx® 7600RD and 8000RD are engineered to meet vehicle weight ratings and deliver excellent performance. Built with stronger and lighter high-strength steel, the units are ideal for tough conditions while putting less stress on your truck than heavier straight blade snow plows.
Compatible with Trucks
Unique Features
Standard Plow Features
Featured Accessories
Steel Cutting Edges
Built for the long haul, SnowEx® plows offer thicker steel cutting edges for enhanced wear resistance over time.
Part Number
#40552
3/8" - 8'
#42417
3/8" - 7'6"
#40696
1/2" - 8'
#40695
1/2" - 7'6"
Deflector Kits
Enhance snow containment, and prevent it from blowing onto the windshield, with a SnowEx rubber deflector.
Part Number
#84514
7600RD Model
#84517
8000RD Model
Curb Guard Kit
Bolt-on curb guards protect the outer edge of your plow from wear associated with curbs and sidewalks.
Part Number
#43885
Single - 5/8"
Product Specs
Metric
| 7600RD | 8000RD | |
|---|---|---|
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel |
| Moldboard Options | Powder-Coated Steel | Powder-Coated Steel |
| Blade Type | Straight Blade | Straight Blade |
| Blade Type | Straight Blade | Straight Blade |
| Vehicle Compatibility | Half-Ton & Class 2 Trucks | Half-Ton & Class 2 Trucks |
| Vehicle Compatibility | Half-Ton & Class 2 Trucks | Half-Ton & Class 2 Trucks |
| Approx. Weight* | 415 lbs | 425 lbs |
| Approx. Weight* | 188 kg | 193 kg |
| Plowing Width (Straight) | 90" | 96" |
| Plowing Width (Straight) | 228.6 cm | 243.8 cm |
| Plowing Width (Full Angle) | 81" | 86.6" |
| Plowing Width (Full Angle) | 205.7 cm | 219.9 cm |
| Blade Width | 7'6" | 8'0" |
| Blade Width | 228.6 cm | 243.8 cm |
| Blade Height | 27" | 27" |
| Blade Height | 68.6 cm | 68.6 cm |
| Angle Cylinders | 1½" | 1½" |
| Angle Cylinders | 3.8 cm | 3.8 cm |
| Cutting Edge | 5/16" x 6" (Standard) | 5/16" x 6" (Standard) |
| Cutting Edge | 0.313 cm x 15.2 cm (Standard) | 0.313 cm x 15.2 cm (Standard) |
| Blade Thickness | 14 ga | 14 ga |
| Blade Thickness | 14 ga | 14 ga |
| Reinforcement Ribs | 6 | 6 |
| Reinforcement Ribs | 6 | 6 |
| Trip Springs | 2 steel | 2 steel |
| Trip Springs | 2 steel | 2 steel |
