Compatibility: trucks
Renegade™
Stainless Steel Hopper Spreader
Quick Specs
Select a model:
- 1.5 cu yd Capacity (Volume)
- 3,240 lb Capacity (Weight)
- 1.5 cu yd Capacity (Volume)
- 3,240 lb Capacity (Weight)
- 2.2 cu yd Capacity (Volume)
- 4,752 lb Capacity (Weight)
- 2.2 cu yd Capacity (Volume)
- 4,752 lb Capacity (Weight)
- 3.0 cu yd Capacity (Volume)
- 6,480 lb Capacity (Weight)
- 3.0 cu yd Capacity (Volume)
- 6,480 lb Capacity (Weight)
- 4.0 cu yd Capacity (Volume)
- 8,640 lb Capacity (Weight)
- 4.0 cu yd Capacity (Volume)
- 8,640 lb Capacity (Weight)
- 5.0 cu yd Capacity (Volume)
- 10,800 lb Capacity (Weight)
- 5.0 cu yd Capacity (Volume)
- 10,800 lb Capacity (Weight)
- Materials: Salt, Sand & Liquid Brine*
- #: 86410, 86420, 86430, 86450, 86440, 89510, 89520, 89530, 89540, 89550
Verify compatibility and part number information
BEAT THE STORM
BY CONTROLLING THE ICE

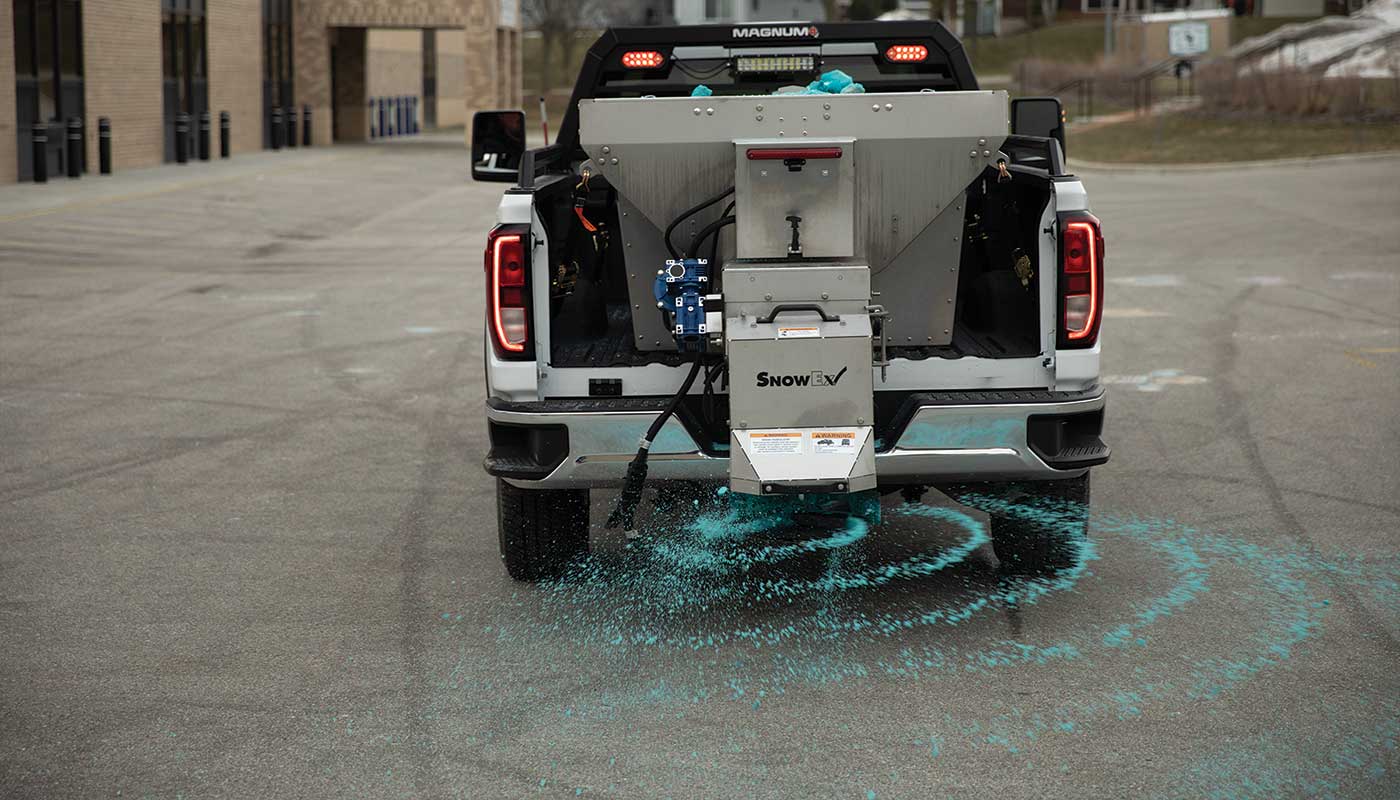

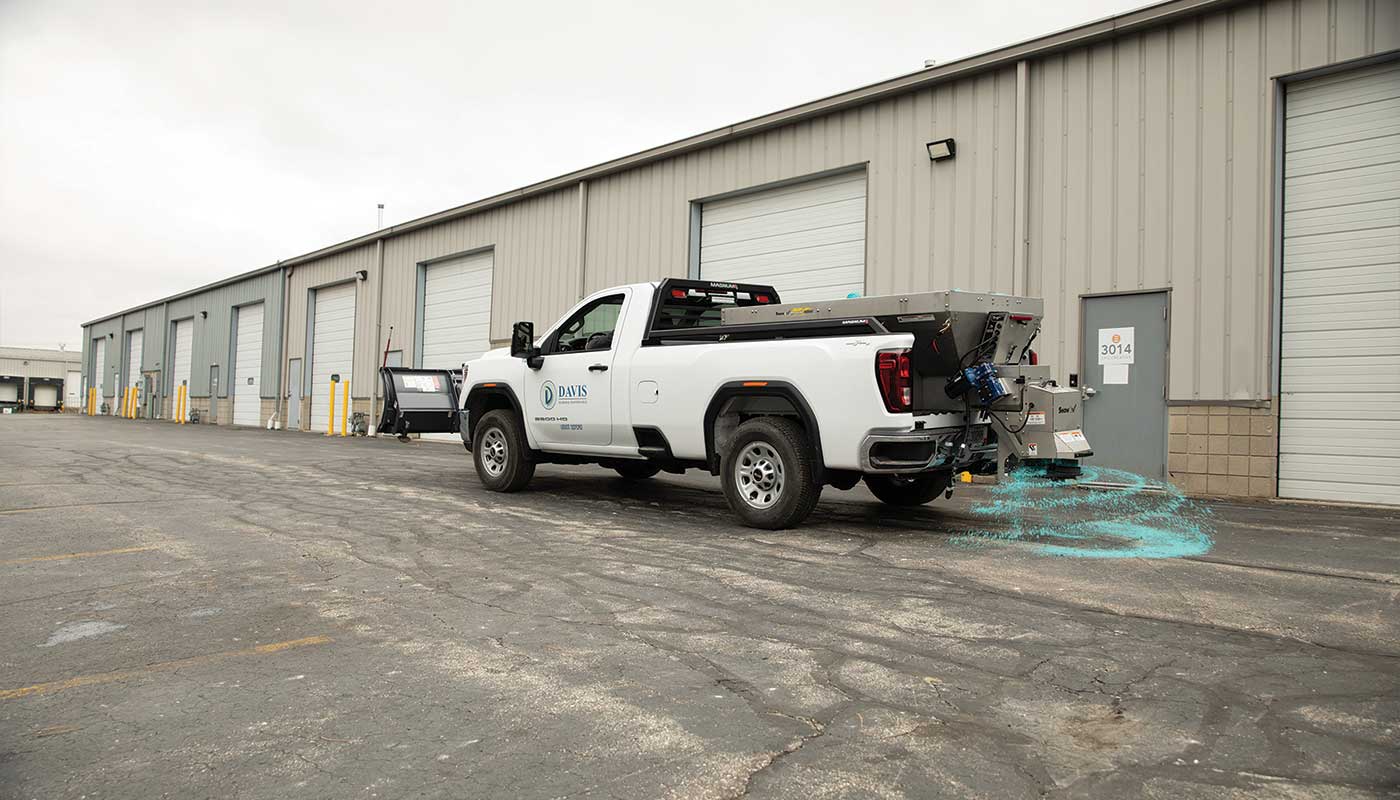

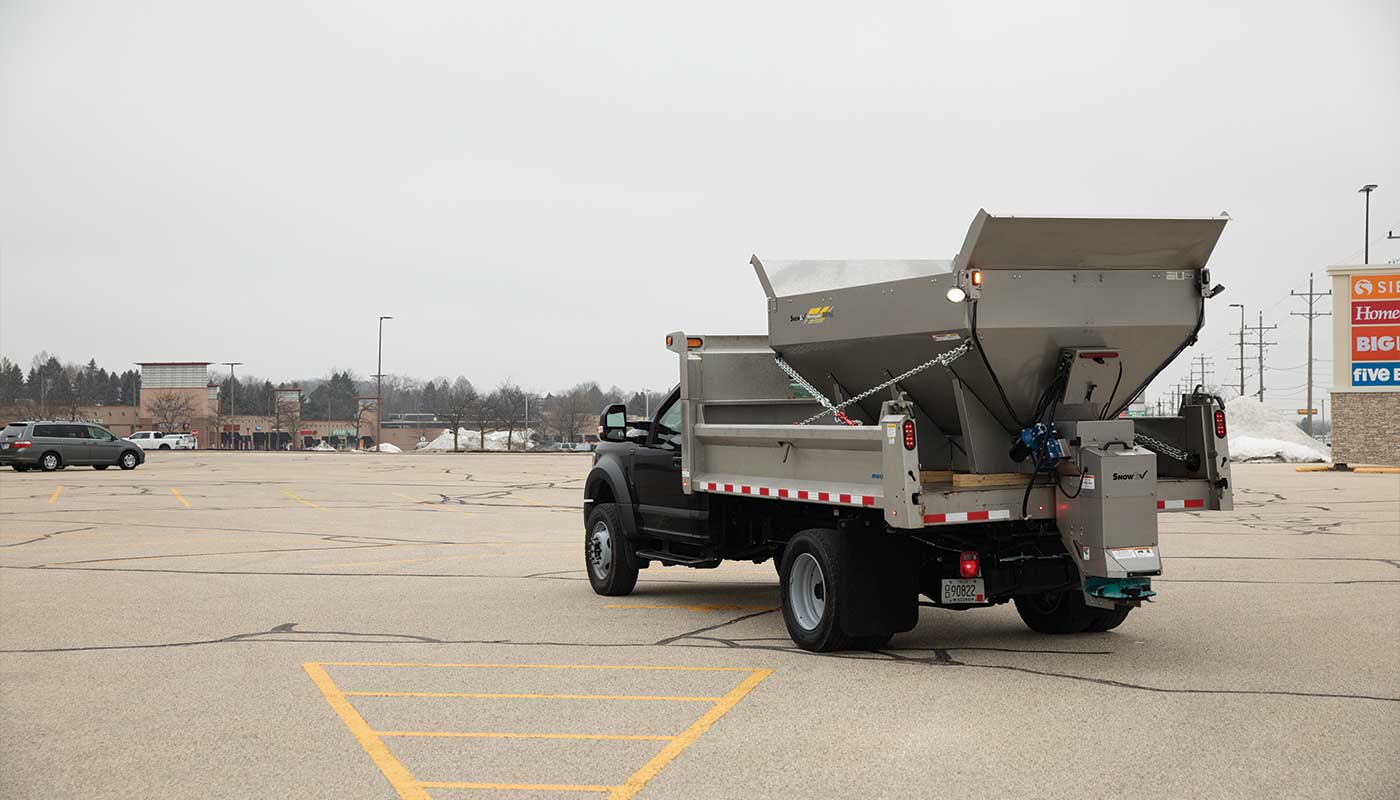

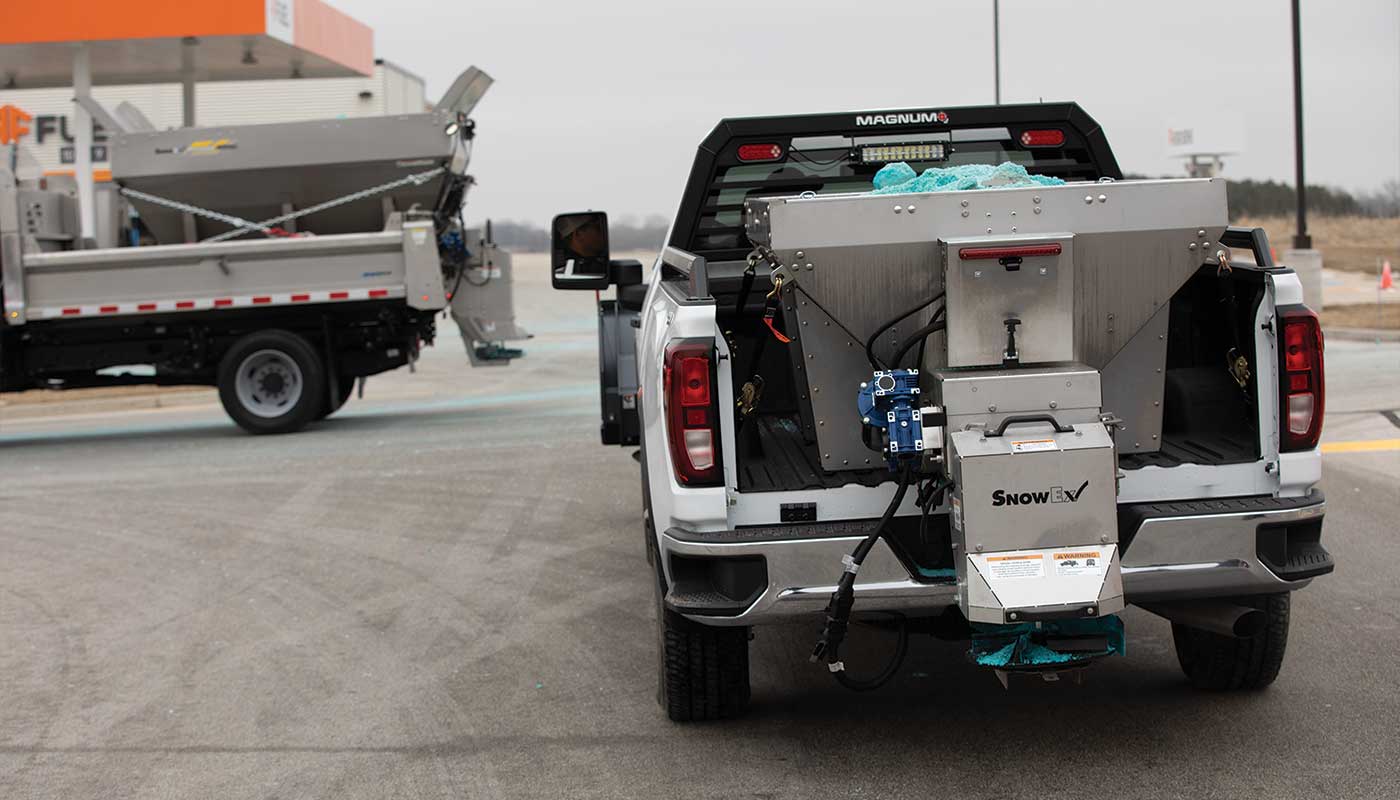

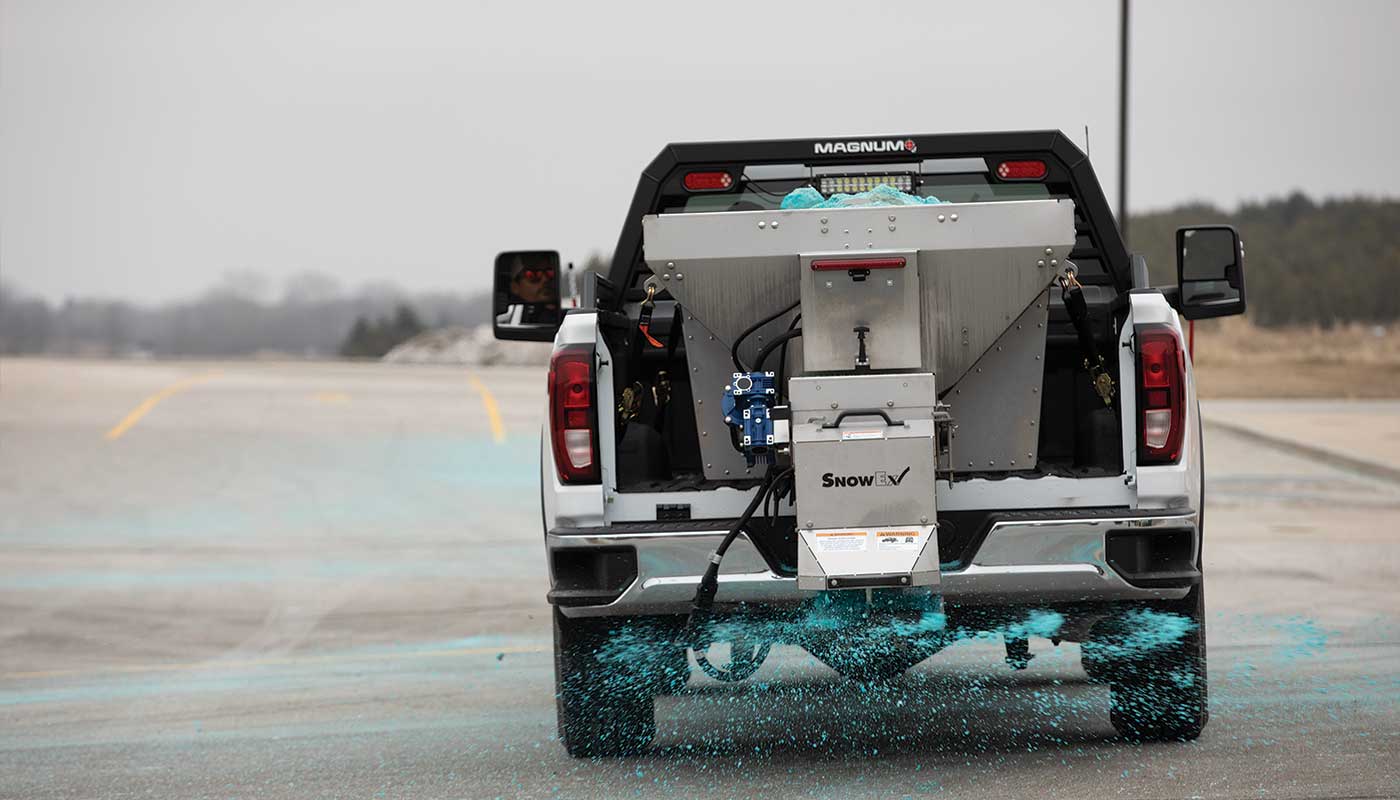

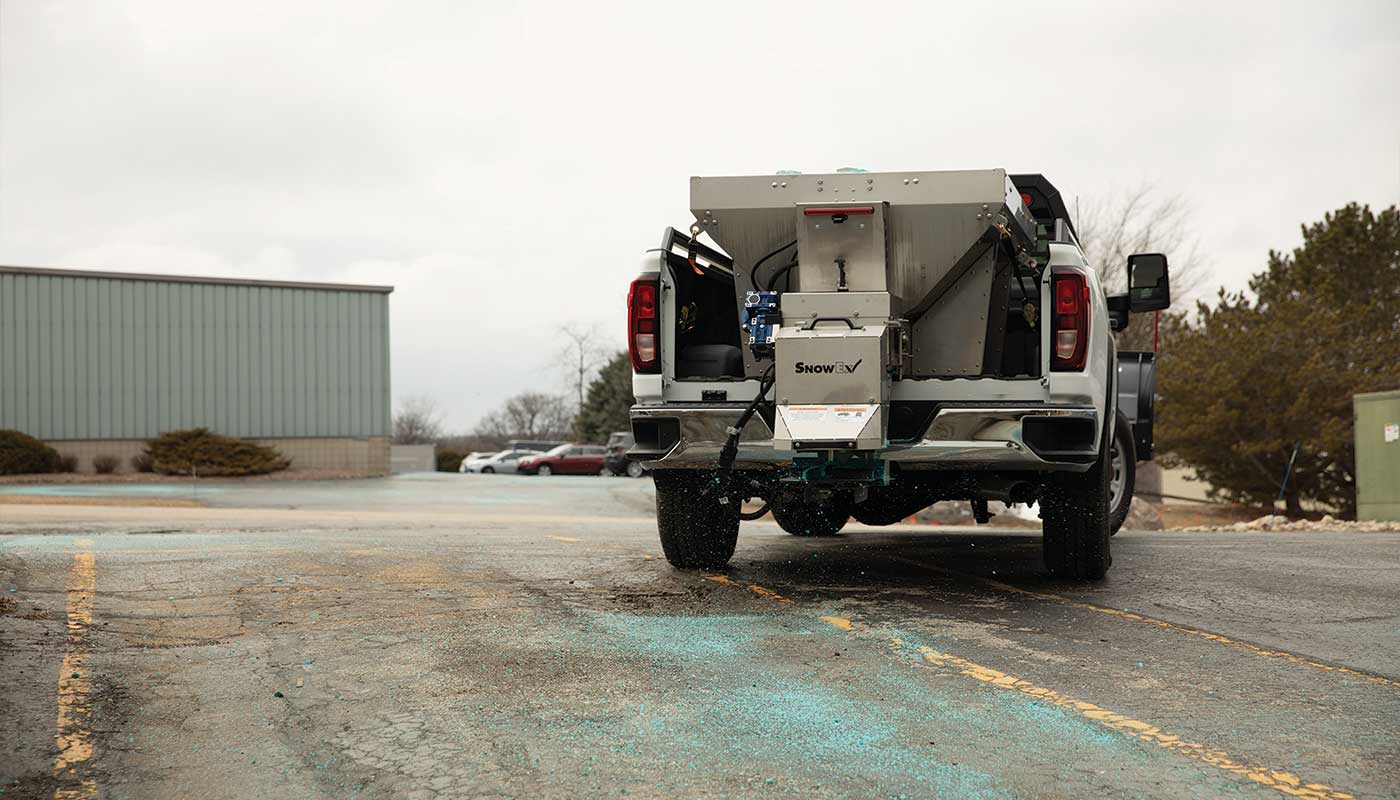

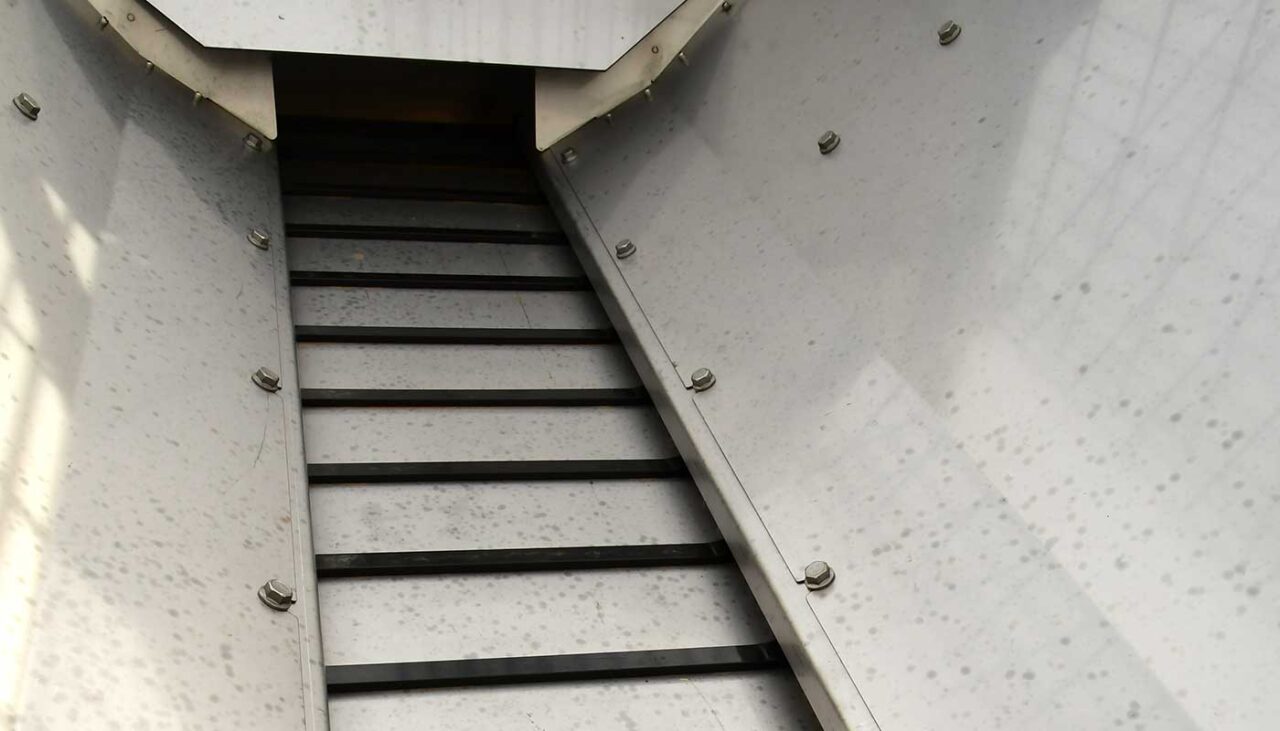

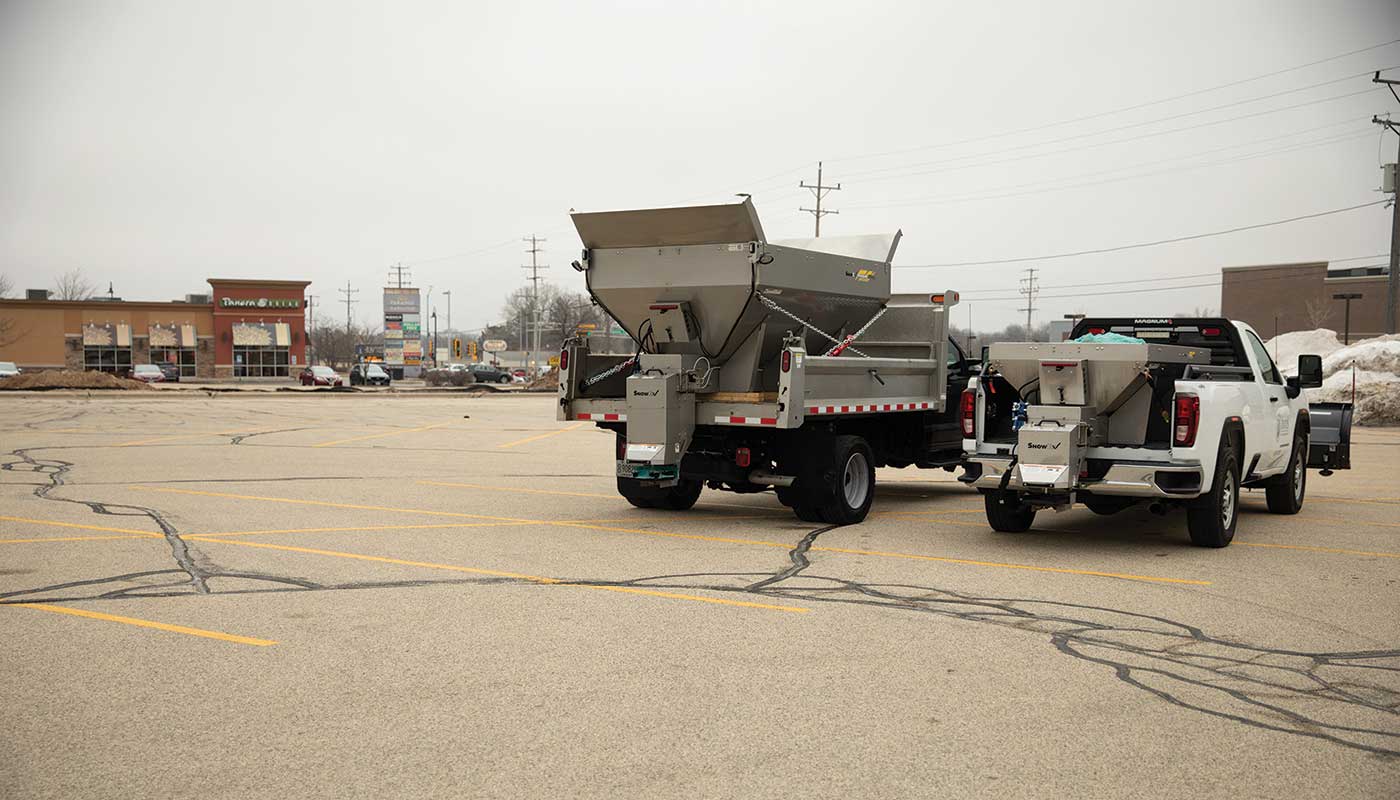

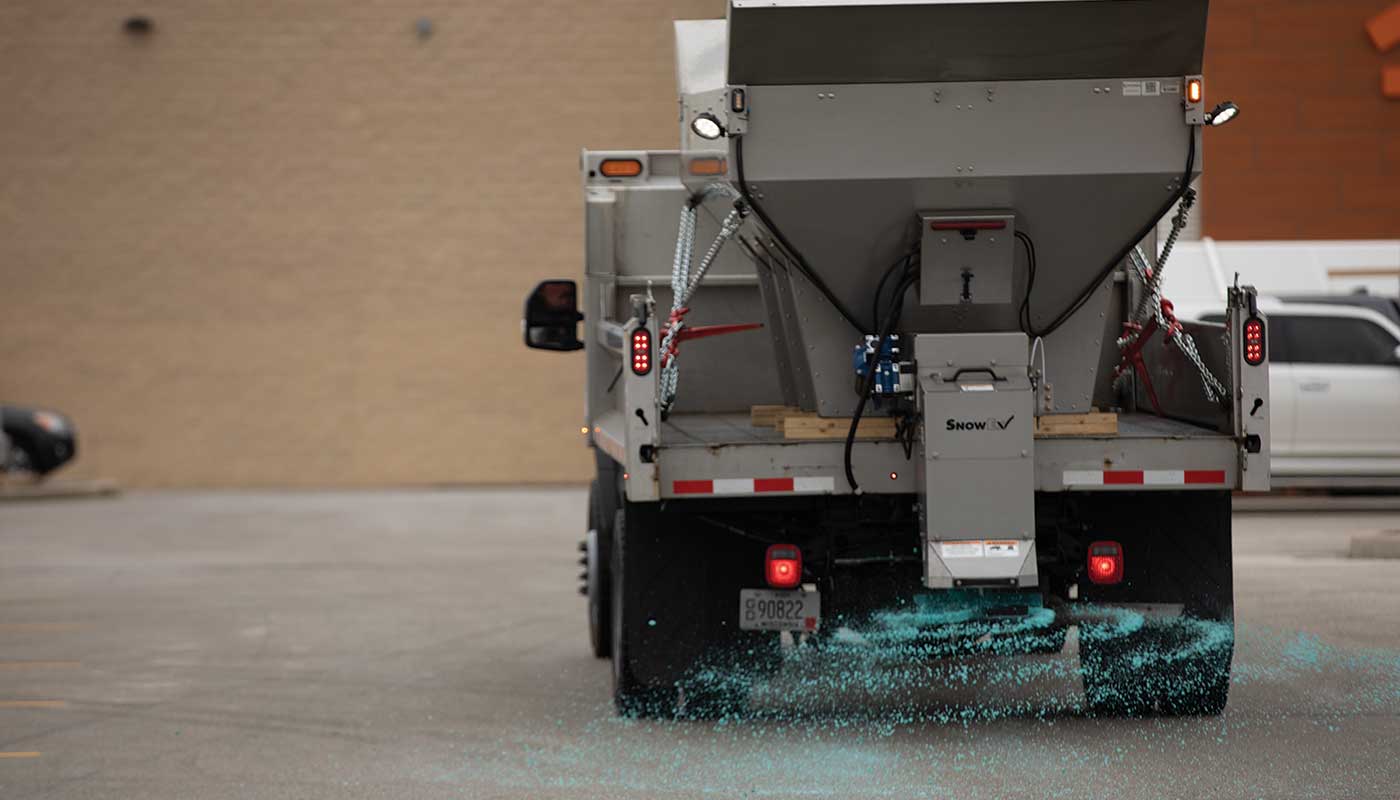

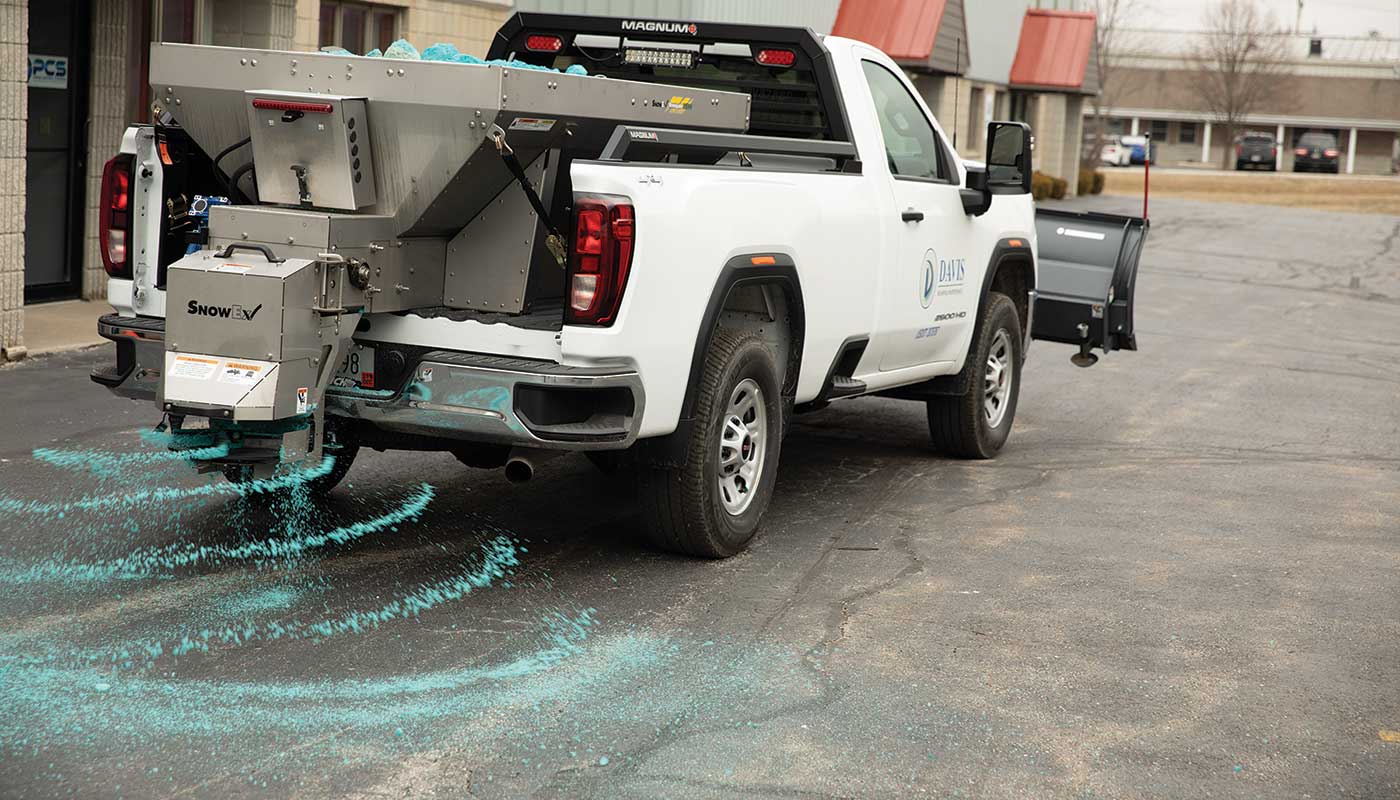

When the stakes are high and the storm is pushing back, you need equipment that performs without compromise. The full-size SnowEx® Renegade™ stainless steel hopper spreaders are built for the high-capacity performance and maximum endurance that large-scale commercial and municipal fleets demand. These high-volume salt spreaders, ranging from 1.5 to 5.0 cu yd capacities, are engineered to tackle massive jobs in a single run. Providing superior material flow—your operation can choose the material delivery system that’s right for your de-icing program. Choose the precision HELIXX™ auger delivery system for bulk rock salt application or the powerful pintle chain to handle the application of heavy materials like sand and salt/sand mixes. Unlock true versatility with the optional Triple Threat system that allows you to pre-treat your granular materials or spray direct liquid application all with a single machine.
Hopper spreaders require bolting to the truck frame for proper operator safety.
Compatible with Trucks
Unique Features
HOPPER CONSTRUCTION

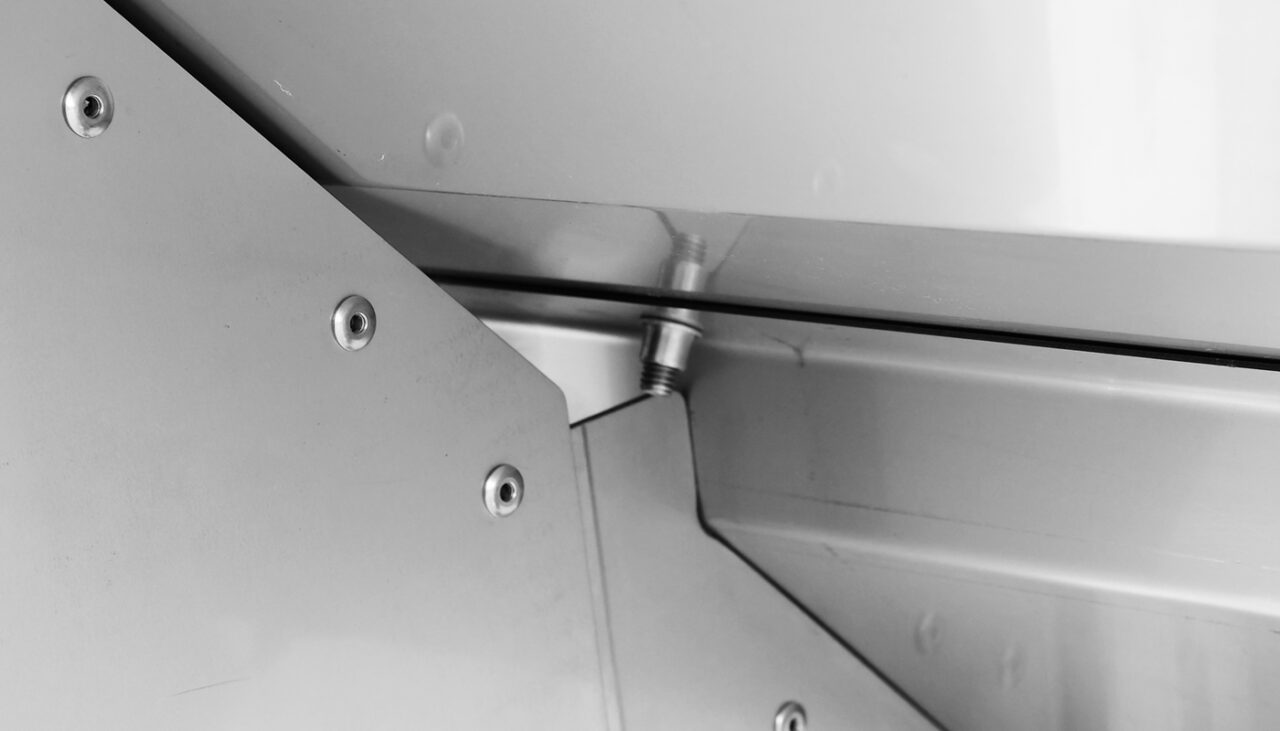

- Stainless steel construction uses heavy-duty rivets and bolts for a clean aesthetic and can withstand extreme stress and corrosive environments
- Steel top screen acts as a primary filtration layer, breaking up large material clumps during loading to ensure consistent, continuous flow
- Simply connect accessories to the rear-mounted hub to automatically interface them with your spreader’s controller, no extra wiring required

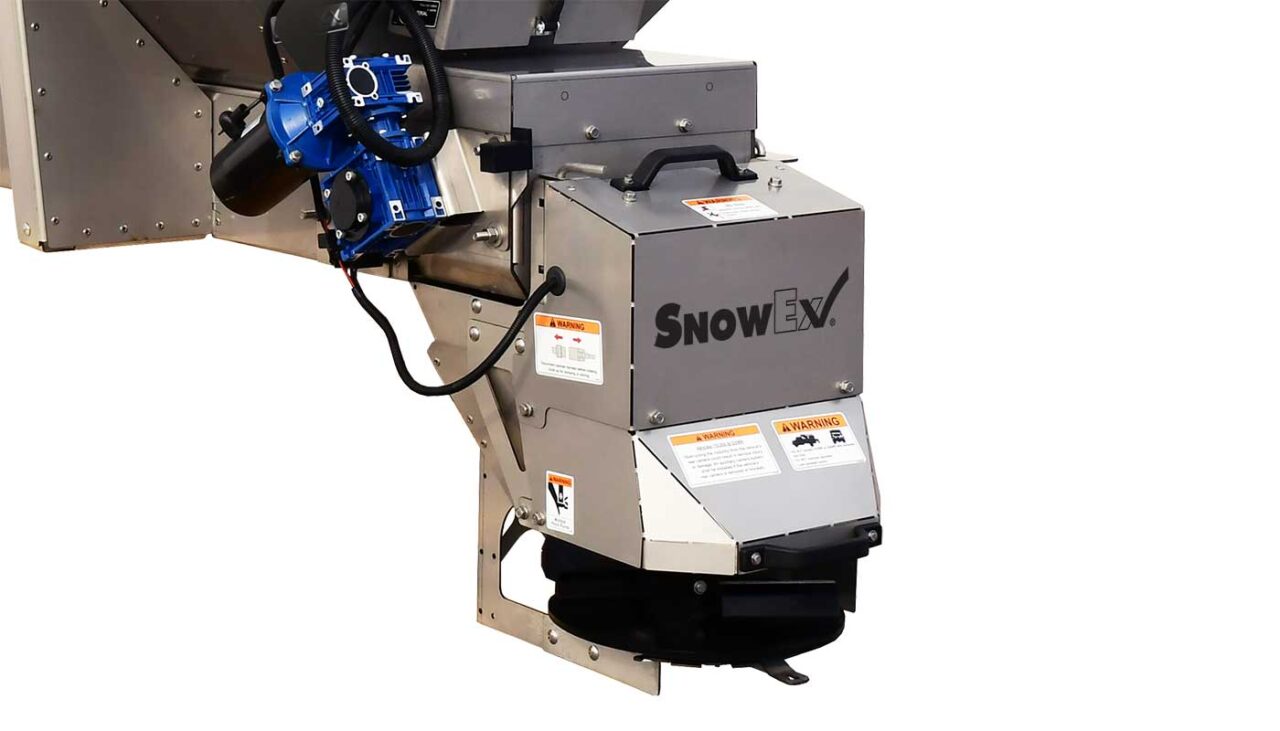

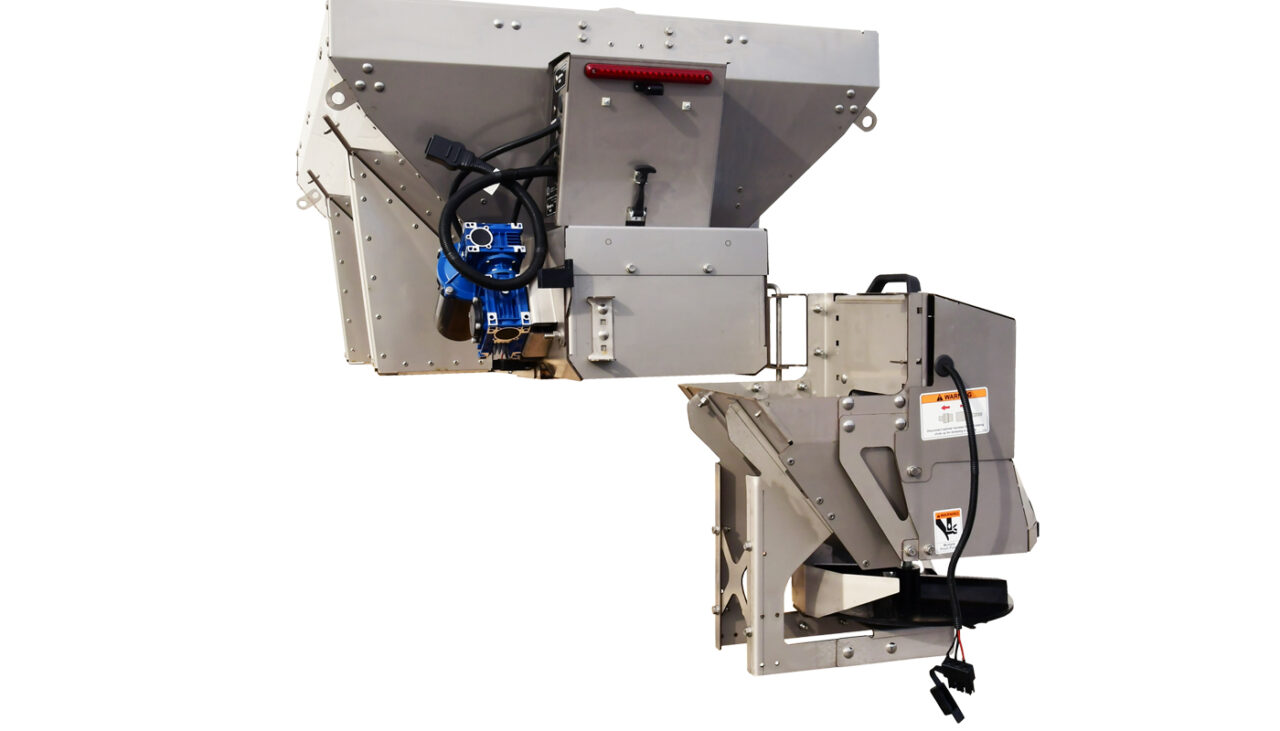

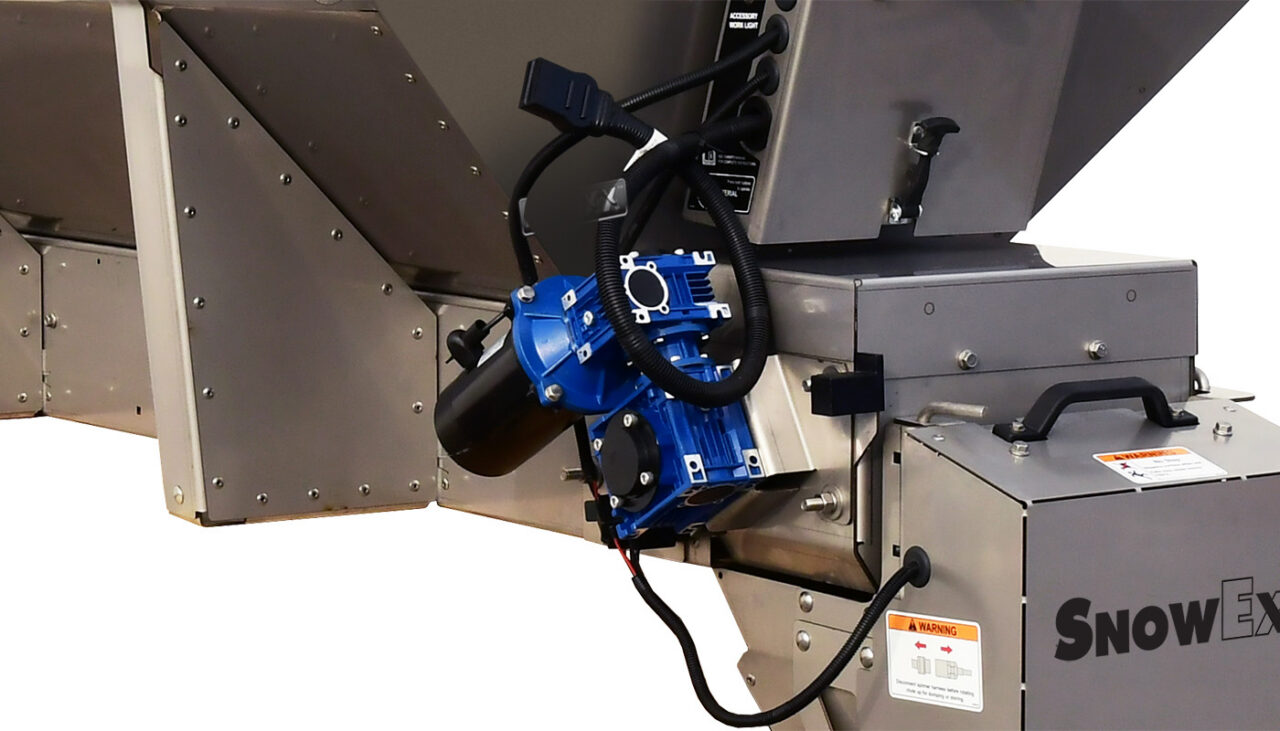

CHUTE DESIGN
- Baffles keep spread pattern consistent for improved coverage with less wasted material
- The direct-drive motor packs more torque for tougher jobs while reducing regular maintenance
- Our heavy-duty, IP-67 rated power plug features a secure locking latch, staying tightly connected even through the constant vibrations of the road
HELIXX™ Auger Technology
Patented corkscrew material delivery system is optimized to operate in the target range for rock salt spreading best practices. The auger has multiple pitches to help promote smooth, even material flow from the hopper and prevents bridging. The shaftless technology reduces drag on the motor and reduces the overall load on the electrical system.
* Auger Models Only (S150A, S220A, S300A, S400A, S500A)
Universal Features
Electric Motor
Shutter Deflector
Dump & Work Light Switches
FLEET FLEX Electrical System
Material compatibility
Accessories
REARVIEW MATERIAL MONITORING CAMERA
Part NumbersPart Number
Easily view your material output from the comfort of your cab by using the material monitoring camera. It attaches to the top of your spreader for optimal visibility of material spread pattern. The monitor is installed inside your cab so you can ensure a smooth spread pattern and optimal material output.
Ratchet Strap Kit
Part NumbersPart Number
Ratchet-strap kit provides additional in-bed stability, security, and simplifies installation for multiple vehicle types.
Hopper spreaders require bolting to the truck frame for proper operator safety.
SPILL GUARD KIT
Part NumbersPart Number
The Spill Guard Kit provides the loader with an improved line of sight to the hopper edges, while preventing material from overflowing into the bed of the truck from off-center loading.
Specifications
Selecting a model updates product features and specs below.
| Specification | 89510 | 86410 | 89520 | 86420 | 89530 | 86430 | 89540 | 86440 | 89550 | 86450 |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (Volume) | 1.5 cu yd | 1.5 cu yd | 2.2 cu yd | 2.2 cu yd | 3.0 cu yd | 3.0 cu yd | 4.0 cu yd | 4.0 cu yd | 5.0 cu yd | 5.0 cu yd |
| Capacity (Weight) | 3,240 lb | 3,240 lb | 4,752 lb | 4,752 lb | 6,480 lb | 6,480 lb | 8,640 lb | 8,640 lb | 10,800 lb | 10,800 lb |
| Spreading Width |
Salt: Up to 36' Sand: Up to 24' |
Salt: Up to 36' |
Salt: Up to 36' Sand: Up to 24' |
Salt: Up to 36' |
Salt: Up to 36' Sand: Up to 24' |
Salt: Up to 36' |
Salt: Up to 36' Sand: Up to 24' |
Salt: Up to 36' |
Salt: Up to 36' Sand: Up to 24' |
Salt: Up to 36' |
| Approx. Weight (Empty) | 530 lb | 500 lb | 580 lb | 550 lb | 750 lb | 700 lb | 820 lb | 770 lb | 910 lb | 850 lb |
| Hopper Length (A) | 84.50" | 84.50" | 96.50" | 96.50" | 96.50" | 96.50" | 108.50" | 108.50" | 108.50" | 108.50" |
| Bed Length (B) | 65.50" | 62.50" | 70.50" | 67.50" | 82.50" | 79.50" | 82.50" | 79.50" | 82.50" | 79.50" |
| Overall Hopper Length (C) | 107" | 111.50" | 119.25" | 123" | 120.50" | 123" | 128.75" | 129" | 126.25" | 129" |

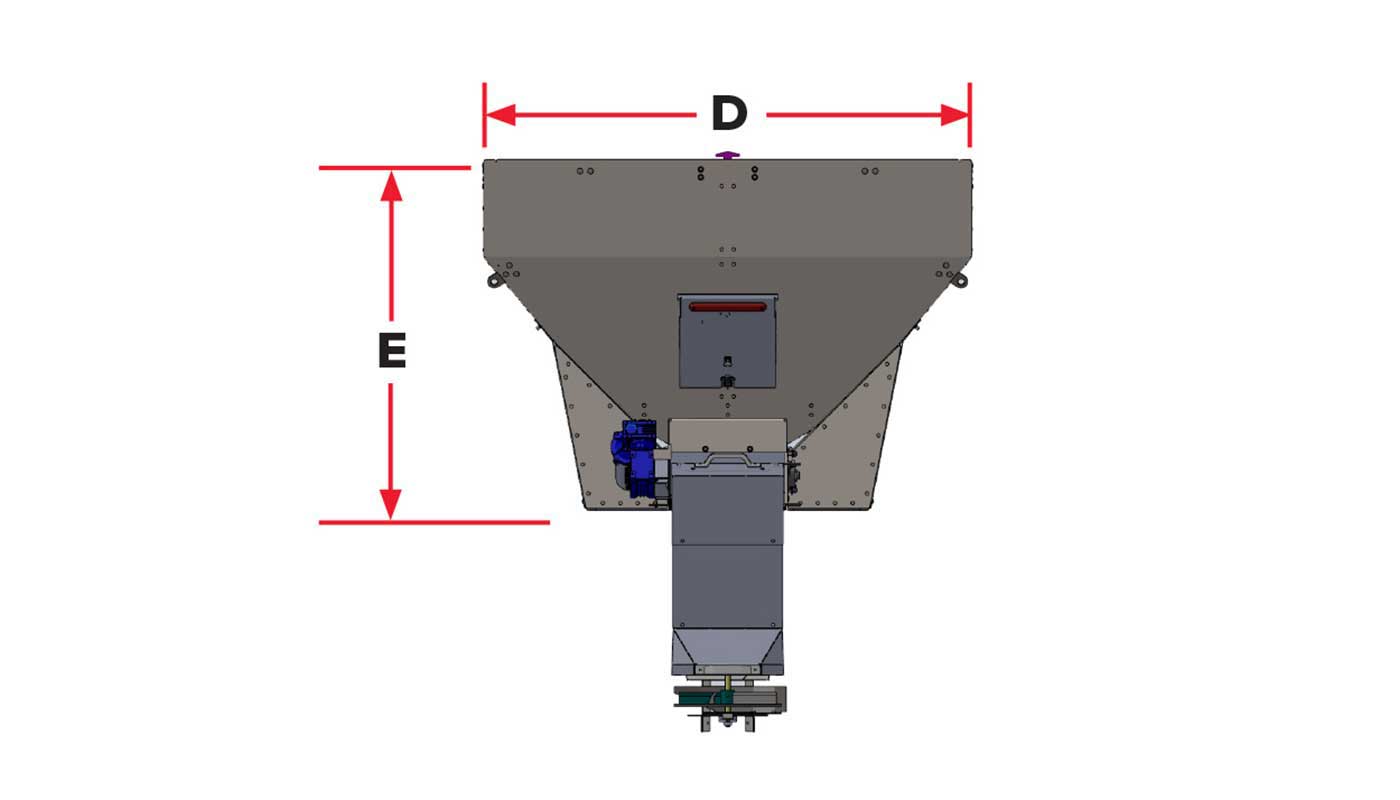

| Width of Hopper Opening (D) | 50" | 50" | 50" | 50" | 70" | 70" | 70" | 70" | 70" | 70" |
| Height of Hopper w/o Chute (E) | 32" | 32" | 35.75" | 35.75" | 41" | 41" | 43.75" | 43.75" | 50.50" | 50.50" |
| Material Delivery Dimensions | 16" Wide | 6" Diameter | 16" Wide | 6" Diameter | 16" Wide | 6" Diameter | 16" Wide | 6" Diameter | 16" Wide | 6" Diameter |

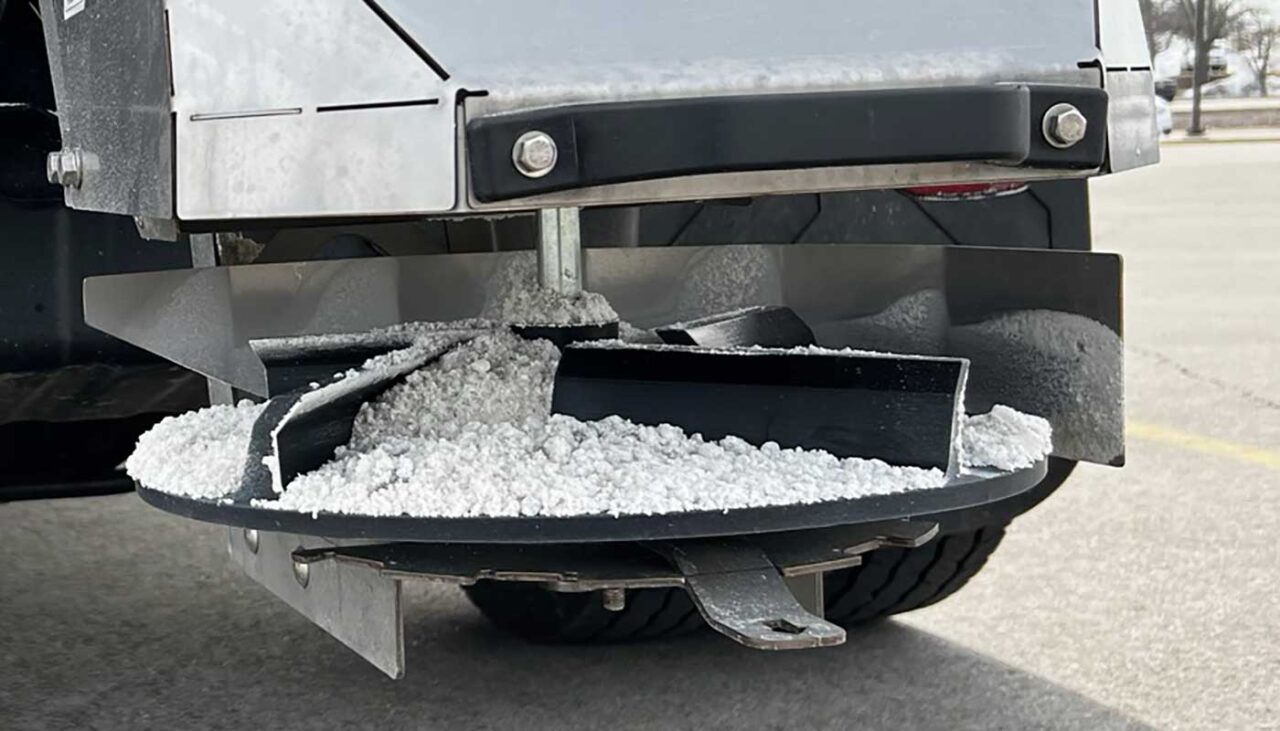

| Spinner Size | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter | 16" Diameter |
| Specification | 89510 | 86410 | 89520 | 86420 | 89530 | 86430 | 89540 | 86440 | 89550 | 86450 |
|---|---|---|---|---|---|---|---|---|---|---|
| Smart Model Number | S150C (Chain) | S150A (Auger) | S220C (Chain) | S220A (Auger) | S300C (Chain) | S300A (Auger) | S400C (Chain) | S400A (Auger) | S500C (Chain) | S500A (Auger) |
| Vehicle Compatibility | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | ¾ or 1-Ton Pickup, Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck | Dump Body, Flatbed, or 15,000+ GVWR Truck |
| Material Compatibility | Bulk Salt, Bulk Sand, 50/50 Mix, Pre-Wet & Liquid Brine | Bulk Salt, Pre-Wet & Liquid Brine | Bulk Salt, Bulk Sand, 50/50 Mix, Pre-Wet & Liquid Brine | Bulk Salt, Pre-Wet* & Liquid Brine | Bulk Salt, Bulk Sand, 50/50 Mix, Pre-Wet & Liquid Brine | Bulk Salt, Pre-Wet & Liquid Brine | Bulk Salt, Bulk Sand, 50/50 Mix, Pre-Wet & Liquid Brine | Bulk Salt, Pre-Wet & Liquid Brine | Bulk Salt, Bulk Sand, 50/50 Mix, Pre-Wet & Liquid Brine | Bulk Salt, Pre-Wet & Liquid Brine |
| Hopper Construction | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel | Riveted Stainless Steel |
| Factory Chute Configuration | Short | Short | Short | Short | Long | Long | Long | Long | Long | Long |
